Images

Listing Images

UICLITerraform

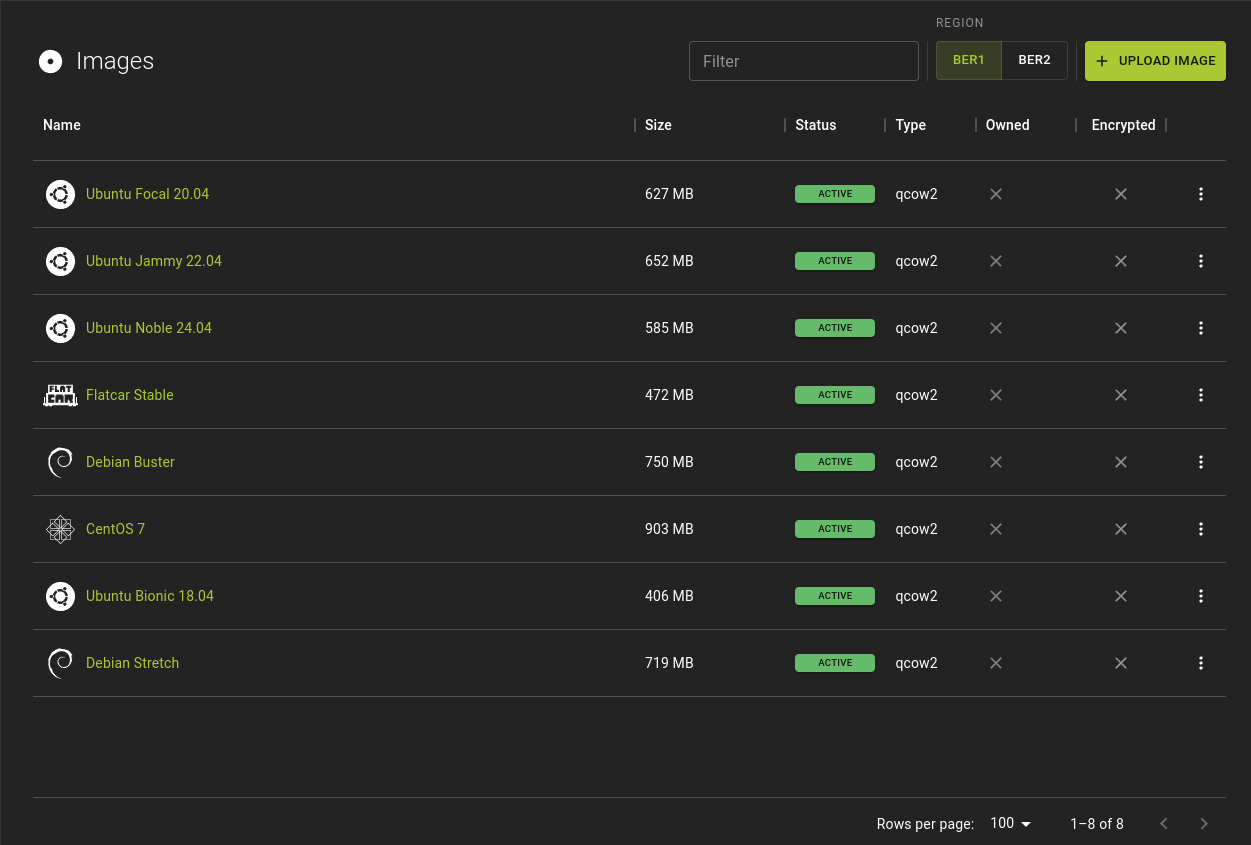

Image title To get a list of all images in a region you can click on the Images icon in the sidebar.

The list also allows you to quickly launch a server or create a volume from an image by using option.

Usage

openstack image list

Example Output

Creating an Image

Two methods create images:

Uploading an image file
Converting a volume snapshot to an image

Uploading an Image

UICLITerraform

Info

The UI does not support image uploads. Use the CLI instead.

Configure CLI

Usage

openstack image create  [--container-format <container-format>]
                        [--disk-format <disk-format>]
                        [--min-disk <disk-gb>] [--min-ram <ram-mb>]
                        [--file <file>] [--volume <volume>] [--force]
                        [--protected | --unprotected]
                        [--public | --private] [--property <key=value>]
                        [--tag <tag>] [--project <project>]
                        [--project-domain <project-domain>]
                        <image-name>

<container-format>: Image container format; default: bare
<disk-format>: Image disk format; default: raw
<disk-gb>: Minimum disk size needed to boot image, in GB
<ram-mb>: Minimum RAM size needed to boot image, in MB
<file>: Path of local image file to be uploaded
--protected | --unprotected: Protects / Unprotects image from deletion
--public | --private: Controls whether image will be visible to the public or not
<key=value>: Sets a property on the image; Can be repeated
<tag>: Sets a tag on the image; Can be repeated
<image-name>: Identifier (name only) of image to be uploaded

OpenStack Terraform Provider

Example

# Terraform Provider configuration

terraform {
  required_providers {
    openstack = {
      source  = "terraform-provider-openstack/openstack"
    }
  }
}

# Image configuration

resource "openstack_images_image_v2" "ubuntu-orcular" {
  name             = "Ubuntu Oracular Oriole 24.10"
  image_source_url = "https://cloud-images.ubuntu.com/oracular/current/oracular-server-cloudimg-amd64.img"
  container_format = "bare"
  disk_format      = "qcow2"
}

Boot from this image using UEFI firmware

To boot your image with UEFI firmware instead of the default BIOS firmware, set these two properties on the image:

hw_firmware_type=uefi
hw_machine_type=q35

You can set these either while creating the image or later. The image will now always boot in UEFI mode.

UICLITerraform

Info

The UI does not support image uploads. Use the CLI instead.

Configure CLI

Options to add when creating the image:

openstack image create --property hw_firmware_type=uefi
                       --property hw_machine_type=q35
                       ... your other arguments ...

Command to add the properties to an existing image:

openstack image set --property hw_firmware_type=uefi
                    --property hw_machine_type=q35
                <image-id>

OpenStack Terraform Provider

Example

# Terraform Provider configuration

terraform {
  required_providers {
    openstack = {
      source  = "terraform-provider-openstack/openstack"
    }
  }
}

# Image configuration

resource "openstack_images_image_v2" "ubuntu-orcular" {
  name             = "Ubuntu Oracular Oriole 24.10"
  image_source_url = "https://cloud-images.ubuntu.com/oracular/current/oracular-server-cloudimg-amd64.img"
  container_format = "bare"
  disk_format      = "qcow2"

  properties = {
    hw_firmware_type = "uefi"
    hw_machine_type  = "q35"
  }
}

Converting a Volume

Info

The source volume must be in status AVAILABLE and not IN USE. Force the operation if this is not the case, but expect failures or a corrupted resulting image.

UICLITerraform

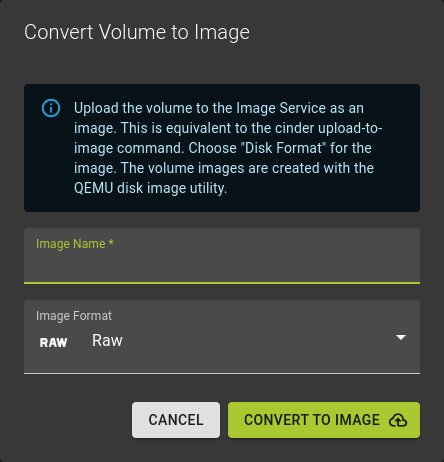

Convert to image and upload To convert a volume to an image you can

Use the menu in the volumes list and select the Upload to image option
Use the Upload as image option on a volumes detail page

In the emerging dialog

Name the image
Select the format of the image
Click Convert to Image

This operation will entail a series of status changes on the source volume.

Once the conversion is complete you may want to modify the resulting image further. E.g. if you need additional metadata or want to modify any properties.

Configure CLI

Usage

openstack image create --volume <volume> [--force]
                        [--protected | --unprotected]
                        [--public | --private]
                        [--property <key=value>]
                        [--tag <tag>]
                        <image-name>

<volume>: Volume to be used for conversion
--force: Performs the conversion regardless of the state of the source volume
--protected | --unprotected: Protects / Unprotects image from deletion
--public | --private: Controls whether image will be visible to the public or not
<key=value>: Sets a property on the image; Can be repeated
<tag>: Sets a tag on the image; Can be repeated
<image-name>: Identifier (name only) of image to be uploaded

OpenStack Terraform Provider

View and modify an Image

UICLITerraform

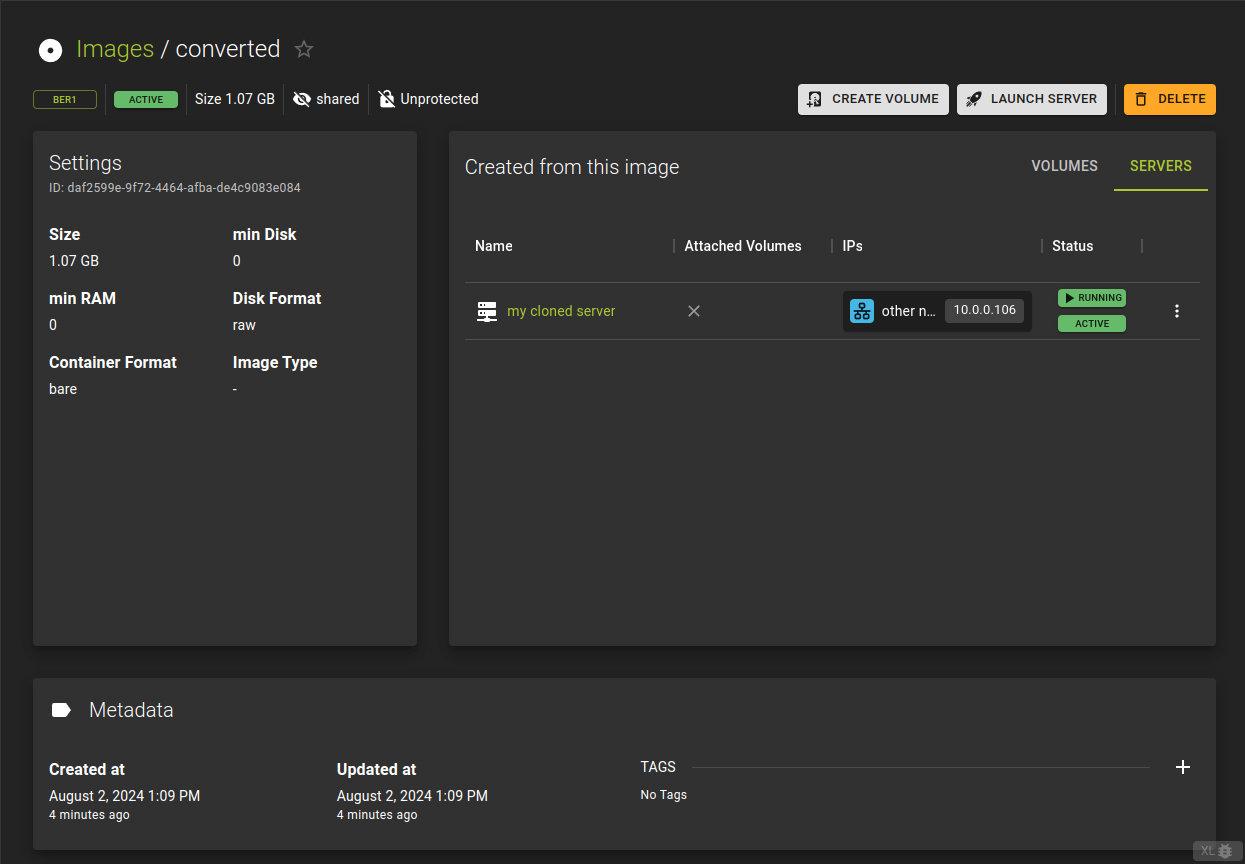

Image Details

You can access the details page of an image by

- Clicking the name of an image on the image list.
- Following a link to the image from where it is in use. E.g. on a servers storage details.

The image details show you all properties of an image and provide you with lists of

- [Servers](../compute/servers.md) created from the image
- [Volumes](volumes.md) created from the image

Configure CLI

Show image details

Usage

openstack image show <image>

<image>: Identifier of image to show

Update image

Usage

openstack image set
    [--name <name>]
    [--min-disk <disk-gb>]
    [--min-ram <ram-mb>]
    [--container-format <container-format>]
    [--disk-format <disk-format>]
    [--protected | --unprotected]
    [--public | --private | --community | --shared]
    [--property <key=value>]
    [--tag <tag>]
    [--architecture <architecture>]
    [--instance-id <instance-id>]
    [--kernel-id <kernel-id>]
    [--os-distro <os-distro>]
    [--os-version <os-version>]
    [--ramdisk-id <ramdisk-id>]
    [--deactivate | --activate]
    [--hidden | --unhidden]
    <image>

--name <name>: New image name
--min-disk <disk-gb>: Minimum disk size needed to boot image, in gigabytes
--min-ram <ram-mb>: Minimum RAM size needed to boot image, in megabytes
--container-format <container-format>: Image container format. The supported options are: ami, ari, aki, bare, docker, ova, ovf
--disk-format <disk-format>: Image disk format. The supported options are: ami, ari, aki, vhd, vmdk, raw, qcow2, vhdx, vdi, iso, ploop
--protected: Prevent image from being deleted
--unprotected: Allow image to be deleted (default)
--public: Image is accessible and visible to all users
--private: Image is only accessible by the owner (default until –os-image-api-version 2.5)
--community: Image is accessible by all users but does not appear in the default image list of any user except the owner (requires –os-image-api-version 2.5 or later)
--shared: Image is only accessible by the owner and image members (requires –os-image-api-version 2.5 or later) (default since –os-image-api-version 2.5)
--property <key=value>: Set a property on this image (repeat option to set multiple properties)
--tag <tag>: Set a tag on this image (repeat option to set multiple tags)
--architecture <architecture>: Operating system architecture
--instance-id <instance-id>: ID of server instance used to create this image
--kernel-id <kernel-id>: ID of kernel image used to boot this disk image
--os-distro <os-distro>: Operating system distribution name
--os-version <os-version>: Operating system distribution version
--ramdisk-id <ramdisk-id>: ID of ramdisk image used to boot this disk image
--deactivate: Deactivate the image
--activate: Activate the image
--accept: Accept the image membership for either the project indicated by ‘–project’, if provided, or the current user’s project
--reject: Reject the image membership for either the project indicated by ‘–project’, if provided, or the current user’s project
--pending: Reset the image membership to ‘pending’
--hidden: Hide the image
--unhidden: Unhide the image
<image>: Image to modify (name or ID)

OpenStack Terraform Provider

Deleting an Image

Restrictions apply

You can delete images you own. Our images are not eligible for deletion.
The image must be in state AVAILABLE to delete it.

UICLITerraform

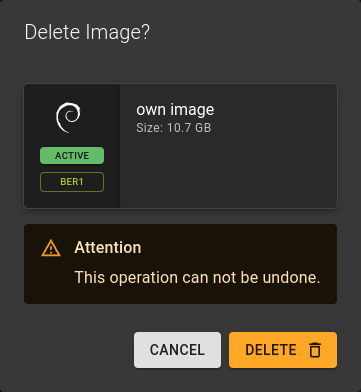

Delete Image

Images can be deleted

From the list of images using the option at the end of each entry
From images detail page sing the Delete button in the titlebar

The option to delete will only be displayed for images that you own and are in a valid state.

Configure CLI

Usage

    openstack image delete <image>

<image>: Identifier of image to delete

OpenStack Terraform Provider

States

ACTIVEThe image is active and ready for consumption in the Image service.

QUEUEDThe Image service reserved an image ID for the image in the catalog but did not yet upload any image data.

SAVINGThe Image service is in the process of saving the raw data for the image into the backing store.

KILLEDAn image data upload error occurred.

DELETEDThe Image service retains information about the image but the image is no longer available for use.

PENDING_DELETESimilar to the deleted status. An image in this state is not recoverable.

DEACTIVATEDThe image data is not available for use.

UPLOADINGData has been staged as part of the interoperable image import process. It is not yet available for use.

IMPORTINGThe image data is being processed as part of the interoperable image import process, but is not yet available for use.
