SysEleven DBaaS

Authentication Requirements

For using the DBaaS API you need to have a Service Account with the necessary permissions. Refer to the Service Account Documentation for details on how to create a Service Account.

List Databases

DBaaS Sidebar To list your databases click on the Databases icon in the sidebar

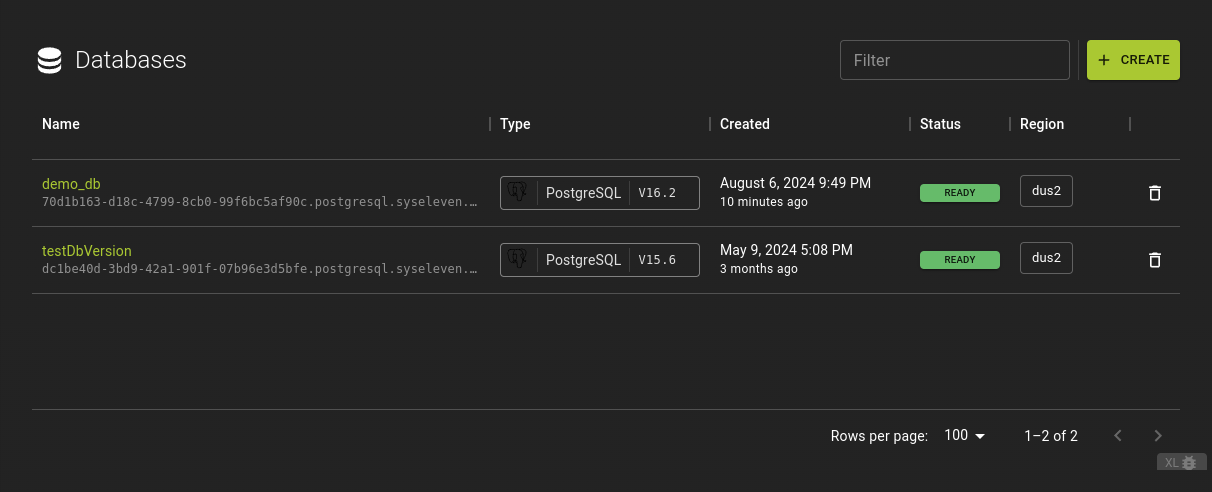

List Databases From the databases list you can:

  • Create new databases
  • Show the details of a database by clicking its name
  • Delete databases

DBaaS OpenAPI Spec

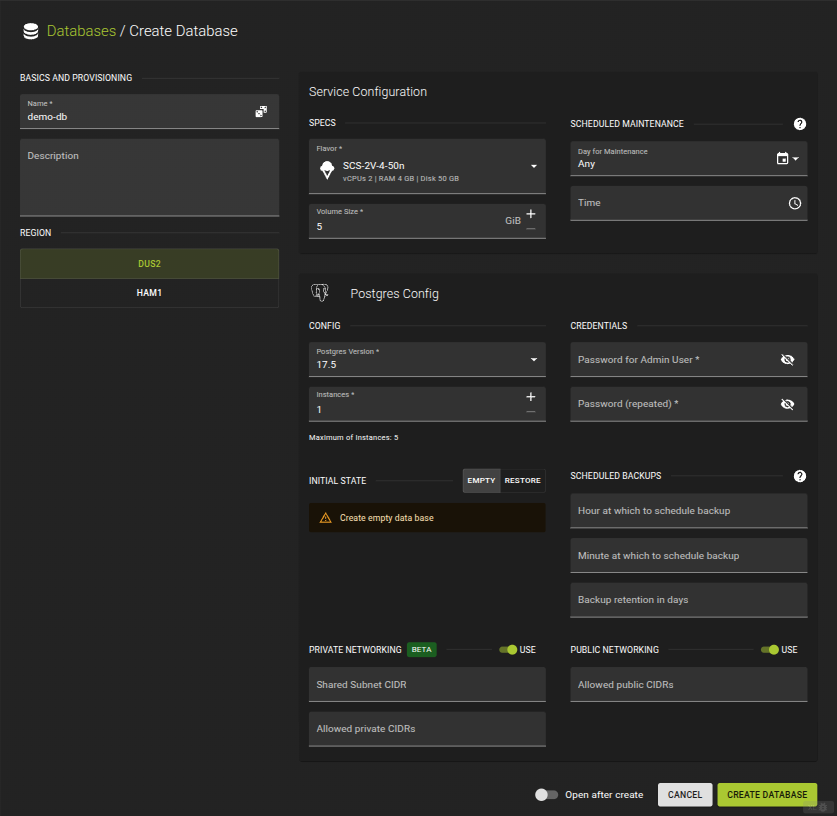

Create Database

Databases List To create a database click on the Create button in the title bar of the databases list.

Create Database Database creation requires you to enter properties for

  • Basics and region
  • The service configuration
  • The database configuration (specific to the type of database you are creating)

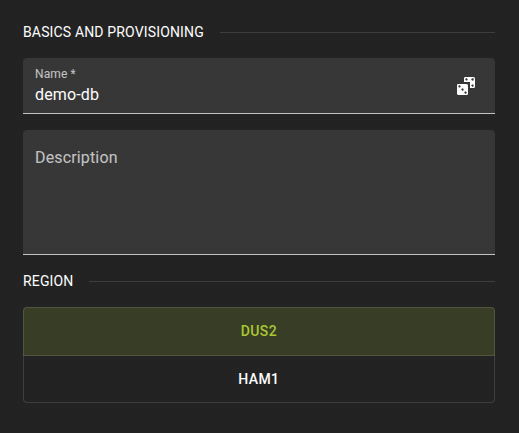

Basics and Provisioning

DBaaS Basics

Name
A name for your database
Description
Optional description of your database
Region
Selects the region where you want the database to be provisioned

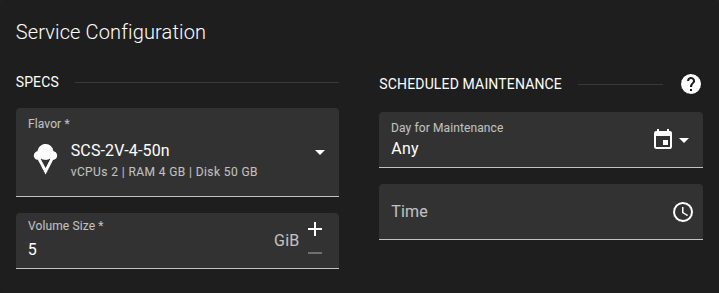

Service Configuration

Here you can define how the service can be reached and define a policy for scheduled maintenance

Service COnfiguration

Specs

Flavor
Selects the flavor of the virtual machines that will run your database
Volume Size
Sets the size of the volumes attached to the virtual machines.

Scheduled Maintenance

Here you can define the day and time at which to perform maintenance tasks.

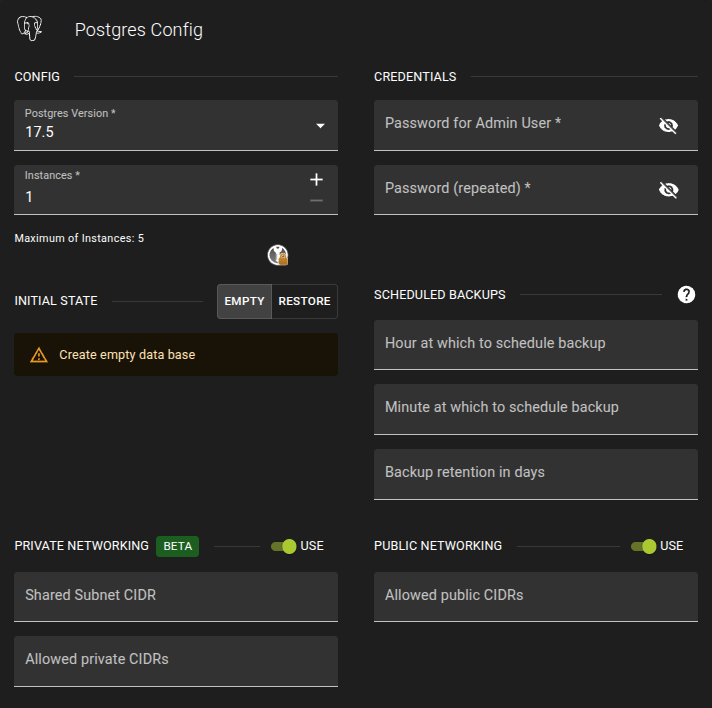

Database Configuration

Here you provide the configuration specific to the type of database you are creating.

Info

Currently we only support Prostgresql.

Database Configuration

Config

Prostgres Version
Selects the version of Prostgres
Instances
Sets number of instances you want

Credentials

Password
Defines the password to be used for the database

Initial State

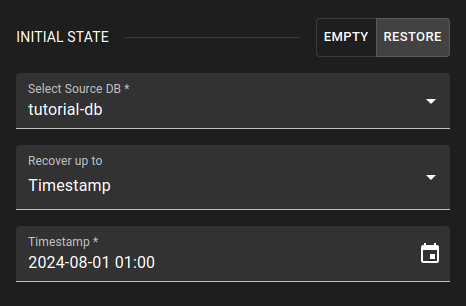

Database initial State Here you can chose what the initial state of your database should be.

  • Empty
    Provisions a fresh empty database.
  • RESTORE
    Initializes from a state of another database using
    • most recent state
    • timestamp
    • named restore proident
    • LSN
    • XID

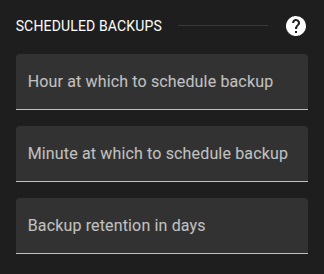

Scheduled Backups

Database Private Networking

Here you can control when and at which interval backups will be performed

Scheduled Backups can be configured to certain time and will be perfomed daily.

The duration of how long to keep the backups can be configured by setting the Backup Retention in Days. The Default value of Backup Retention is 7 days.

Any Recovery can be done by creating a new Database with the backups created for a database, which will be listed on creation under initial State as described above. Here you can control when and at which interval backups will be performed

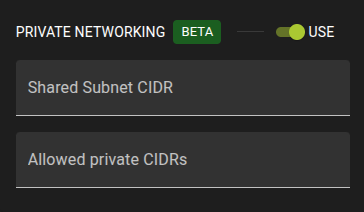

Private Networking

Enabling private networking for a database will result in a private network to be provisioned in openstack that you can connect to.

Database Private Networking

You can toggle private networking using the switch.

  • Shared subnet CIDR
    CIDR for the private subnet that will be created in openstack and shared with you.
  • Allowed Private CIDRs
    Here you can add CIDRs that are allowed to access the database over the private network

Public Networking

Database Public Networking

You can toggle public networking using the switch

  • Allowed Public CIDRs
    Here you can add CIDRs that are allowed to access the database over the public network

DBaaS OpenAPI Spec

DBaaS Terraform Provider Example:

# Terraform Provider configuration

terraform {
  required_providers {
    sys11dbaas = {
      source = "syseleven/sys11dbaas"
      version = "0.2.0"
    }
  }
}

# DBaaS configuration

provider "sys11dbaas" {
  api_key      = "#API_KEY"
  project      = "#PROJECT_ID"
  organization = "#ORG_ID"
}

resource "sys11dbaas_database" "postgresql" {
  name = "example-postgresql-changed-name"
  description = "Add optional Description here"
  application_config = {
    instances = 1
    type      = "postgresql"
    version   = 16.2
    password  = "veryS3cretPassword"
  }
  service_config = {
    disksize = 25
    flavor   = "m2c.small"
    region   = "dus2"
  }
}

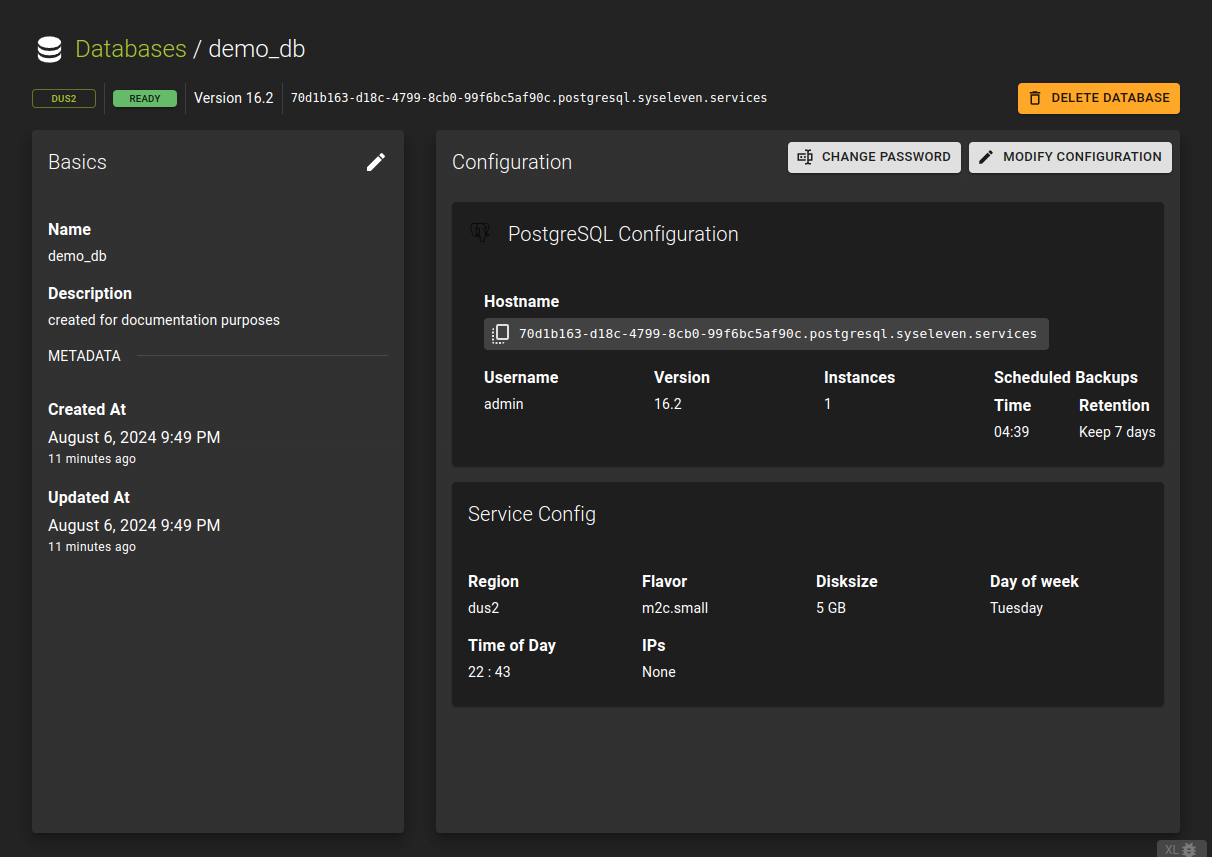

Inspect and Modify Database

Database Details To view the details and manage a database you can click on the name of the database in the databases list.

Here you can perform various task

  • Make changes to the service and rename it
  • Modify the database configuration
  • Change the password
  • Delete the database

The options here can vary depending on the type of database.

DBaaS OpenAPI Spec

DBaaS Terraform Provider Example:

terraform state list

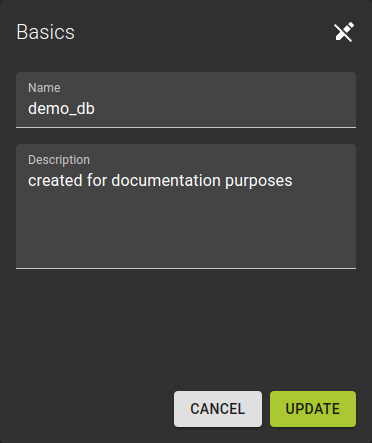

Modify Name and Description

Modify Name and Description

Navigate to the details page of your database by clicking on its name in the databases list. Enter edit mode by clicking the icon.

  • Provide a Name and Description
  • Click Update to save your changes

DBaaS OpenAPI Spec

DBaaS Terraform Provider Example:

# Terraform Provider configuration

terraform {
  required_providers {
    sys11dbaas = {
      source = "syseleven/sys11dbaas"
      version = "0.2.0"
    }
  }
}

provider "sys11dbaas" {
  api_key      = "#API_KEY"
  project      = "#PROJECT_ID"
  organization = "#ORG_ID"
}

resource "sys11dbaas_database" "postgresql" {
  name = "example-postgresql-changed-name"
  description = "Add optional Description here"
  application_config = {
    instances = 1
    type      = "postgresql"
    version   = 16.2
    password  = "veryS3cretPassword"
  }
  service_config = {
    disksize = 25
    flavor   = "m2c.small"
    region   = "dus2"
  }
}

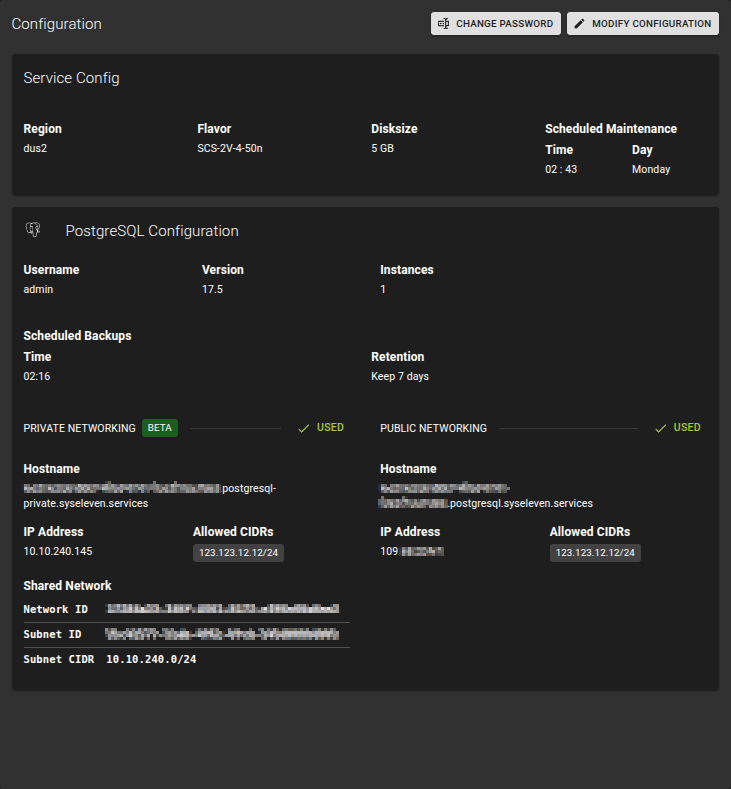

Modify Database or Service Configuration

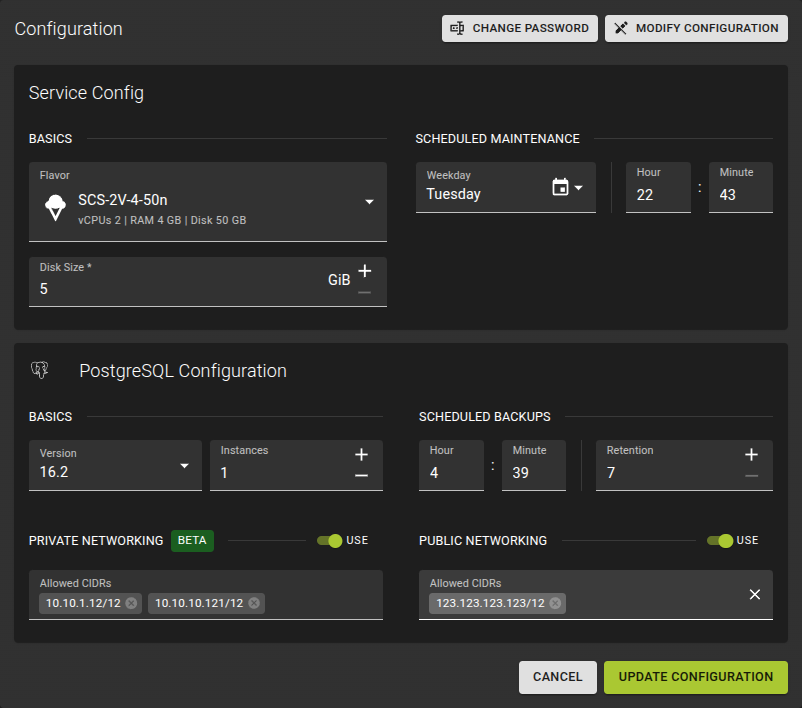

Modify Database Config Databases can be configured by choosing the database you want to edit and click Modify configuration .

You can change the Configuration for

  • Scheduled Backups
  • Maintenance Windows
  • Basics (Flavors and Disk Size)
  • and the AllowList for IPs

DBaaS OpenAPI Spec

DBaaS Terraform Provider Example:

# Terraform Provider configuration

terraform {
  required_providers {
    sys11dbaas = {
      source = "syseleven/sys11dbaas"
      version = "0.2.0"
    }
  }
}
provider "sys11dbaas" {
  api_key      = "#API_KEY"
  project      = "#PROJECT_ID"
  organization = "#ORG_ID"
}
resource "sys11dbaas_database" "postgresql" {
  name = "example-postgresql"
  description = "Optional Description"
  application_config = { #modify any entry on here and apply the changes
    instances = 1
    type      = "postgresql"
    version   = 16.2
    password  = "veryS3cretPassword"
  }
  service_config = {
    disksize = 25
    flavor   = "m2c.small"
    region   = "dus2"
  }
}

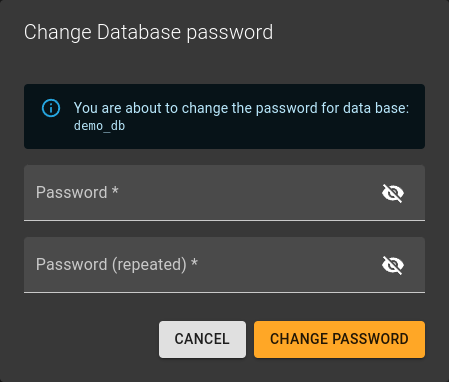

Change Database Password

Database Details To change the password of your database

  • Navigate to the details page of your database.
  • Click on the Change Password button in the title of the Configuration card.

Modify Database Config

In the emerging dialog

  • Provide a new password and repeat it
  • Confirm the operation by clicking Change Password

DBaaS OpenAPI Spec

DBaaS Terraform Provider Example:

# Terraform Provider configuration

terraform {
  required_providers {
    sys11dbaas = {
      source = "syseleven/sys11dbaas"
      version = "0.2.0"
    }
  }
}
provider "sys11dbaas" {
  api_key      = "#API_KEY"
  project      = "#PROJECT_ID"
  organization = "#ORG_ID"
}
resource "sys11dbaas_database" "postgresql" {
  name = "example-postgresql"
  description = "Optional Description"
  application_config = { #modify any entry on here and apply the changes
    instances = 1
    type      = "postgresql"
    version   = 16.2
    password  = "ChangeVeryS3cretPassword" #here to change
  }
  service_config = {
    disksize = 25
    flavor   = "m2c.small"
    region   = "dus2"
  }
}

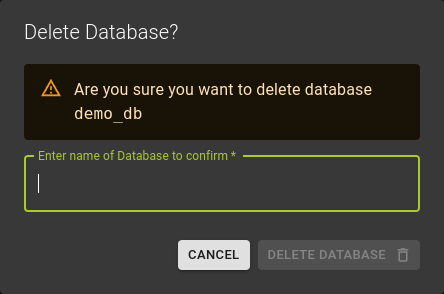

Delete Database

Delete Database

To delete a database you can

  • either use the option at the end of each entry on the databases list
  • or use the Delete Database button on the database detail page

In the emerging dialog confirm the deletion by

  • Entering the name of the database you want to delete
  • Clicking the Delete Database

DBaaS OpenAPI Spec

DBaaS Terraform Provider Example:

terraform destroy
