SysEleven OpenStack Cloud - Servers 95%
Concepts
The OpenStack Compute service (Nova) is the primary engine for deploying and managing virtual machines within an OpenStack cloud environment. It provides a robust API that allows users to launch, manage, and scale instances, while interacting with underlying resources like storage, networking, and hypervisors. Nova works in conjunction with other OpenStack services to ensure seamless orchestration of compute resources, supporting both simple and complex cloud workloads. In terms of Nova, a server can be defined as a virtual machine (VM) instance, a physical machine, or a container.
Encryption at rest
By default all data stored in a VM (on ephemeral and on volume storage) is encrypted at rest, which means the data is encrypted before writing it to a physical device. When storage device is lost or damaged your data is protected against unauthorized access.
Local storage
In case of a local storage VM flavors, data stored on the VM's ephemeral local storage is not encrypted. In this case only data stored on attached Ceph volume is encrypted at rest.

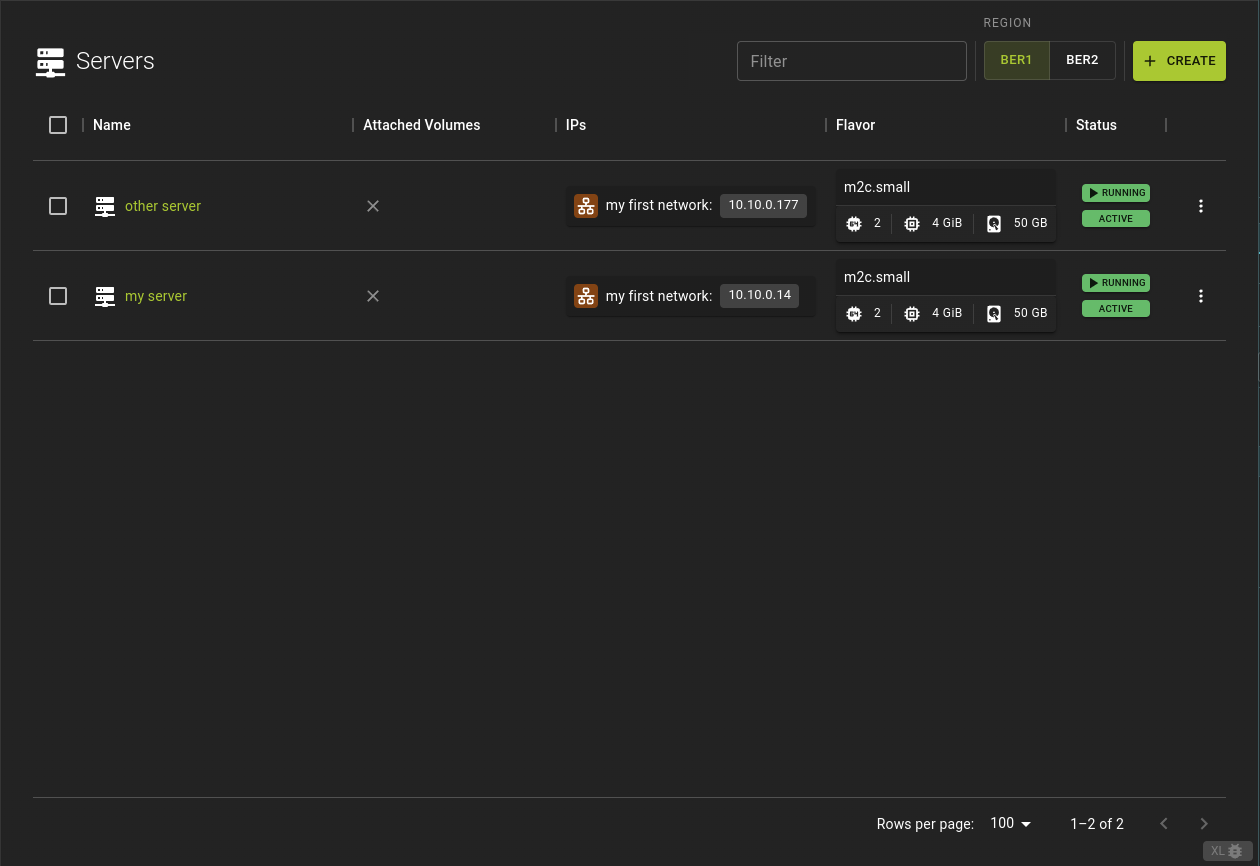

List Servers
To obtain a list of all servers in a specified region, click on the Servers icon in the sidebar.
To change the region, please use the region selector located above the list. DUS2HAM1.
You can sort and filter the list to find the servers you want.
Selecting the name or ID of a server will direct you to the server details page.

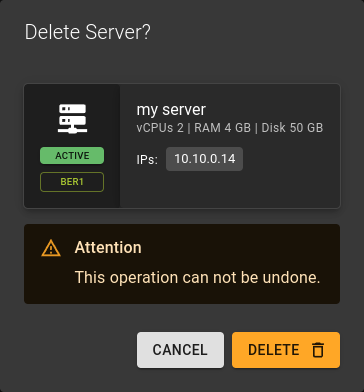

Additionally, a range of actions can be initiated for a server by selecting the option located at the end of a table row. This will display a menu listing the most commonly used actions for a server.
Usage
openstack server list
Output
+--------------------------------------+--------------+--------+-------------------------------------------+-------------------------+----------+
| ID | Name | Status | Networks | Image | Flavor |
+--------------------------------------+--------------+--------+-------------------------------------------+-------------------------+----------+
| 9cdf2a81-0271-4b6f-aa3e-61asdas51dsa | lampserver | ACTIVE | lampserver-net=10.0.0.14, 185.56.132.xxx | Ubuntu Server 22.04 LTS | m1c.tiny |
+--------------------------------------+--------------+--------+-------------------------------------------+-------------------------+----------+
| 18e28c13-999e-4389-92ce-asd1das1das5 | lampserver | ACTIVE | lampserver-net=10.0.0.11, 195.192.128.xxx | Ubuntu Server 22.04 LTS | m1c.tiny |
+--------------------------------------+--------------+--------+-------------------------------------------+-------------------------+----------+
Creating a Server
Creating servers in OpenStack involves launching virtual instances from predefined images, selecting flavors to determine compute resources, and configuring storage and networking settings for optimal performance and connectivity.
Prerequisites
- To create a server, you need to choose a network. If you don't have a suitable network, the UI can take you to the network creation workflow if necessary.
- It is advisable to deploy an SSH key on the server. If you do not yet have an SSH key, create one now
To create a new server navigate to the server list and click the Create button in the title bar.

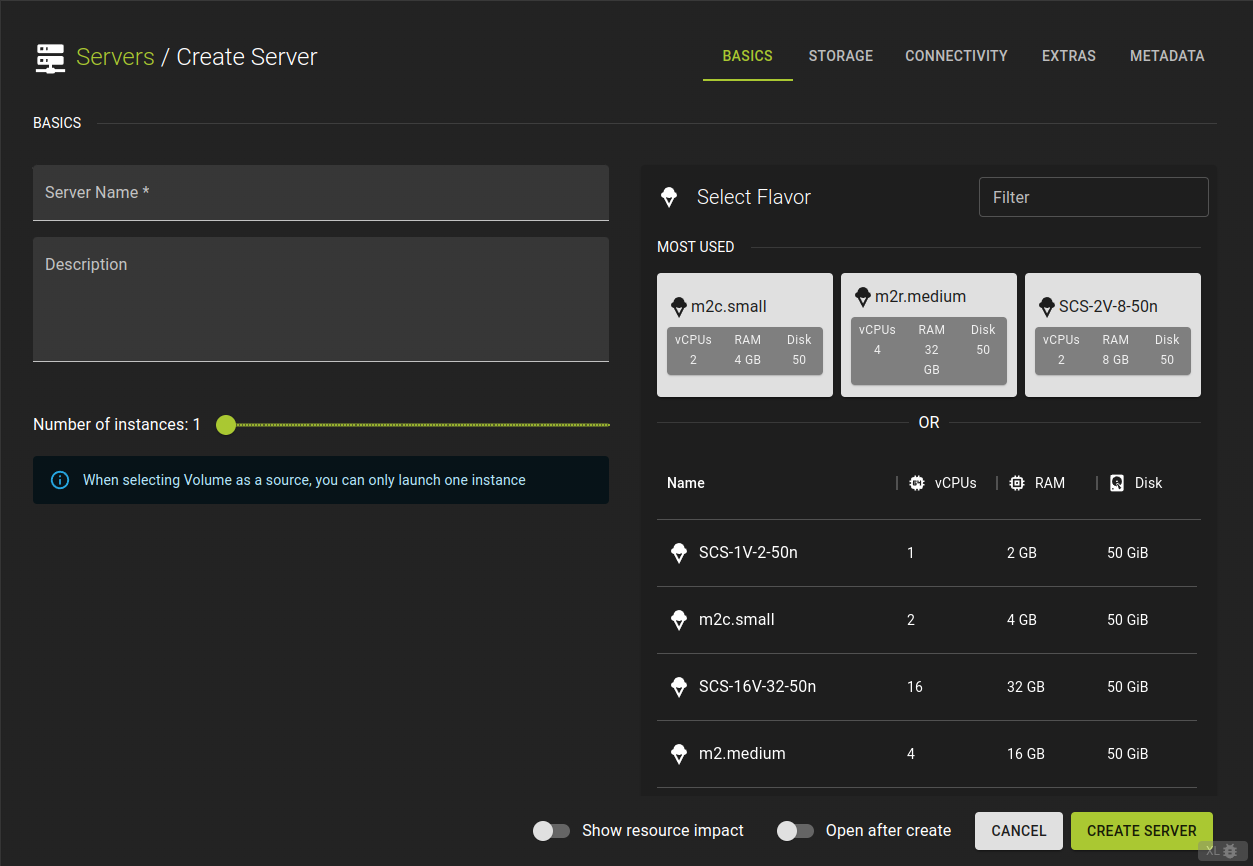

Basic Configuration
Provide a name and description for your server and select the flavor to be used.
Server Name- Give your server a friendly name
Description- Use this optional field to provide a description of the resource or to make any necessary notes.
Number of instances- Allows you to control how many instances of a server are created at once, using the same settings.
Select Flavor- Choose a flavour to set your server's specs.

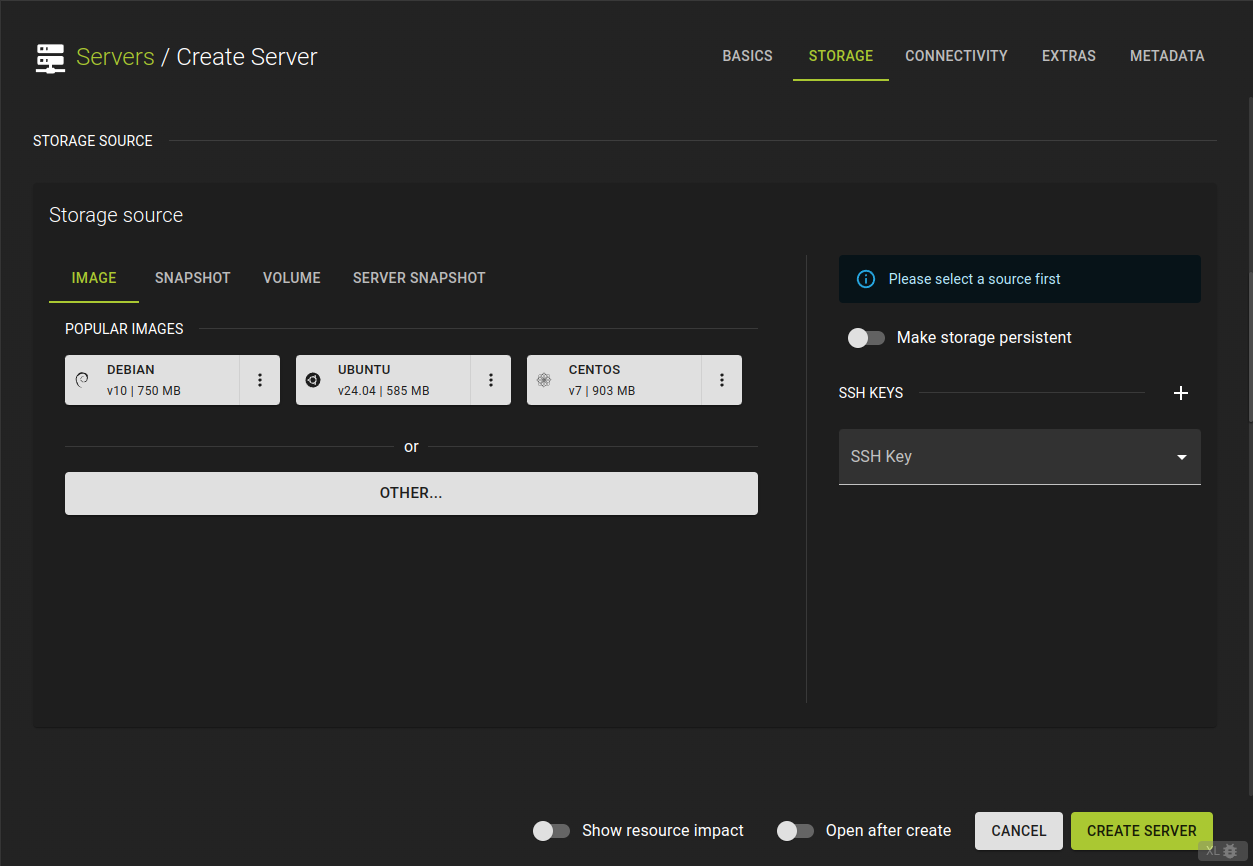

Storage Configuration
This section lets you pick the image your virtual server will boot from and set up the server's storage. You can choose from images, snapshots, existing volumes or server snapshots.
When configuring the storage you have the choice of either
- booting straight from the source
- or creating a volume from the selected source.
You can also select the volume type
If you want to deploy an ssh key on the server you can select it here

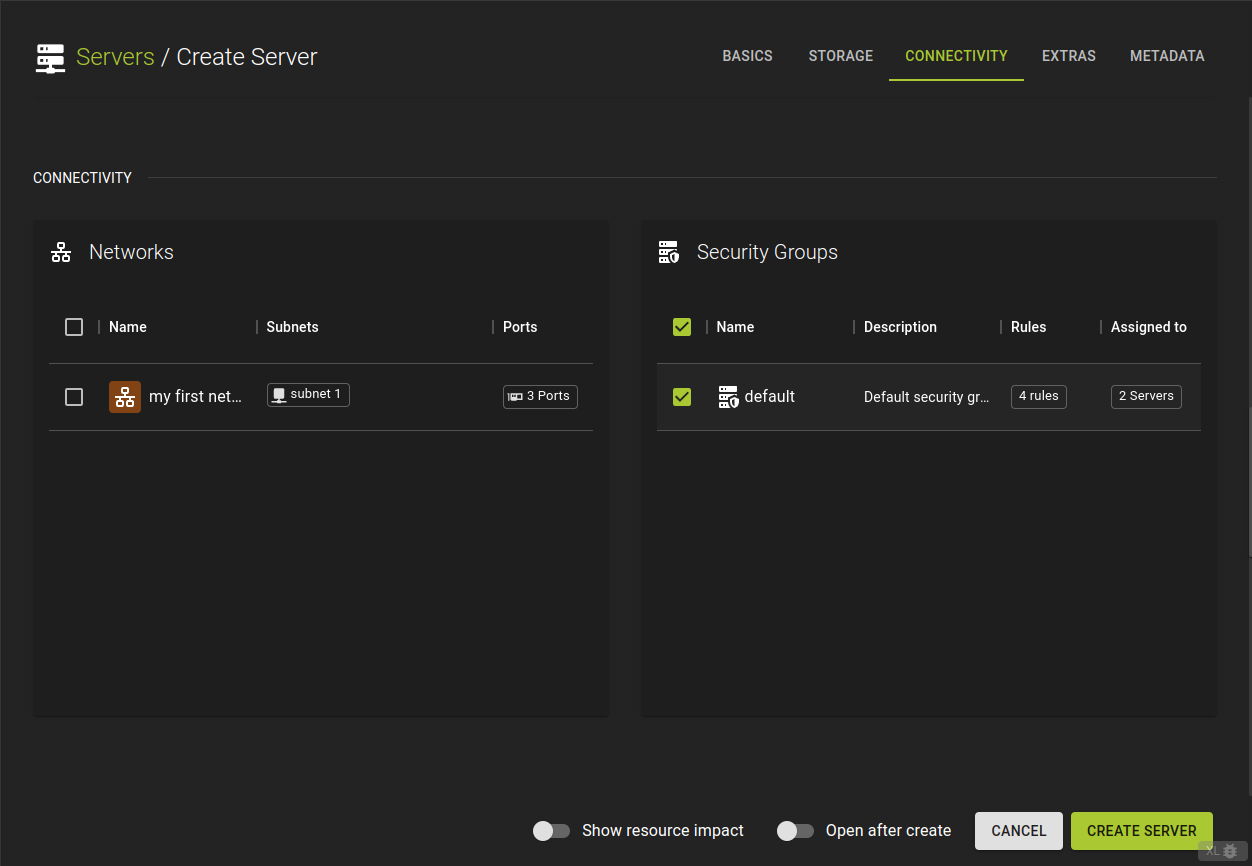

Network Configuration
Select the networks you want your server to be connected to. You can choose multiple networks. The server will have one network interface for each selected network.
You can also choose which security groups the server is in. The server must be in at least one group.
Learn more about creating security groups

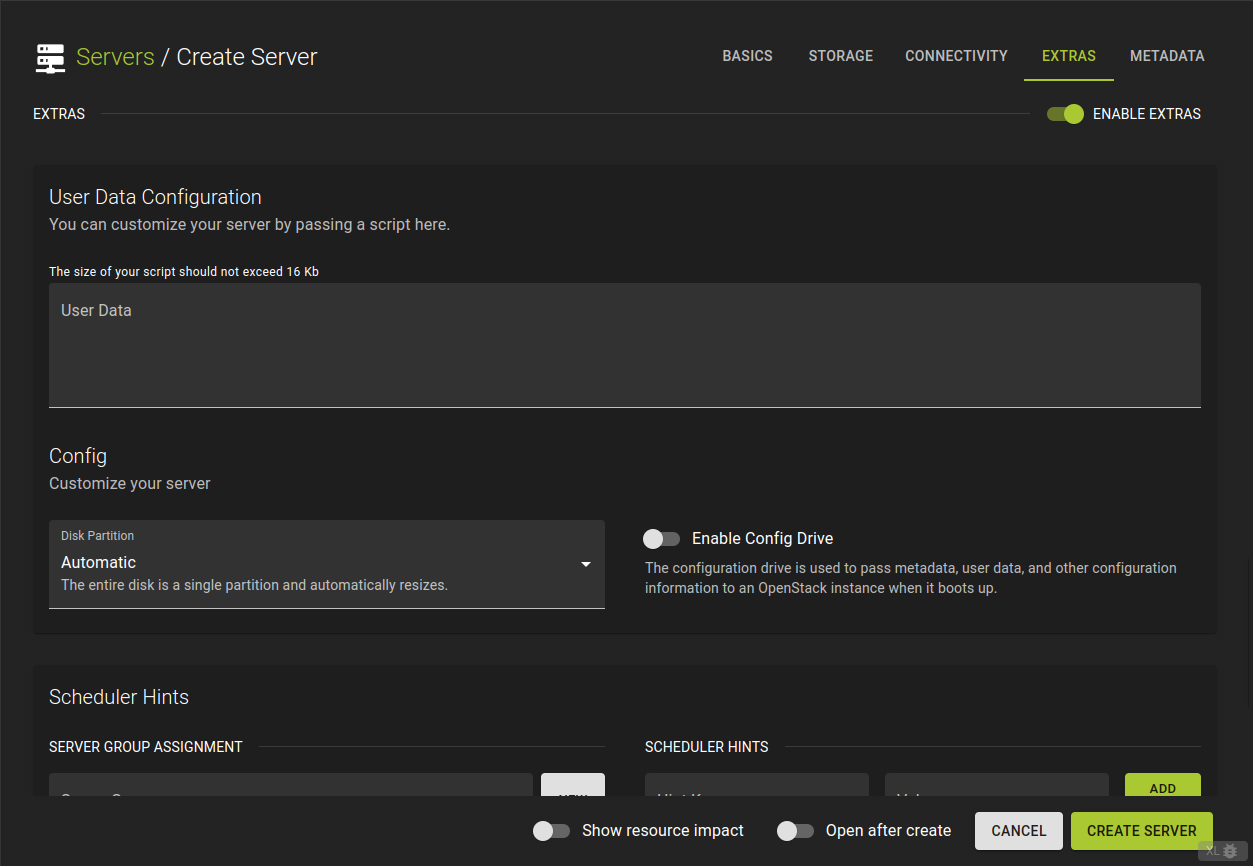

Extras and Meta Data
This section allows for further optional configuration of your server.
User Data- allows you to pass extra configuration details to a server when it’s launched. For example, you can add SSH keys or run initialization scripts to set up the server automatically during boot.
Disk Partition- allows you to control how the available storage space is organized and used by dividing it into separate sections.
Scheduler hints- Scheduler hints in OpenStack help guide the Nova scheduler to place servers based on specific criteria, like affinity (same host) or anti-affinity (different hosts), optimizing resource allocation during instance creation.
Finalize
Once you have finished setting up the sections above, click create server The configuration will be checked. Should your configuration be incomplete or not satisfiable you will be presented with appropriate error messages.Otherwise, the server will be created and ready to use soon.
You can choose to go to the detail page or the list of servers. Using the "Open after create" toggle button. Your server is ready when it reaches available state
Basic Creation
openstack server create --key-name simpleInstanceSSHKey
--image "Ubuntu Jammy 22.04 (2024-02-29)"
--flavor m2c.tiny
--nic net-id=<NetworkIdFromExistingNetwork>
simpleInstance
--key-name- Name of the SSH Key to be deployed on the server
--image- Identifier of image to be used as source
--flavor- Name of the flavor to be used for the server
--nic net-id- Identifier of a network that the server should be connected to. Please note that the network has to already exist and have at least one subnet configured.
Example
openstack server create --image "Ubuntu Jammy 22.04" --flavor m2c.tiny --nic net-id=83f6ab1c-a5c8-46dd-be2f-6ab0c5792954 simpleServer
Output
+-------------------------------------+------------------------------------------------------------------------------------------------------------------------------------------------------------+
| Field | Value |
+-------------------------------------+------------------------------------------------------------------------------------------------------------------------------------------------------------+
| OS-DCF:diskConfig | MANUAL |
| OS-EXT-AZ:availability_zone | None |
| OS-EXT-SRV-ATTR:host | None |
| OS-EXT-SRV-ATTR:hostname | simpleserver |
| OS-EXT-SRV-ATTR:hypervisor_hostname | None |
| OS-EXT-SRV-ATTR:instance_name | None |
| OS-EXT-SRV-ATTR:kernel_id | None |
| OS-EXT-SRV-ATTR:launch_index | None |
| OS-EXT-SRV-ATTR:ramdisk_id | None |
| OS-EXT-SRV-ATTR:reservation_id | None |
| OS-EXT-SRV-ATTR:root_device_name | None |
| OS-EXT-SRV-ATTR:user_data | None |
| OS-EXT-STS:power_state | N/A |
| OS-EXT-STS:task_state | scheduling |
| OS-EXT-STS:vm_state | building |
| OS-SRV-USG:launched_at | None |
| OS-SRV-USG:terminated_at | None |
| accessIPv4 | None |
| accessIPv6 | None |
| addresses | N/A |
| adminPass | et9rh6XXHe5R |
| config_drive | None |
| created | 2024-09-24T13:00:12Z |
| description | None |
| flavor | description=, disk='50', ephemeral='0', extra_specs.aggregate_instance_extra_specs:ceph='true', id='m2c.tiny', is_disabled=, is_public='True', location=, |
| | name='m2c.tiny', original_name='m2c.tiny', ram='2048', rxtx_factor=, swap='0', vcpus='1' |
| hostId | None |
| host_status | None |
| id | 3504a48e-f780-4aa1-a289-29e147e14c93 |
| image | Ubuntu Jammy 22.04 (a2f8706f-e885-40ce-b389-82130226d98e) |
| key_name | None |
| locked | None |
| locked_reason | None |
| name | simpleServer |
| pinned_availability_zone | None |
| progress | None |
| project_id | 7680106489c047efa65334c7b0b11fc6 |
| properties | None |
| security_groups | name='default' |
| server_groups | None |
| status | BUILD |
| tags | |
| trusted_image_certificates | None |
| updated | 2024-09-24T13:00:13Z |
| user_id | a066865e7eff46aaaf46c4a936a4fdde |
| volumes_attached | |
+-------------------------------------+------------------------------------------------------------------------------------------------------------------------------------------------------------+

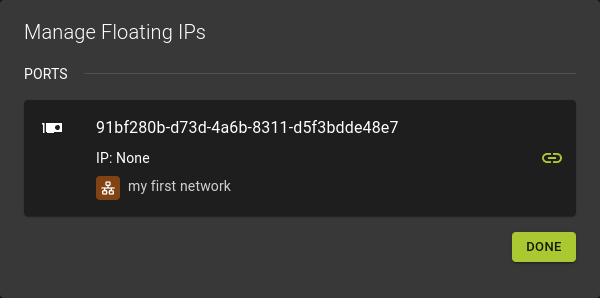

Adding a floating IP
You can associate a floating IP you have previously reserved using the command below.
openstack server add floating ip <InstanceId from above> <floatingIpFromAbove>
<InstanceId>- Identifier of the server
<FloatingIP>- IP-address you want to assign
Example
openstack server add floating ip 3504a48e-f780-4aa1-a289-29e147e14c93 109.68.225.193
Output
openstack server list
+--------------------------------------+---------------------------+--------+-----------------------------------------------------------+--------------------------+----------+
| ID | Name | Status | Networks | Image | Flavor |
+--------------------------------------+---------------------------+--------+-----------------------------------------------------------+--------------------------+----------+
| 3504a48e-f780-4aa1-a289-29e147e14c93 | simpleServer | ACTIVE | delme=10.0.0.229, 109.68.225.193 | Ubuntu Jammy 22.04 | m2c.tiny |
+--------------------------------------+---------------------------+--------+-----------------------------------------------------------+--------------------------+----------+
Assigning additional security groups
openstack server add security group <InstanceId> <SecurityGroup>
<InstanceId>- Identifier of the server
<SecurityGroup>- ID if the security group you want to assign
Example
openstack security group list
+--------------------------------------+---------------------+---------------------------------------------------------+----------------------------------+------+
| ID | Name | Description | Project | Tags |
+--------------------------------------+---------------------+---------------------------------------------------------+----------------------------------+------+
| 4a902c4b-13a4-4d31-862f-0b1e2da44e15 | default | Default security group | 7680106489c047efa65334c7b0b11fc6 | [] |
| 9d7dbe0a-bf20-41e1-a3fd-599f4c1662ee | example-sec-group | Contains security rules for the Kubernetes worker nodes | 7680106489c047efa65334c7b0b11fc6 | [] |
+--------------------------------------+---------------------+---------------------------------------------------------+----------------------------------+------+
openstack server add security group 3504a48e-f780-4aa1-a289-29e147e14c93 example-sec-group
+-------------------------------------+------------------------------------------------------------------------------------------------------------------------------------------------------------+
| Field | Value |
+-------------------------------------+------------------------------------------------------------------------------------------------------------------------------------------------------------+
| OS-DCF:diskConfig | MANUAL |
| OS-EXT-AZ:availability_zone | dus2 |
| OS-EXT-SRV-ATTR:host | None |
| OS-EXT-SRV-ATTR:hostname | simpleserver |
| OS-EXT-SRV-ATTR:hypervisor_hostname | None |
| OS-EXT-SRV-ATTR:instance_name | None |
| OS-EXT-SRV-ATTR:kernel_id | None |
| OS-EXT-SRV-ATTR:launch_index | None |
| OS-EXT-SRV-ATTR:ramdisk_id | None |
| OS-EXT-SRV-ATTR:reservation_id | None |
| OS-EXT-SRV-ATTR:root_device_name | None |
| OS-EXT-SRV-ATTR:user_data | None |
| OS-EXT-STS:power_state | Running |
| OS-EXT-STS:task_state | None |
| OS-EXT-STS:vm_state | active |
| OS-SRV-USG:launched_at | 2024-09-24T13:02:51.000000 |
| OS-SRV-USG:terminated_at | None |
| accessIPv4 | |
| accessIPv6 | |
| addresses | delme=10.0.0.229, 109.68.225.193 |
| config_drive | |
| created | 2024-09-24T13:00:12Z |
| description | None |
| flavor | description=, disk='50', ephemeral='0', extra_specs.aggregate_instance_extra_specs:ceph='true', id='m2c.tiny', is_disabled=, is_public='True', location=, |
| | name='m2c.tiny', original_name='m2c.tiny', ram='2048', rxtx_factor=, swap='0', vcpus='1' |
| hostId | 56d3ca49daef5dc539bc79c70ccbe055d190a34426d6325b3bd34f52 |
| host_status | None |
| id | 3504a48e-f780-4aa1-a289-29e147e14c93 |
| image | Ubuntu Jammy 22.04 (a2f8706f-e885-40ce-b389-82130226d98e) |
| key_name | None |
| locked | False |
| locked_reason | None |
| name | simpleServer |
| pinned_availability_zone | None |
| progress | 0 |
| project_id | 7680106489c047efa65334c7b0b11fc6 |
| properties | |
| security_groups | name='default' |
| | name='example-sec-group' |
| server_groups | None |
| status | ACTIVE |
| tags | |
| trusted_image_certificates | None |
| updated | 2024-09-24T13:02:51Z |
| user_id | a066865e7eff46aaaf46c4a936a4fdde |
| volumes_attached | |
+-------------------------------------+------------------------------------------------------------------------------------------------------------------------------------------------------------+
Boot using UEFI
To boot using UEFI, you need to use an image that has been prepared for the purpose. See the section about images for more information.
Example:
# Terraform Provider configuration
terraform {
required_providers {
openstack = {
source = "terraform-provider-openstack/openstack"
}
}
}
# Select latest OpenStack Ubuntu 24.04 Image
data "openstack_images_image_v2" "image" {
most_recent = true
visibility = "public"
properties = {
os_distro = "ubuntu"
os_version = "24.04"
}
}
# Upload SSH key (please change this to your local public key file)
resource "openstack_compute_keypair_v2" "ssh_key" {
name = "ssh-public-key"
public_key = file("~/.ssh/id_rsa.pub")
}
# Network configuration
data "openstack_networking_network_v2" "ext_net" {
name = "ext-net"
}
resource "openstack_networking_network_v2" "network" {
name = "net"
admin_state_up = "true"
}
resource "openstack_networking_subnet_v2" "network" {
name = "subnet"
network_id = openstack_networking_network_v2.network.id
cidr = "10.20.30.0/24"
ip_version = 4
enable_dhcp = "true"
dns_nameservers = ["1.1.1.1", "8.8.8.8"]
}
resource "openstack_networking_port_v2" "os_server_port" {
name = "os_server_port"
admin_state_up = "true"
network_id = openstack_networking_network_v2.network.id
security_group_ids = [openstack_networking_secgroup_v2.ssh_access_secgroup.id,
]
fixed_ip {
subnet_id = openstack_networking_subnet_v2.network.id
}
}
resource "openstack_networking_router_v2" "network" {
name = "router"
admin_state_up = "true"
external_network_id = data.openstack_networking_network_v2.ext_net.id
}
resource "openstack_networking_router_interface_v2" "network" {
depends_on = [openstack_networking_secgroup_v2.ssh_access_secgroup]
router_id = openstack_networking_router_v2.network.id
subnet_id = openstack_networking_subnet_v2.network.id
}
# Security Group for SSH access
resource "openstack_networking_secgroup_v2" "ssh_access_secgroup" {
name = "ssh_access_secgroup"
description = "Security group for ssh access"
}
resource "openstack_networking_secgroup_rule_v2" "ssh_rule" {
direction = "ingress"
ethertype = "IPv4"
protocol = "tcp"
port_range_min = 22
port_range_max = 22
remote_ip_prefix = "0.0.0.0/0"
security_group_id = openstack_networking_secgroup_v2.ssh_access_secgroup.id
}
# Create an OpenStack VM
resource "openstack_compute_instance_v2" "os_server" {
name = "server"
image_name = data.openstack_images_image_v2.image.name
flavor_name = "m1.small"
key_pair = openstack_compute_keypair_v2.ssh_key.name
network {
uuid = openstack_networking_network_v2.network.id
port = openstack_networking_port_v2.os_server_port.id
}
lifecycle {
create_before_destroy = true
ignore_changes = [flavor_name, image_name]
}
}
# Create a floating IP / public IP
resource "openstack_networking_floatingip_v2" "floatip_1" {
pool = "ext-net"
}
# Associate the floating IP
resource "openstack_networking_floatingip_associate_v2" "floatip_1" {
floating_ip = openstack_networking_floatingip_v2.floatip_1.address
port_id = openstack_networking_port_v2.os_server_port.id
}
View and Modify a Server

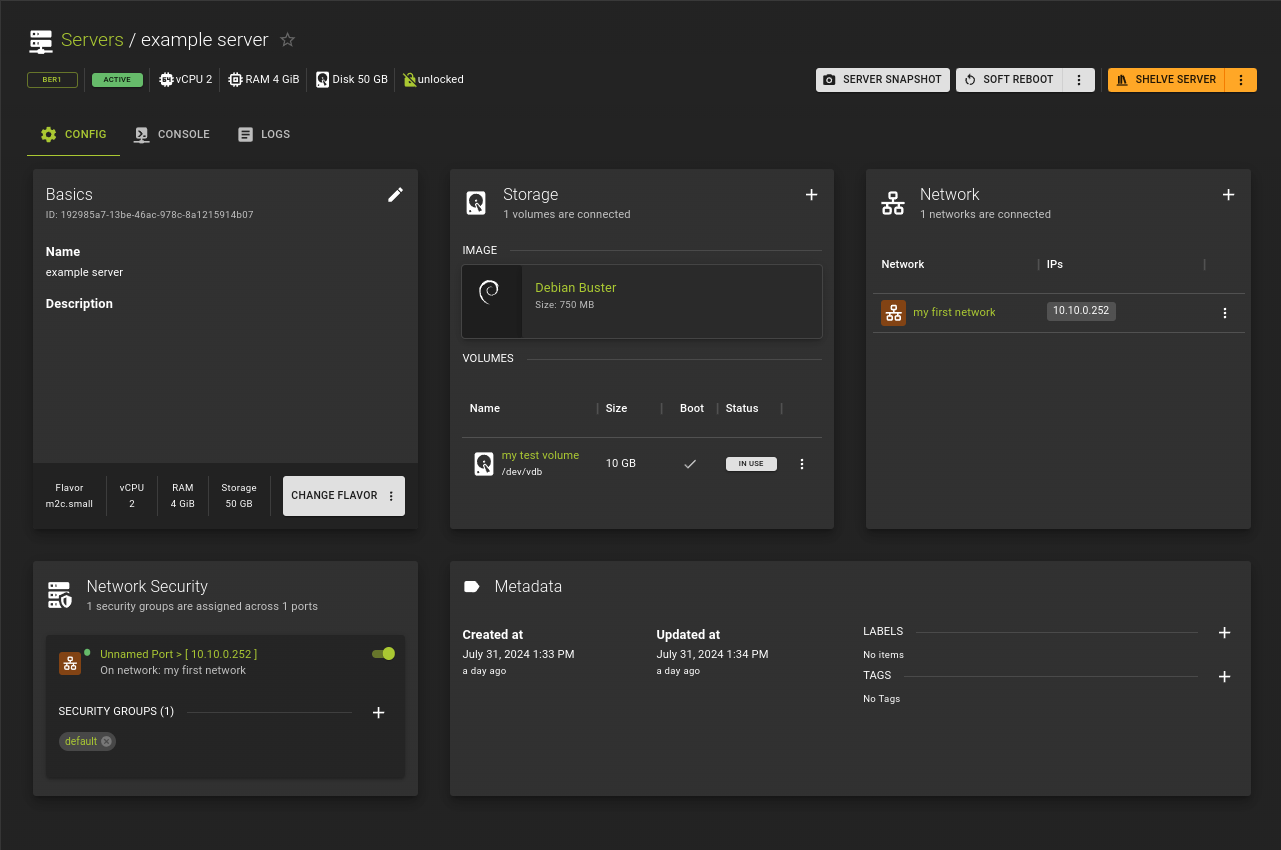

Click a server in the list or follow a link to see details.
The details page is structured with tabs for easy navigation.
Config
The information regarding the server is presented in cards that group related settings.

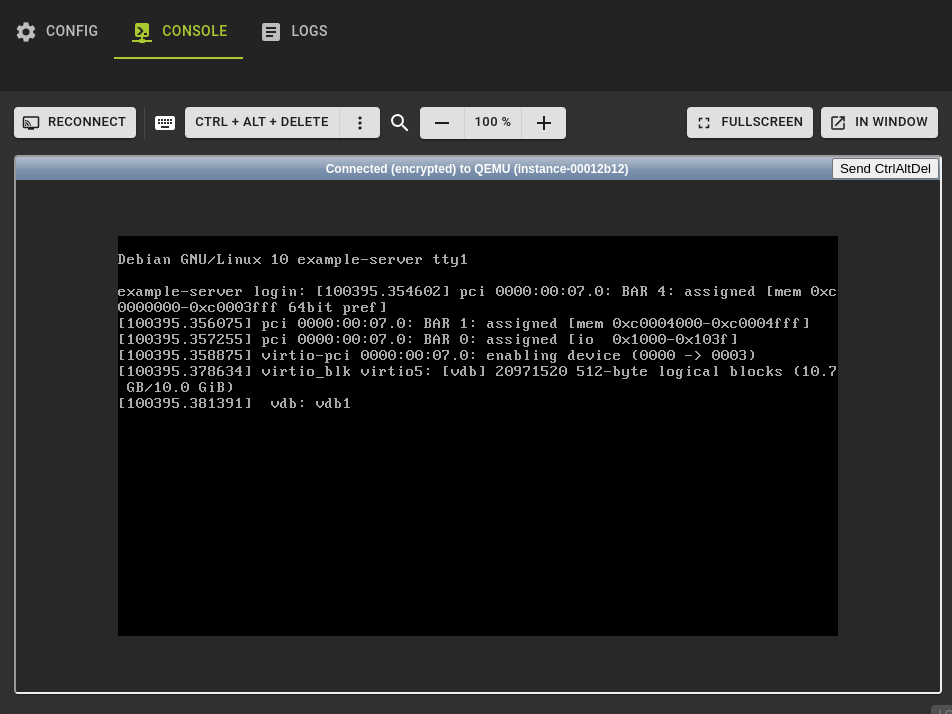

Console
Gives access to a remote console session

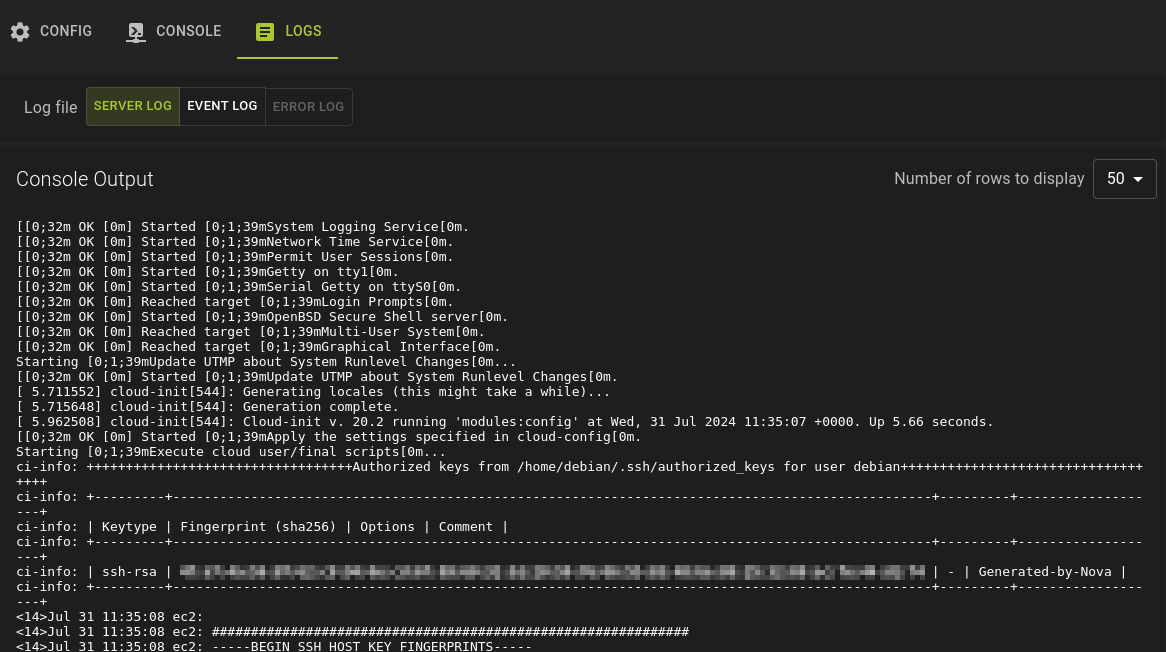

Logs
Access your servers logs here.
Config
The Config tab is the default tab and composed of cards that group similar settings

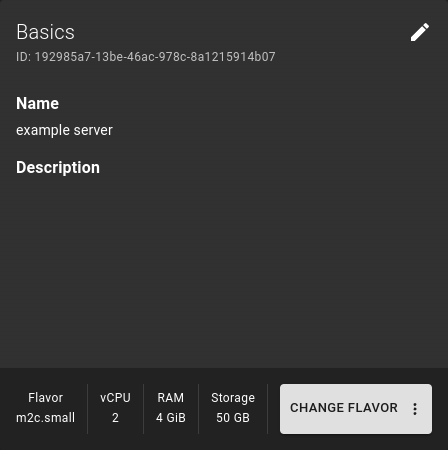

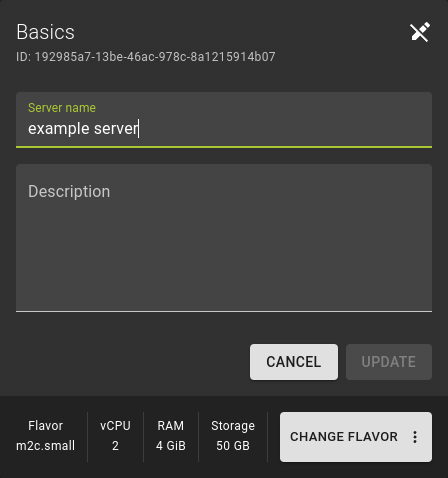

Basics Card

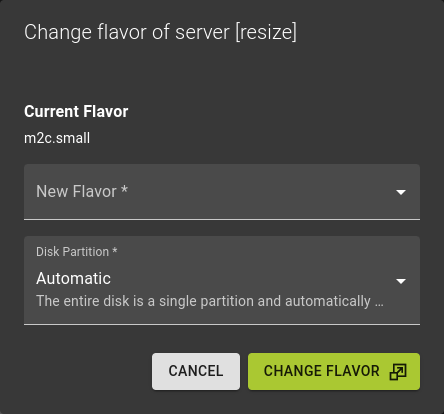

Allows editing immediate properties of the server, such as name and description

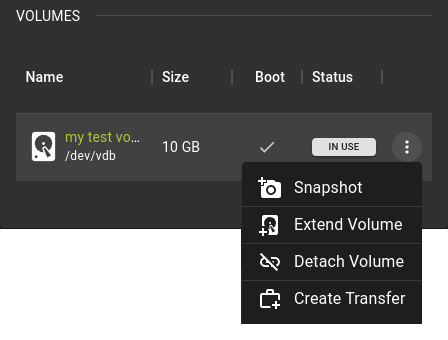

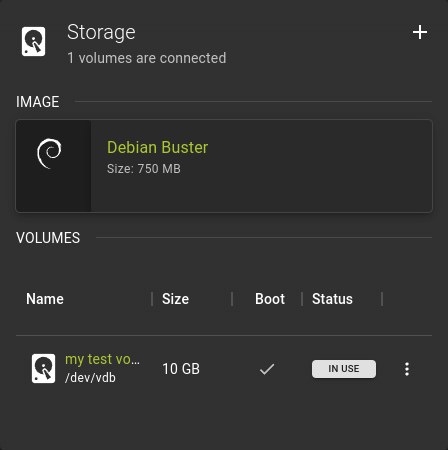

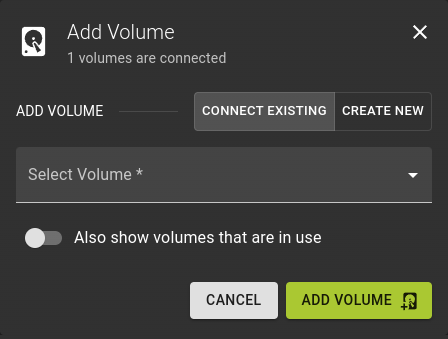

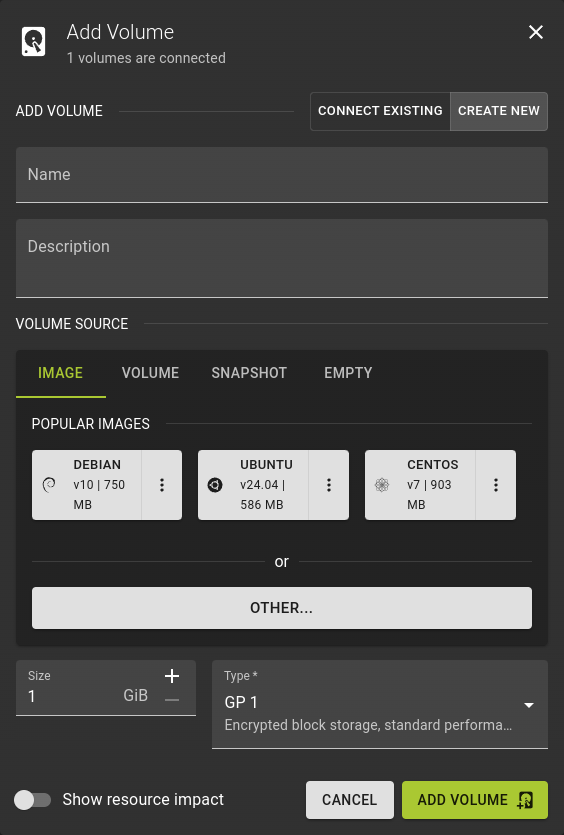

Storage Card
This card shows your server's storage settings.

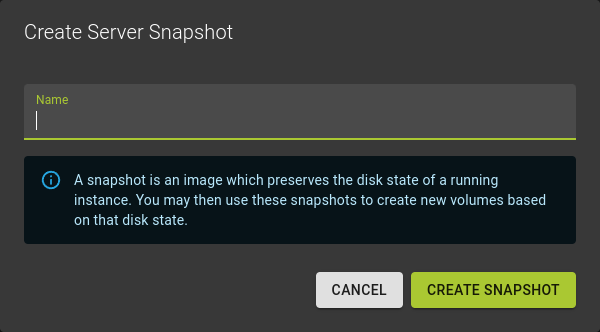

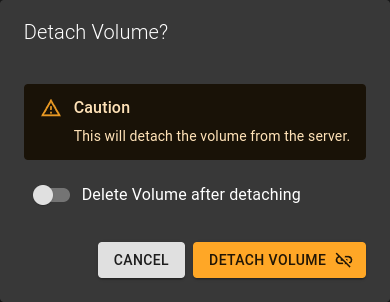

Use it to manage volumes and create snapshots.
Click on a volume to view details.

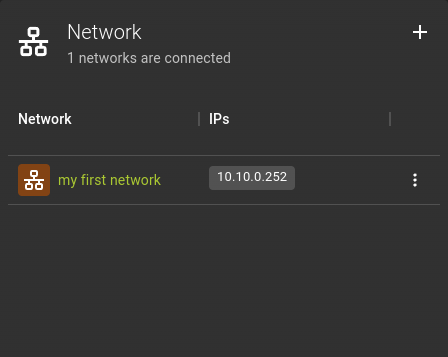

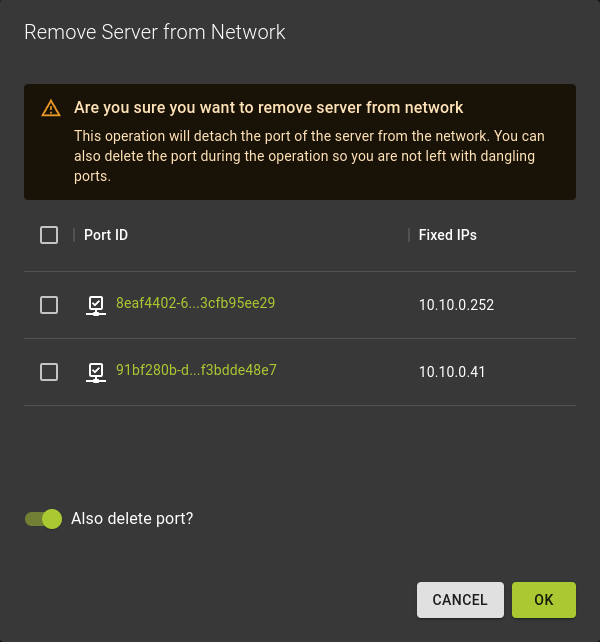

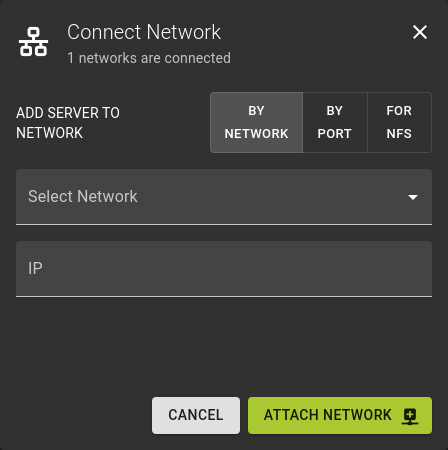

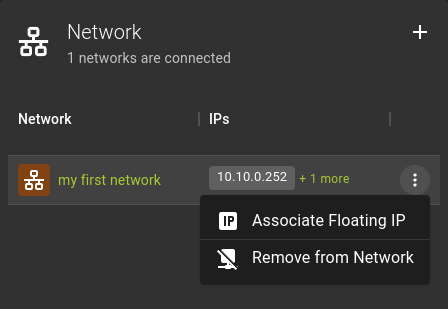

Network Card
This shows the network connections for your server. Use it to manage connections and IP addresses.

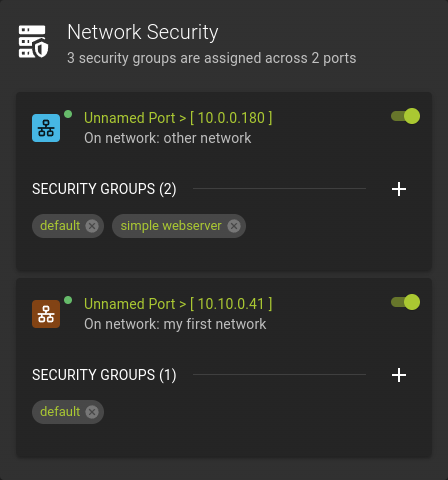

Network Security Card
This card manages the security groups for your servers' network connections.

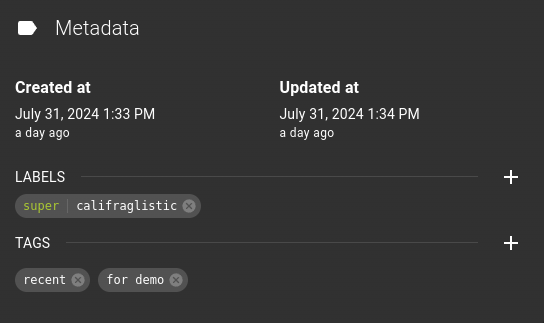

Metadata Card
Add and remove labels and tags here.
Console
The Console tab allows access to your server via VNC.
You can also access your server's window managers and graphical user interfaces remotely.
Logs
The Logs tab gives you access to the logs of your server.
Server Log
This is your servers output to stdout.Event Log
A log of the provisioning events regarding the server.Usage
openstack server show <SERVER_NAME or SERVER_ID>
<server>- Identifier of the server you want to show
Example
openstack server show <SERVER_NAME or SERVER_ID>
Output
Example
Change Basic settings
Basic modifications are changes that can be considered atomic such as renaming a server
In the Basics card on the servers detail page:
- Click on the icon to enter edit mode.
- Rename and describe your server as needed
- Click Update to apply the changes
Here you can also change the flavor of your server.
Usage
openstack server set <server>
<server>- Identifier of the server you want to update
Example
Adding / Removing Volumes
Adding an existing Volume
In the Storage card on the servers detail page:
- Click on the icon
- Select Connect Existing
- Select a volume from the list of volumes
- Click Add Volume
Creating and attaching a new Volume
In the Storage card on the servers detail page:
- Click on the icon
- Select Create new
- Provide a name and description for the volume
- Select the source for the volume or leave it empty
- Select the size for the volume
- Select the volume type
- Click Add Volume
Detaching a Volume
- Click on a volume and select
Detach Volume - Confirm the operation
- Select if you also want to delete the volume after detaching
- Confirm the operation by clicking Detach Volume
Adding an existing Volume
Usageopenstack server attach volume <volume> <server>
Detach a volume
Usageopenstack server detach volume <volume> <server>
Example
# Terraform Provider configuration
terraform {
required_providers {
openstack = {
source = "terraform-provider-openstack/openstack"
}
}
}
# Select latest OpenStack Ubuntu 24.04 Image
data "openstack_images_image_v2" "image" {
most_recent = true
visibility = "public"
properties = {
os_distro = "ubuntu"
os_version = "24.04"
}
}
# Upload SSH key
resource "openstack_compute_keypair_v2" "ssh_key" {
name = "ssh-public-key"
public_key = file("~/.ssh/id_rsa.pub")
}
# Network configuration
data "openstack_networking_network_v2" "ext_net" {
name = "ext-net"
}
resource "openstack_networking_network_v2" "network" {
name = "net"
admin_state_up = "true"
}
resource "openstack_networking_subnet_v2" "network" {
name = "subnet"
network_id = openstack_networking_network_v2.network.id
cidr = "10.20.30.0/24"
ip_version = 4
enable_dhcp = "true"
dns_nameservers = ["1.1.1.1", "8.8.8.8"]
}
resource "openstack_networking_port_v2" "os_server_port" {
name = "os_server_port"
admin_state_up = "true"
network_id = openstack_networking_network_v2.network.id
security_group_ids = [openstack_networking_secgroup_v2.ssh_access_secgroup.id,
]
fixed_ip {
subnet_id = openstack_networking_subnet_v2.network.id
}
}
resource "openstack_networking_router_v2" "network" {
name = "router"
admin_state_up = "true"
external_network_id = data.openstack_networking_network_v2.ext_net.id
}
resource "openstack_networking_router_interface_v2" "network" {
depends_on = [openstack_networking_secgroup_v2.ssh_access_secgroup]
router_id = openstack_networking_router_v2.network.id
subnet_id = openstack_networking_subnet_v2.network.id
}
# Security Group for SSH access
resource "openstack_networking_secgroup_v2" "ssh_access_secgroup" {
name = "ssh_access_secgroup"
description = "Security group for ssh access"
}
resource "openstack_networking_secgroup_rule_v2" "ssh_rule" {
direction = "ingress"
ethertype = "IPv4"
protocol = "tcp"
port_range_min = 22
port_range_max = 22
remote_ip_prefix = "0.0.0.0/0"
security_group_id = openstack_networking_secgroup_v2.ssh_access_secgroup.id
}
# Create and attach network volume
resource "openstack_blockstorage_volume_v3" "volume" {
name = "volume"
size = "5"
}
resource "openstack_compute_volume_attach_v2" "attach_volume" {
instance_id = openstack_compute_instance_v2.os_server.id
volume_id = openstack_blockstorage_volume_v3.volume.id
}
# Create an OpenStack VM
resource "openstack_compute_instance_v2" "os_server" {
name = "server"
image_name = data.openstack_images_image_v2.image.name
flavor_name = "m1.small"
key_pair = openstack_compute_keypair_v2.ssh_key.name
network {
uuid = openstack_networking_network_v2.network.id
port = openstack_networking_port_v2.os_server_port.id
}
lifecycle {
create_before_destroy = true
ignore_changes = [flavor_name, image_name]
}
}
# Create a floating IP / public IP
resource "openstack_networking_floatingip_v2" "floatip_1" {
pool = "ext-net"
}
# Associate the floating IP
resource "openstack_networking_floatingip_associate_v2" "floatip_1" {
floating_ip = openstack_networking_floatingip_v2.floatip_1.address
port_id = openstack_networking_port_v2.os_server_port.id
}
Connecting / Disonnecting Networks
Add server to a network
In the Network card on the servers detail page:
- Click the button at the top right of the network card
- Select how you want to connect
By Network- Select the Network
- Optionally provide an IP address on the selected network
By Port- Select an available port from the list
For NFS- Select the NFS share you want to connect to.
- Click Attach Network
Remove server from network
In the Network card on the servers detail page:
- Click the option on a network and select
Remove from Networkfrom the menu
In the emerging dialog:
- Select which ports to detach on the selected network (in case there are more than one)
- Chose whether you want to detach only or also clean up the detached port by selecting
Also delete port
Add server to a network
Usageopenstack server add network <server> <network>
<server>- Identifier of server
<network>- Identifier of network
Remove server from network
Usageopenstack server remove network <server> <network>
<server>- Identifier of server
<network>- Identifier of network
Example
# Terraform Provider configuration
terraform {
required_providers {
openstack = {
source = "terraform-provider-openstack/openstack"
}
}
}
# Network configuration
data "openstack_networking_network_v2" "ext_net" {
name = "ext-net"
}
resource "openstack_networking_network_v2" "network" {
name = "net"
admin_state_up = "true"
}
resource "openstack_networking_subnet_v2" "network" {
name = "subnet"
network_id = openstack_networking_network_v2.network.id
cidr = "10.20.30.0/24"
ip_version = 4
enable_dhcp = "true"
dns_nameservers = ["1.1.1.1", "8.8.8.8"]
}
resource "openstack_networking_router_v2" "network" {
name = "router"
admin_state_up = "true"
external_network_id = data.openstack_networking_network_v2.ext_net.id
}
resource "openstack_networking_router_interface_v2" "network" {
router_id = openstack_networking_router_v2.network.id
subnet_id = openstack_networking_subnet_v2.network.id
}
Adding / Removing Floating IPs
-
On Server List
Click the on the server you want to manage floating IPs for and select
Manage Floating IPsfrom the menu. -
On Servers Detail Page
In the networks card click on the icon next to a network entry and select
Manage Floating IPsfrom the menu.
The dialog lists the ports of your server and their currently assigned IPs if there are any.
To assign a floating IP
-
Click on the Port to:
- either select an available IP you have previously reserved
- or reserve a new IP and assign it in a single interaction
-
Close the dialog when you are DONE
To remove a floating IP
- Click to remove
- Close the dialog when you are done
Add Floating IP Address
Usage
openstack server add floating ip <SERVER_ID or SERVER_NAME> <FLOATING_IP_ADDRESS>
Example
openstack server add floating ip 3504a48e-f780-4aa1-a289-29e147e14c93 109.68.225.193
Output
openstack server list
+--------------------------------------+---------------------------+--------+-----------------------------------------------------------+--------------------------+----------+
| ID | Name | Status | Networks | Image | Flavor |
+--------------------------------------+---------------------------+--------+-----------------------------------------------------------+--------------------------+----------+
| 3504a48e-f780-4aa1-a289-29e147e14c93 | simpleServer | ACTIVE | delme=10.0.0.229, 109.68.225.193 | Ubuntu Jammy 22.04 | m2c.tiny |
+--------------------------------------+---------------------------+--------+-----------------------------------------------------------+--------------------------+----------+
Removing Floating IP Address
Usage
openstack server remove floating ip <SERVER_ID or SERVER_NAME> <FLOATING_IP_ADDRESS>
Example
openstack server remove floating ip 3504a48e-f780-4aa1-a289-29e147e14c93 109.68.225.193
Output
openstack server list
+--------------------------------------+---------------------------+--------+-----------------------------------------------------------+--------------------------+----------+
| ID | Name | Status | Networks | Image | Flavor |
+--------------------------------------+---------------------------+--------+-----------------------------------------------------------+--------------------------+----------+
| 3504a48e-f780-4aa1-a289-29e147e14c93 | simpleServer | ACTIVE | delme=10.0.0.229 | Ubuntu Jammy 22.04 | m2c.tiny |
+--------------------------------------+---------------------------+--------+-----------------------------------------------------------+--------------------------+----------+
Example
Managing Security Groups
Managing security groups for servers in OpenStack involves creating and configuring sets of rules to control inbound and outbound network traffic. These security groups act as virtual firewalls, allowing users to define access permissions for different types of traffic based on specific protocols, ports, and IP ranges.
Add to a security group
To add a security group simply click the icon and select the security groups to include.Remove from a security group
To remove a security group:- Simply click the icon and deselect the security groups to remove.
- Click the icon of an assigned security group
Add server to a security group
This operation will add all network connections of the server to a security group
Usage
openstack server add security group <server> <group>
<server>- Identifier of server
<group>- Identifier of security group
Remove server from a security group
This operation will remove all network connections of the server to a security group.Usage
openstack server remove security group <server> <group>
<server>- Identifier of server
<group>- Identifier of security group
Manage Security Groups per port
You can also add or remove security groups on a per port basis as opposed to all network connections of a server. These operations are performed on the ports of the server
openstack port --security-group <security-group> <port>
--security-group <security-group>- Security group to associate with this port (name or ID) (repeat option to set multiple security groups)
- `
- Identifier of port to update
Example
# Terraform Provider configuration
terraform {
required_providers {
openstack = {
source = "terraform-provider-openstack/openstack"
}
}
}
# Security group for HTTP/HTTPS access
resource "openstack_networking_secgroup_v2" "http_access_secgroup" {
name = "http_access_secgroup"
description = "Security group for HTTP/HTTPS access"
}
resource "openstack_networking_secgroup_rule_v2" "http_rule" {
direction = "ingress"
ethertype = "IPv4"
protocol = "tcp"
port_range_min = 80
port_range_max = 80
remote_ip_prefix = "0.0.0.0/0"
security_group_id = openstack_networking_secgroup_v2.http_access_secgroup.id
}
resource "openstack_networking_secgroup_rule_v2" "https_rule" {
direction = "ingress"
ethertype = "IPv4"
protocol = "tcp"
port_range_min = 443
port_range_max = 443
remote_ip_prefix = "0.0.0.0/0"
security_group_id = openstack_networking_secgroup_v2.http_access_secgroup.id
}
Server Actions
Additionally servers allow performing a variety of actions on them. Find the Server actions by clicking the menu in the Server List

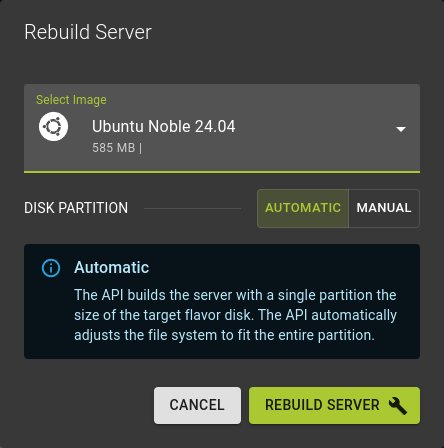

Rebuild
Rebuild is an operation which can be performed to change certain aspects of the server, most notably using a different image.
Info
Note that the image does not have to change and in the case of volume-backed servers the image currently cannot change.
Access the rebuild option
- From the server list using the menu and pick the
Rebuild Serveroption - From the options menu on the servers detail page
Usage
openstack server rebuild <InstanceId> <ImageId>
<InstanceId>- Identifier (or name) of server you want to rebuild
<ImageId>- Identifier (or name) of image to be used to rebuild
Example
Lock / Unlock
You can lock and unlock servers for manual changes. This can be used to protect a servers from accidental or unwanted deletion and modification.
To lock and unlock a server
On the server list
Click and select lock / unlock
On the detail page
Select lock / unlock from the lifecycle button on the top right
To lock a server
openstack server lock <InstanceId>
To unlock a server
openstack server unlock <InstanceId>
<InstanceId>- Identifier of server to lock or unlock. Also accepts a list of identifiers to perform a bulk operation
Example
Shelve / Unshelve
Shelving is useful if you have an instance that you are not using, but would like retain in your list of servers. For example, you can stop an instance at the end of a work week, and resume work again at the start of the next week. All associated data and resources are kept; however, anything still in memory is not retained. If a shelved instance is no longer needed, it can also be entirely removed.
On server list
Click on and selectShelve Server / Unshelve Server from the menu
On server details page
SelectShelve Server / Unshelve Server from the lifecycle button on the top right
Usage
openstack server [shelve | unshelve] <server>
shelve- Use to shelve server
unshelve- Use to unshelve server
<server>- Identifier of server you are shelving / unshelving
- Can also take list of identifiers for bulk operation
Example
Power state actions
A server can be transitioned between different power states. E.g. You can reboot or stop servers .
To show the Power state dialog
On the server list
Click and select Start, Stop, Suspend ...
On the detail page
Select the new state from the Powerstate Button on top right

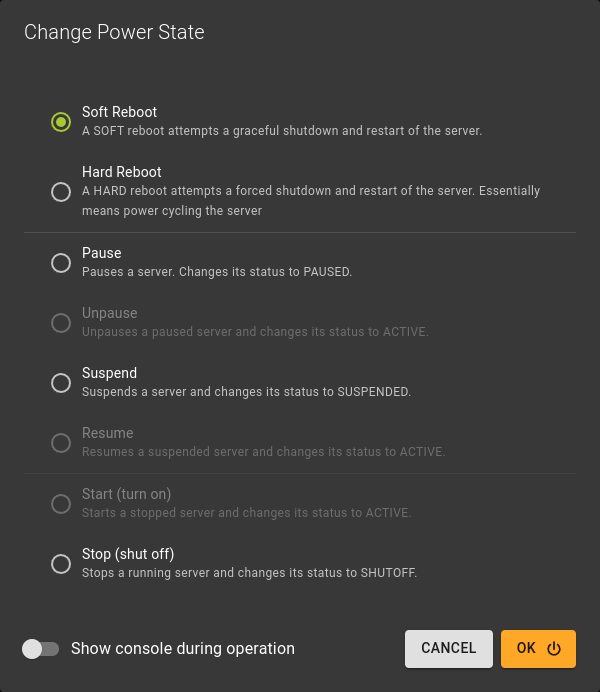

Review / Select the desired target state:
Soft Reboot- Sends an ACPI signal to the virtual machine allowing for a graceful reboot handled by the operating system
Hard Reboot- Reboots the server without involving the operating system of the server. This is equivalent to a full power cycle
Pause / Unpause- This command stores the state of the VM in RAM. A paused instance continues to run in a frozen state.
Suspend / Resume- This will send an ACPI signal to the server to suspend or resume its operation.
Start / Stop- This will turn on or turn off your server.
Example
Change Flavor (Resize)
You can change the size of an instance by changing its flavor. This rebuilds the instance and therefore results in a restart.
1. Click Change Flavor in the basics card
- Select new flavor
- Decide the disk partitioning strategy
- Confirm the operation by clicking CHANGE FLAVOR
Resizing a server from the CLI is a two step process.
- Trigger a resize
- Confirm or revert the resize operation
1. Trigger a resize
openstack server resize --flavor <flavor> <server>
<flavor>- Identifier of the new flavor
<server>- Identifier of the server you are resizing
2. Confirm / Revert the resize operation
Check if the resize operation has completed
openstack server show <server>
<server>- Identifier of the server you are checking
Once the servers status transitions from RESIZE to VERIFY_RESIZE confirm or revert the operation
openstack server resize [--confirm | --revert] <server>
--confirm- Confirms and finalizes the operation
---revert- Reverts the resize operation
Example
Snapshot
Creates a snapshot of the server freezing the current state of the server. RAM and storage state are persisted and can be used during later restoration.
Info
This kind of snapshot is stored as Image (not to be confused with volume snapshots)
You can trigger a server snapshot from the servers detail page using server snapshot button fron the titlebar
In the dialog that follows:
- Name your snapshot.
- Conclude the operation by clicking Create Snapshot
Usage
openstack server image create
[--name <image-name>]
[--property <key=value>]
[--wait]
<server>
--name <image-name>
Name of new disk image (default: server name)
--property <key=value>
Set a new property to meta_data.json on the metadata server (repeat option to set multiple values)
--wait
Wait for operation to complete
<server>
Server to create image from (name or ID)
Example
Remote Console
The remote console allows access to your server via VNC. This also allows access to window managers and graphical user interfaces of your server similar to remote desktop access.
The Console can be accessed
- From the
CONSOLEtab on the detail page of a server - From the server list using the and selecting
Consolefrom the menu
Usage
openstack console url show
[--novnc | --xvpvnc | --spice]
[--rdp | --serial | --mks]
<server>
--novnc- Show noVNC console URL (default)
--xvpvnc- Show xvpvnc console URL
--spice- Show SPICE console URL
--rdp- Show RDP console URL
--serial- Show serial console URL
--mks- Show WebMKS console URL
<server>- Server to show URL (name or ID)
Example
Logging
Server log
This is the log output of your server as acquired from StdOut
Event log
This is the log of events that were acting on your server.
Error log
...
Delete Server
You can delete a server
- from the list view by using the option and selecting
delete. - from the details view of a server using the Delete button on the title bar.
In the emerging dialog:
Confirm the operation by clicking Delete
Usage
openstack server delete [--wait] <InstanceId>
<InstanceId>- Identifier of server you want to delete. Also accepts a list of identifiers to perform a bulk delete. (Use with caution)
[--wait]- optional
- Performs delete and waits for the operation to succeed.
Example
Cleaning up
Deleting a server will leave you with some residue in the associated resource.
- Volumes attached to the server will only be deleted in case they were flagged as "Delete with server". Otherwise you may want to delete them individually.
- Networks the server was connected to may retain the port the server was connected to. You may want to delete those individually
- Snapshots originating from the server will be retained and can be deleted individually if desired.
States
Power states (ACPI)
running
paused
no state
shutdown
crashed
shutdown
Resource States (Provisioning)
activeThe server is active.
buildThe server has not yet finished the original build process.
deleteThe server is deleted.
errorThe server is in error.
hard rebootThe server is hard rebooting. This is equivalent to pulling the power plug on a physical server, plugging it back in, and rebooting it.
migratingThe server is migrating. This is caused by a live migration (moving a server that is active) action.
passwordThe password is being reset on the server.
pausedThe server is paused.
rebootThe server is in a soft reboot state. A reboot command was passed to the operating system.
REBUILDThe server is currently being rebuilt from an image.
RESCUEThe server is in rescue mode.
RESIZEServer is performing the differential copy of data that changed during its initial copy. Server is down for this stage.
REVERT_RESIZEThe resize or migration of a server failed for some reason. The destination server is being cleaned up and the original source server is restarting.
SHELVEDThe server is in shelved state. Depends on the shelve offload time, the server will be automatically shelved off loaded.
SHELVED_OFFLOADEDThe shelved server is offloaded (removed from the compute host) and it needs unshelved action to be used again.
SHUTOFFThe server was powered down by the user, either through the OpenStack Compute API or from within the server. For example, the user issued a shutdown -h command from within the server. If the OpenStack Compute manager detects that the VM was powered down, it transitions the server to the SHUTOFF status.
SOFT_DELETEDThe server is marked as deleted but will remain in the cloud for some configurable amount of time. While soft-deleted, an authorized user can restore the server back to normal state. When the time expires, the server will be deleted permanently.
SUSPENDEDThe server is suspended, either by request or necessity. When you suspend a server, its state is stored on disk, all memory is written to disk, and the server is stopped. Suspending a server is similar to placing a device in hibernation and its occupied resource will not be freed but rather kept for when the server is resumed. If an instance is infrequently used and the occupied resource needs to be freed to create other servers, it should rather be shelved.
UNKNOWNThe state of the server is unknown. It could be because a part of the infrastructure is temporarily down or the status can not be determined for other reasons.
VERIFY_RESIZESystem is awaiting confirmation that the server is operational after a move or resize.
