SysEleven OpenStack Cloud - VPNaas - VPN Services
95%

Concepts

The VPN service object in OpenStack sets up a secure communication service that connects different parts of a network. It integrates with a specific router and subnet to provide encrypted and secure data transmission between network locations.

List VPN Services

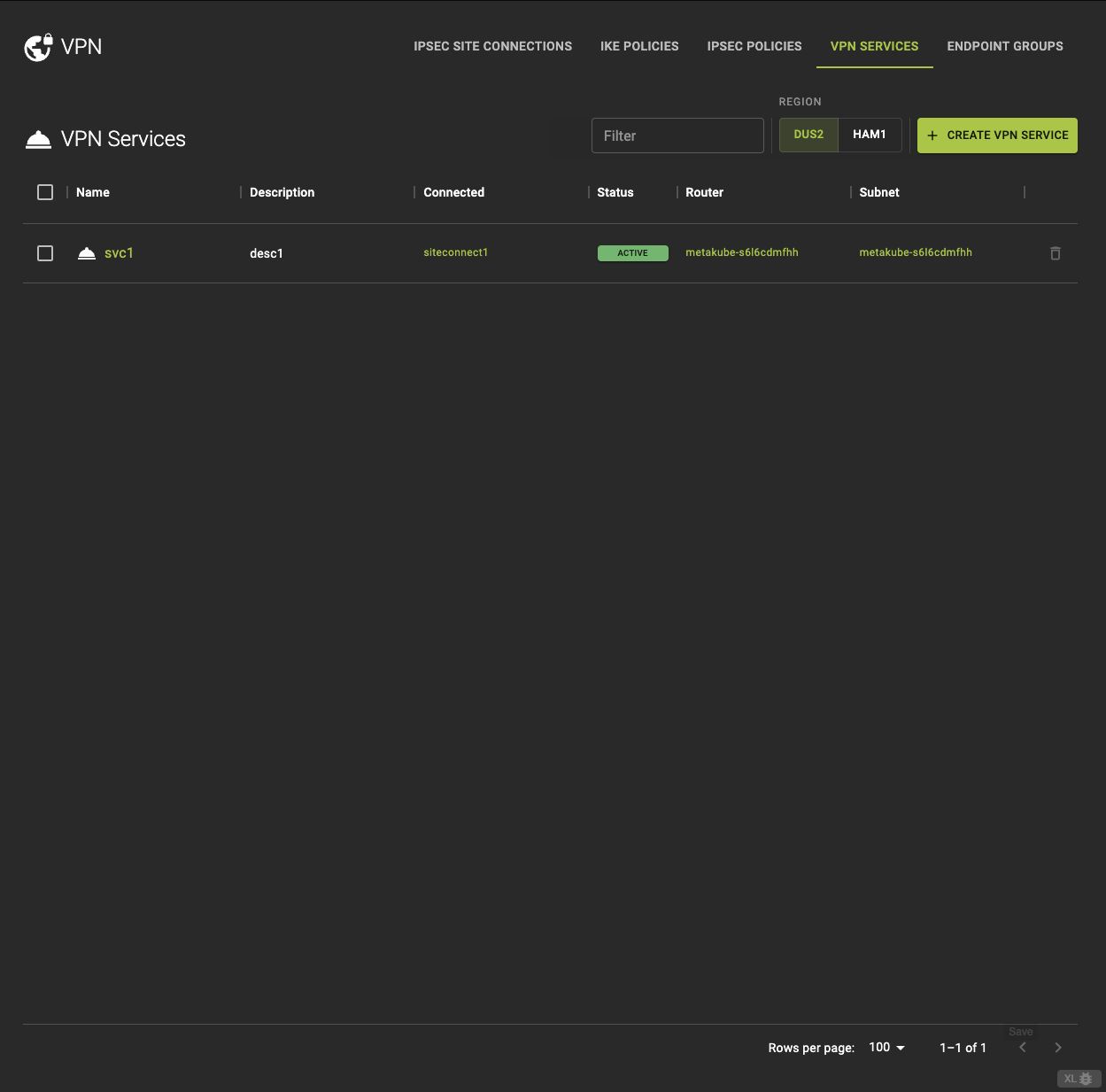

Network To get a list of the VPN Services in a region you can click on the VPN icon in the sidebar.

VPN Services From the VPN Services tab, you can

Configure CLI

Usage

openstack vpn service list

Output

+--------------------------------------+------------------------+--------------------------------------+--------------------------------------+---------+--------+--------+
| ID                                   | Name                   | Router                               | Subnet                               | Flavor  | State  | Status |
+--------------------------------------+------------------------+--------------------------------------+--------------------------------------+---------+--------+--------+
| 2f9d9d57-0b7a-41ea-bb50-5d7b2d4c9a5f | my-vpn-service         | 7d6135b1-e1f0-43d4-93eb-6c6cf35b3fb1 | f4c7d0e7-b4e5-4bcd-2b9a1d5e5ea       | None    | True   | ACTIVE |
| 1a2b3c4d-5e6f-7g8h-9i0j-k1l2m3n4o5p6 | test-vpn               | 56ab5cf1-8cb9-4e2e-8a39-2db5d1b3a1c1 | 12345abc-def6-7gh89-0i1j2k3l4m       | None    | True   | DOWN   |
+--------------------------------------+------------------------+--------------------------------------+--------------------------------------+---------+--------+--------+

Create A VPN Service

Info

Local subnets and endpoint groups

There are two ways to configure local and peer subnets: (1) Endpoint groups for both local subnet(s) and for peer CIDR(s) and (2) one local subnet ID in VPN service and one peer CIDR in IPSec site connection.

The preferred way is (1) using endpoint groups. This allows to set potentially multiple local and peer subnets per site connection. Please be aware that the endpoint groups concept cannot be mixed with the (older) approach where the local subnet ID is set in the VPN service configuration. If you use endpoint groups you have to use the concept for both local subnets and peer CIDRs and you must not set the (local) subnet ID in the VPN service. Otherwise creating the IPSec site connection will be rejected.

One common mistake is to set the local subnet ID in the VPN service and try to create an IPSec site connection with local and peer endpoint groups (and no peer CIDR) which is rejected with "Missing peer CIDRs for IPsec site-to-site connection".

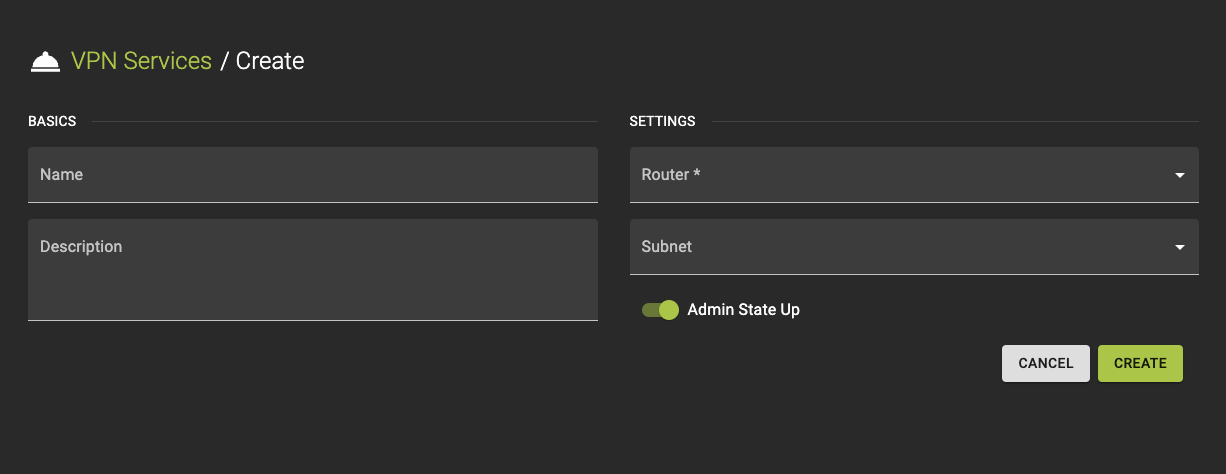

VPN Services Create To create a new VPN Service, click the Create VPN Service option in the VPN Service tab.

  1. Provide a name and a description.

  2. Configure Settings

    • Specify the router that will manage the VPN service. This router directs the VPN traffic.
    • Choose the subnet where the VPN service will be applied. This is the network segment associated with the VPN. (Caution: Must not be specified here if your local subnets are defined as endpoint groups and referenced in the IPsec site connection, which is the preferred way!)

  3. Review your settings and click create to finalize the service setup.

Configure CLI

Usage

openstack vpn service create
    [--description <description>]
    [--subnet <subnet>]
    [--flavor <flavor>]
    [--enable | --disable]
    --router ROUTER
    <name>
--description
Description for the VPN service
--subnet
Local private subnet (name or ID)
--flavor
Flavor for the VPN service (name or ID)
--enable
Enable VPN service
--disable
Disable VPN service
--router ROUTER
Router for the VPN service (name or ID)
<name>
Name for the VPN service

Inspect and modify a VPN Service

Info

You cannot update a VPN service while it is attached to an active IPsec site connection. To modify the VPN service, first detach it from all associated connections, make the necessary changes, and then reattach it. This process prevents disruption to ongoing VPN operations.

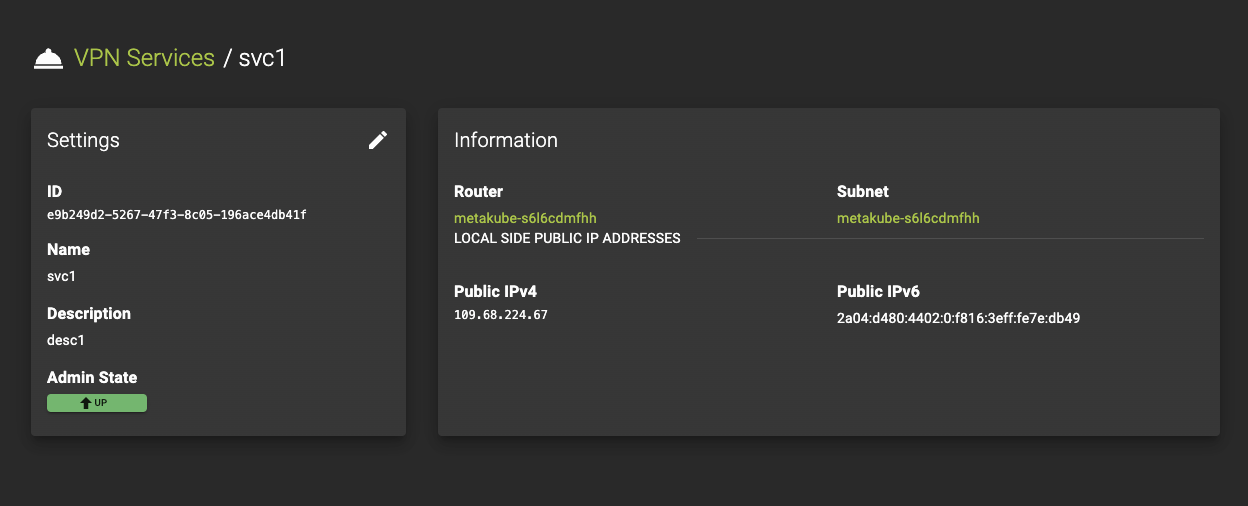

VPN Services Details To view the details of a VPN Service, select an entry from the VPN Services list.

On the details page, you can:

  • Inspect the current settings.
  • Direct access to the associated
  • Edit the VPN Service by clicking the button. This will allow you to access and modify the various configurable parameters.

Configure CLI

Usage

openstack vpn service set
    [--description <description>]
    [--subnet <subnet>]
    [--flavor <flavor>]
    [--enable | --disable]
    [--name <name>]
    <vpn-service>
--description
Description for the VPN service
--subnet
Local private subnet (name or ID)
--flavor
Flavor for the VPN service (name or ID)
`--enable
Enable VPN service
`--disable
Disable VPN service
--name
Name for the VPN service
<vpn-service>
VPN service to modify (name or ID)

Delete VPN Service

Prerequisites

You cannot delete a VPN service while it is attached to an active IPsec site connection. To delete the VPN service, first detach it from all associated connections. This ensures that active VPN operations are not disrupted.

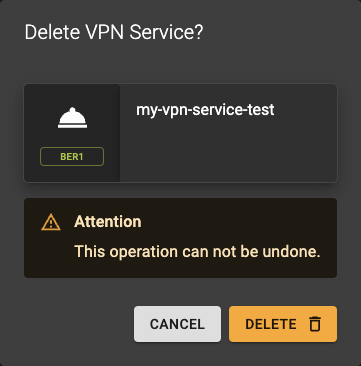

VPN Services Delete To delete a service, go to the VPN Services list and click the action button.

A confirmation prompt will appear to confirm the deletion.

Configure CLI

Usage

openstack vpn service delete <vpn-service> [<vpn-service> ...]
<vpn-service>
VPN service to delete (name or ID)
Also takes a list of identifiers or names for bulk deletion

States

active Service is fully operational
down Service is not operational
build Service is being created
error Service encountered an error
pending_create Service creation is pending
pending_update Service update is pending
pending_delete Service deletion is pending
