Concepts
A load balancer distributes incoming network or application traffic across multiple servers to ensure no single server becomes overwhelmed, optimizing resource use and improving response times. It also enhances reliability by rerouting traffic to available servers if one fails, ensuring continuous service availability.
The Load Balancer uses Listeners to receive and categorize incoming requests based on protocol and port.
These requests are then directed to the appropriate Pool of backend servers (Pool Members).
Each pool has a specific load balancing method and contains pool members that process the incoming requests.
Health Monitors continually assess the health of the pool members, ensuring that only healthy members receive traffic.
Pool:
In Octavia, a pool is a collection of backend servers (referred to as members) that the load balancer forwards traffic to. Each pool is associated with a listener and has a specific load balancing algorithm (e.g., round robin, least connections, etc.) that determines how traffic is distributed among the members of the pool.
Pool Members:
Pool members are the individual instances or servers within a pool that handle the application traffic. These members are identified by their IP addresses and ports. The load balancer distributes incoming requests to these pool members based on the specified algorithm in the pool.
Health Monitoring:
Health monitors are used to check the health status of pool members. A health monitor regularly sends requests (such as ping, HTTP, or HTTPS requests) to each pool member to determine if they are responsive and performing correctly. If a pool member fails the health check, it is marked as “down” and is temporarily removed from the pool, ensuring that traffic is only sent to healthy, functioning servers.
List Load Balancers
The Load Balancer is a virtual network device that distributes incoming traffic across multiple backend servers to ensure even load distribution, optimizing both performance and availability. The Load Balancer is implemented as an Amphora (a virtual machine running the Load Balancing software) or as a Kubernetes pod in some configurations.

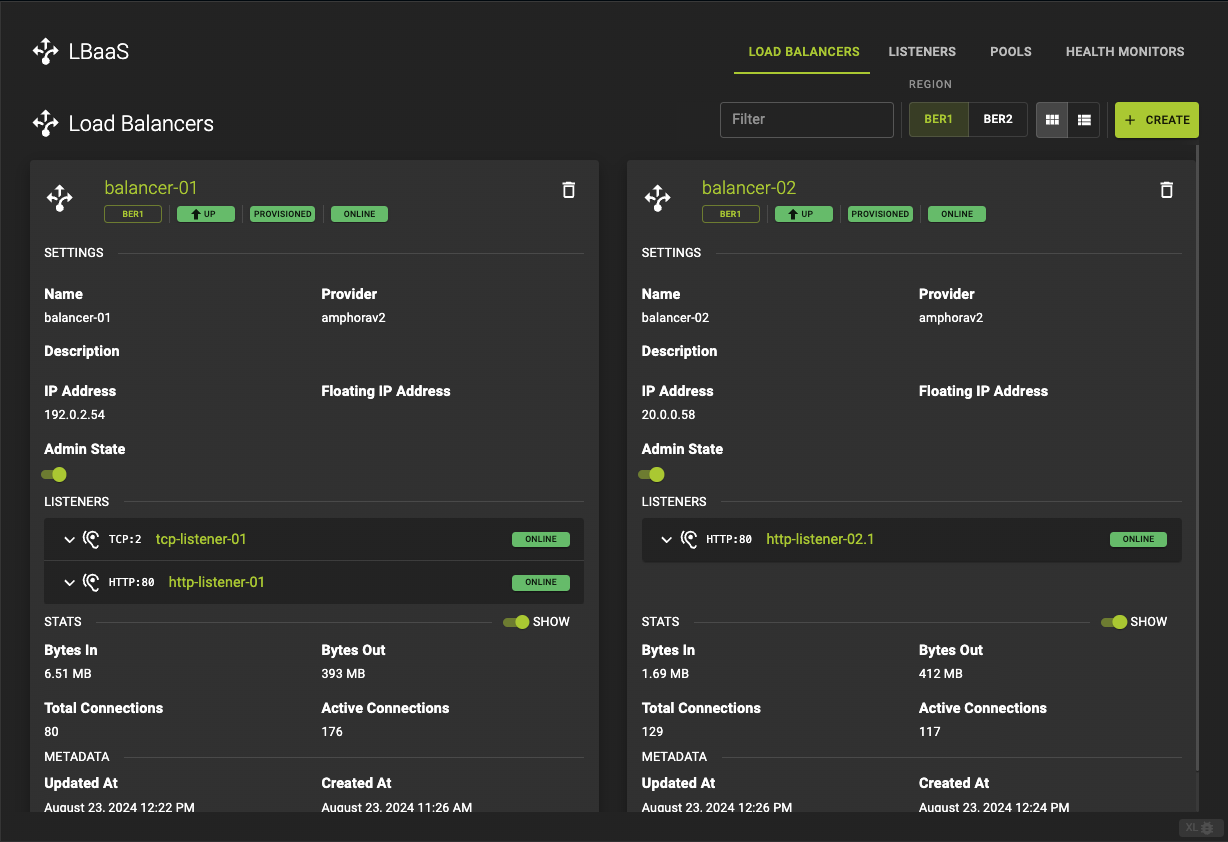

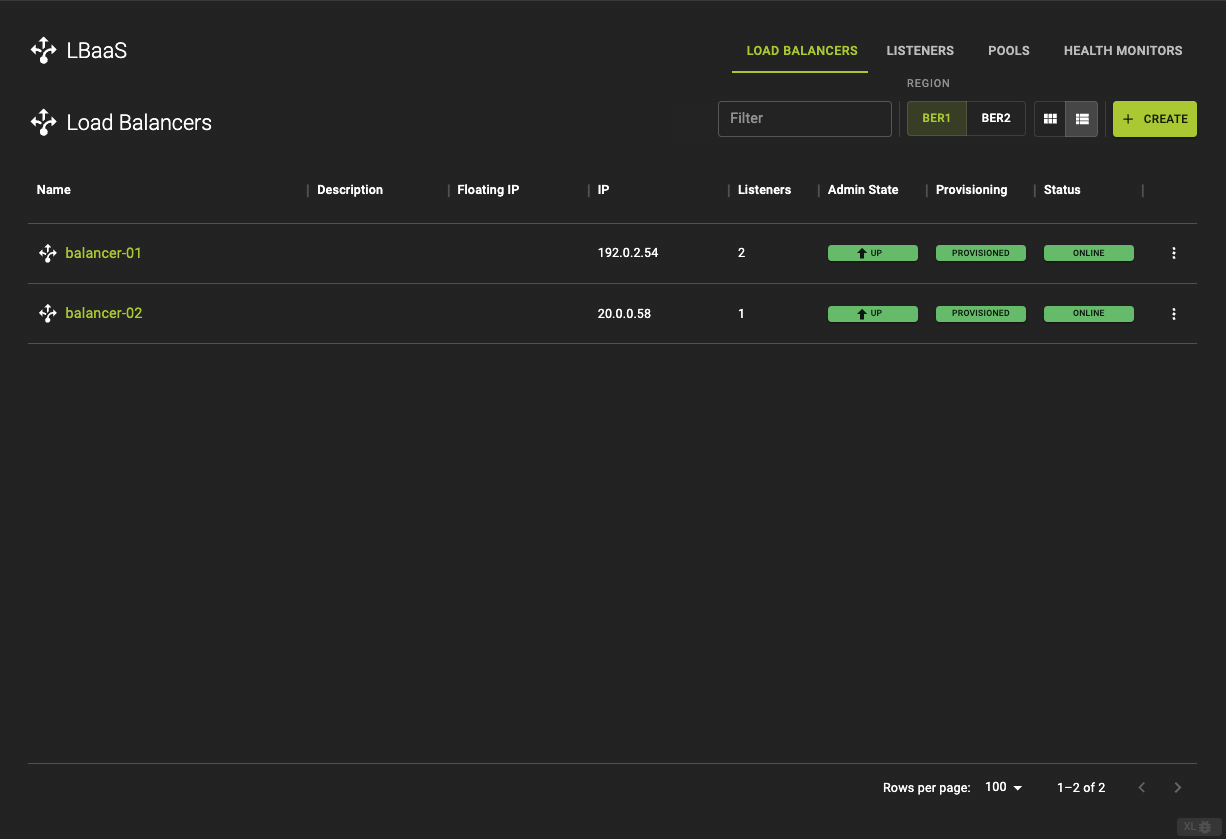

To get a list of all load balancers in a region you can click on the Load Balancers icon in the sidebar.
From there you will be linked to an overview page
This view informs you about
- The status of your load balancers
- The listerners of your load balancers
- The pool of your listeners
- The members of you pool

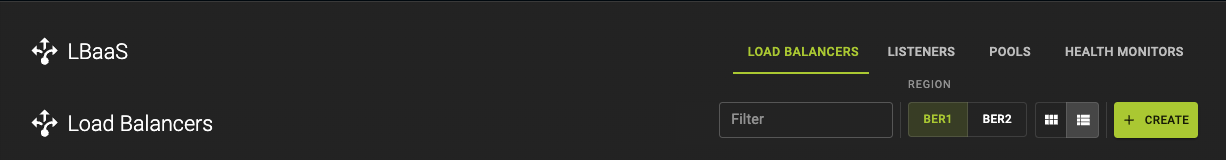

For the list view click on the list icon in the menu
From the list of Load Balancers you can
- Navigate to the details page by clicking on the name.
- Navigate to the details page by clicking on the name.
- Check in which state the Load Balancers are.
Usage
openstack loadbalancer list
Output
+--------------------------------------+---------------+----------------------------------+-------------+---------------------+------------------+-----------+
| ID | name | project_id | vip_address | provisioning_status | operating_status | provider |
+--------------------------------------+---------------+----------------------------------+-------------+---------------------+------------------+-----------+
| f19a93f0-53a8-4260-adf8-4e900314bde2 | balancer_01 | 0c12ce74a0084c0b8fef8e15d4a3377d | 192.0.2.109 | ACTIVE | ONLINE | amphorav2 |
| 36d3a99b-7ad9-42c4-b669-6b19582efcab | balancer_02 | 0c12ce74a0084c0b8fef8e15d4a3377d | 192.0.2.80 | ACTIVE | ONLINE | amphorav2 |
+--------------------------------------+---------------+----------------------------------+-------------+---------------------+------------------+-----------+
Example
Create A Load Balancer
Load Balancers creation can be performed including all resources at once including a Listener, a Pool including Pool Member and Health Monitoring. If you want to create a particular resource check out the following links:
Prerequisites
- Load Balancer creation involves selection of a network with a subnet the pool members (servers) will be attached to. In case you dont yet have a suitable network the UI can take you to the network creation workflow if necessary.

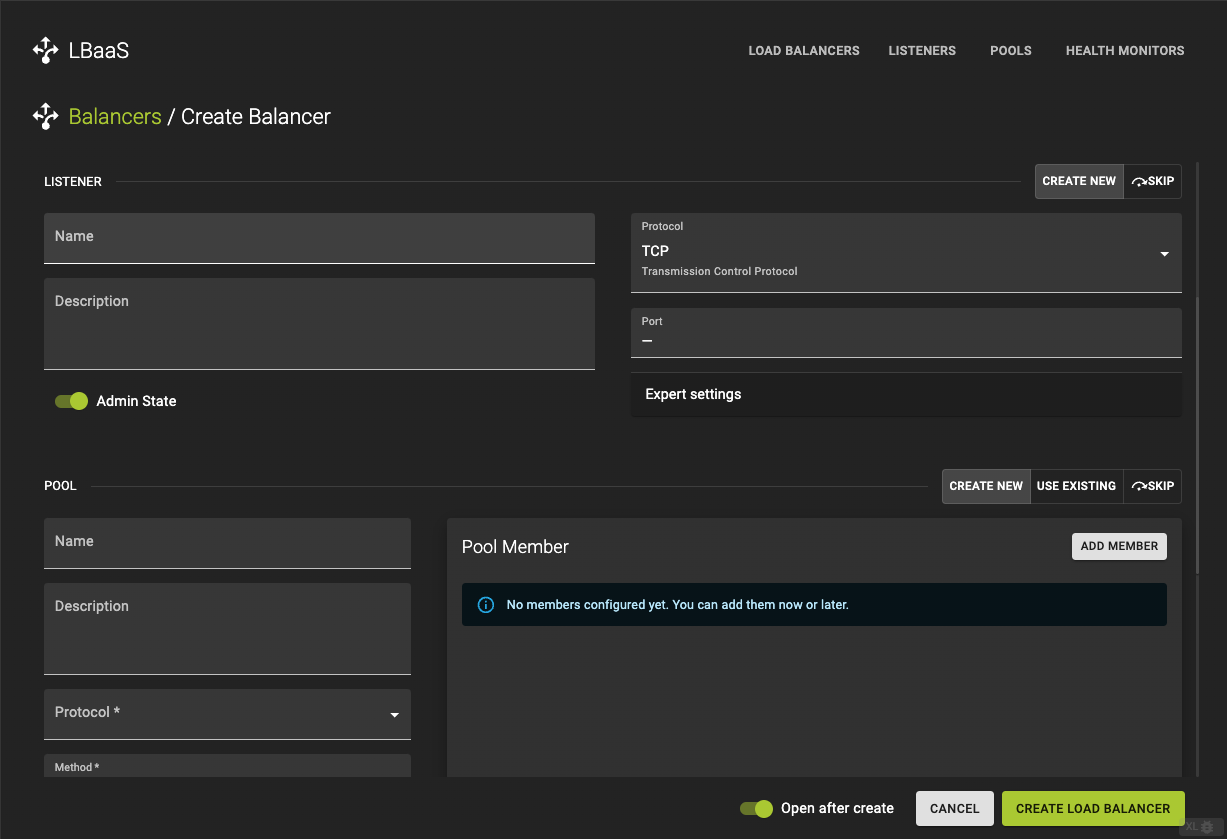

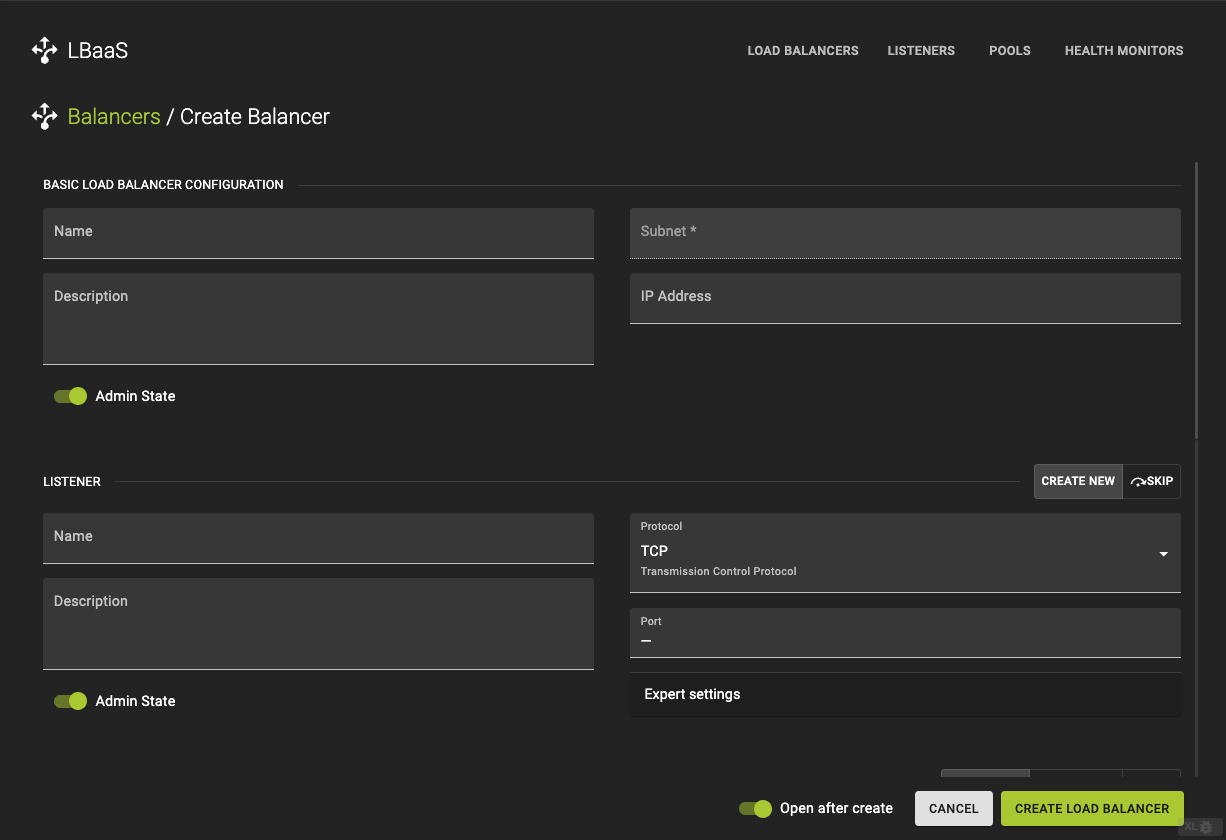

To create a load balancer navigate to the load balancer list or overview and click the Create button in the titlebar.
Basic Load Balancer Configuration
-
Name and describe your Load Balancer (optional).
-
Subnet (required):
- Choose a
Subnetvia the subnet selector. If you do not have one create one now
- Choose a
-
IP-Address (optional)
- You can define a specific
IP Address. If this is left blank a IP Address will be provided from the CIDR range of the subnet.
- You can define a specific
-
Admin State:
- Toggle between
Admin StateUp and Down
- Toggle between

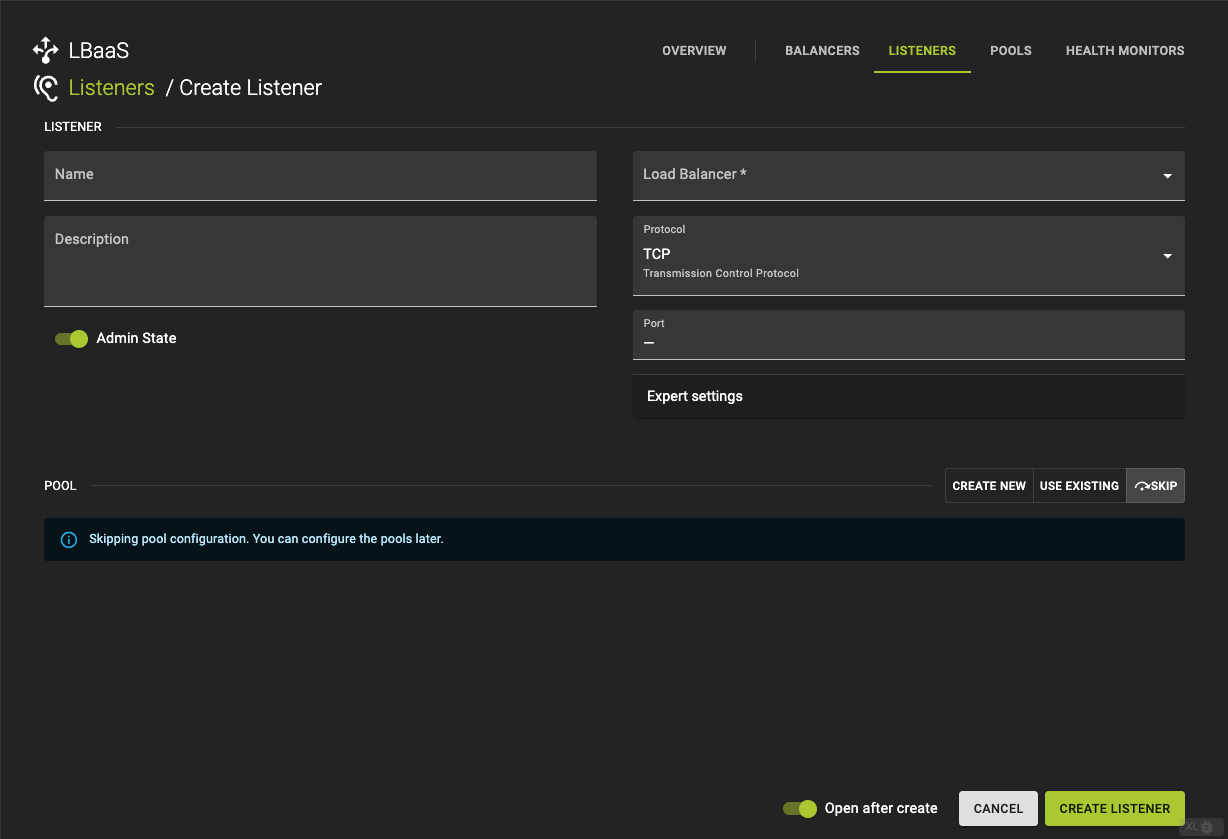

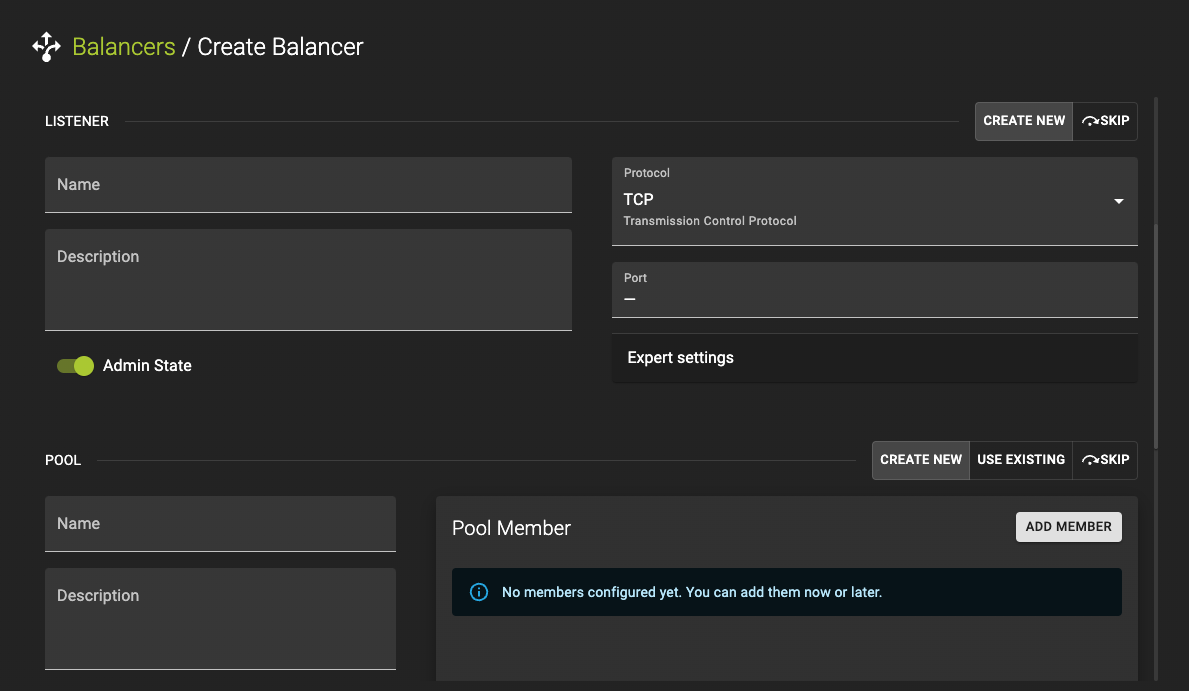

Listener Configuration
You can either Skip the next steps or go on with configuring a Listener
-
Name and describe your Listener (optional).
-
Protocol (required):
- Choose a
Protocol. Options areTCP,HTTPandHTTPs
- Choose a
-
Port (required)
- Define a
Port
- Define a

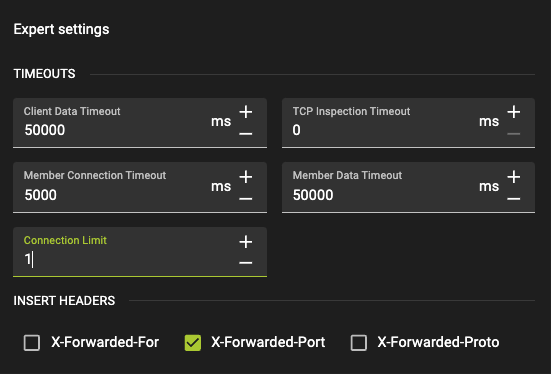

Expert Settings

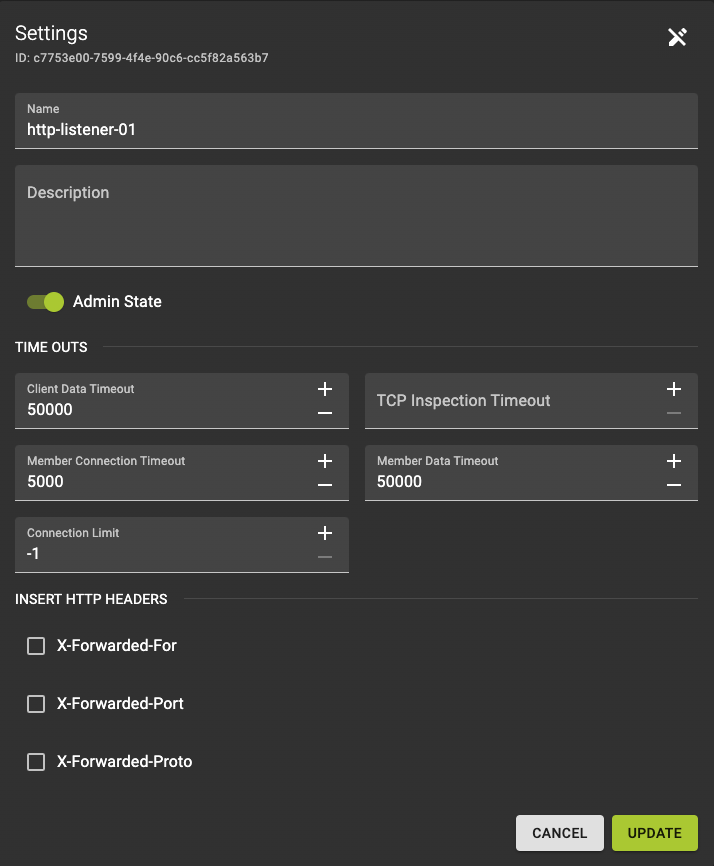

The expert settings allow you to define
-
Client Data Timeout -
TCP Inspection Timeout -
Member Connection Timeout -
Member Data Timeout -
Connection Limit
If you choose HTTP or HTTPs as protocols you also have the option to define Insert Headers such as
-
X-Forwarded-For -
X-Forwarded-Port -
X-Forwarded-Porto

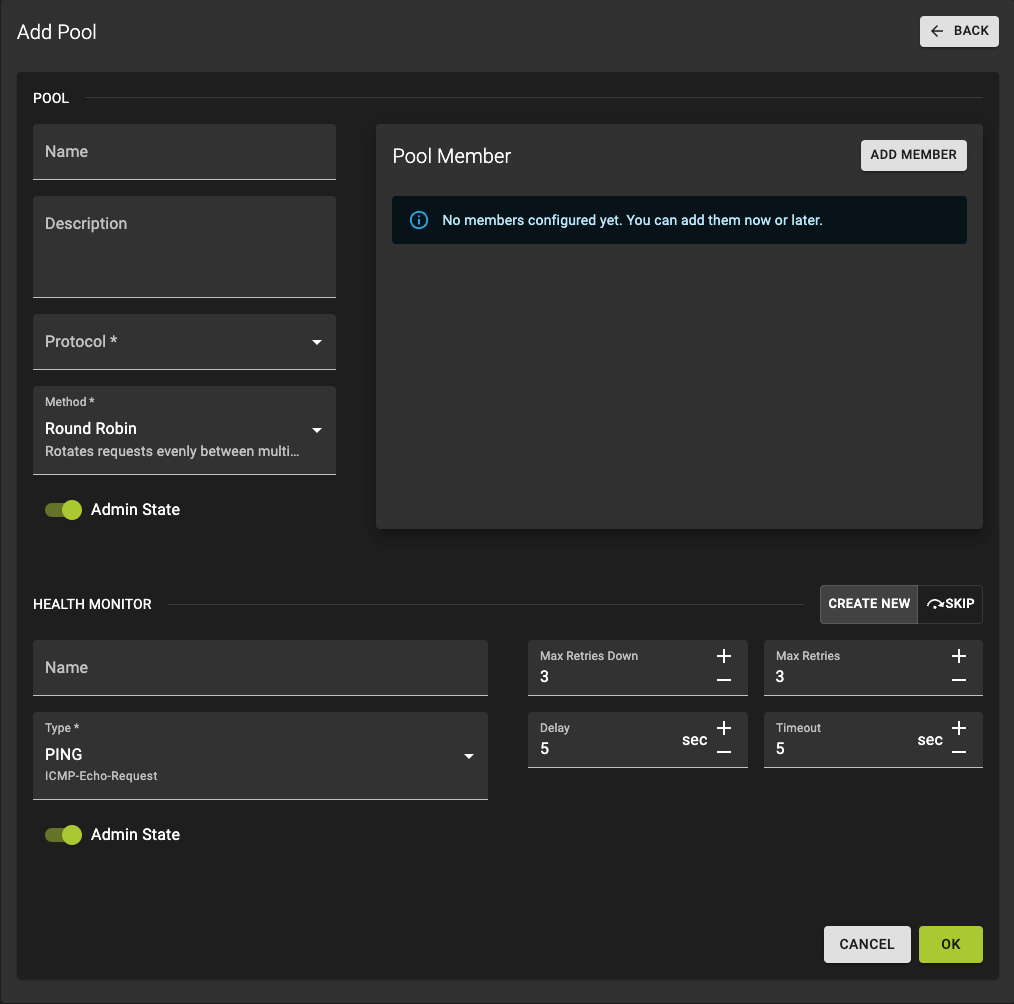

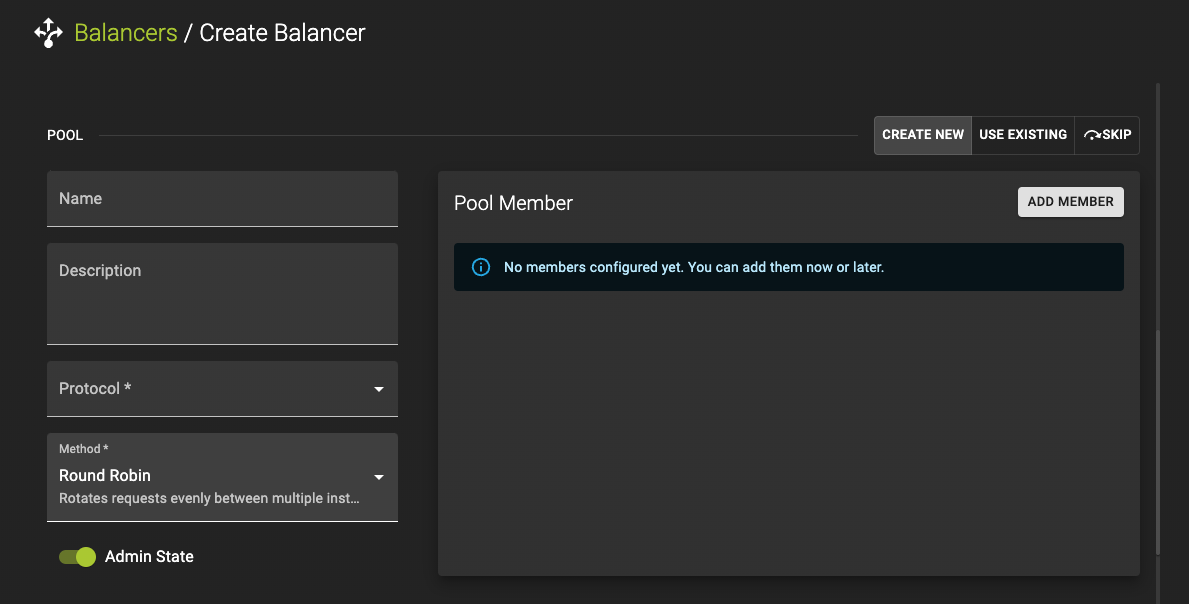

Pool Configurations
Configures the pool which contains the server Instances which the data requests are distributed to. You can Skip this step or Use Existing pool
-
Name and describe your Listener (optional).
-
Protocol (required):
- Choose a
Protocol. Options areTCP,HTTPandHTTPs
- Choose a
-
Method (required)
-
Choose a
Methodafter which the Requests are distributed between pool members. Options are: -
Source IP -
Round Robin -
Least Connections
-

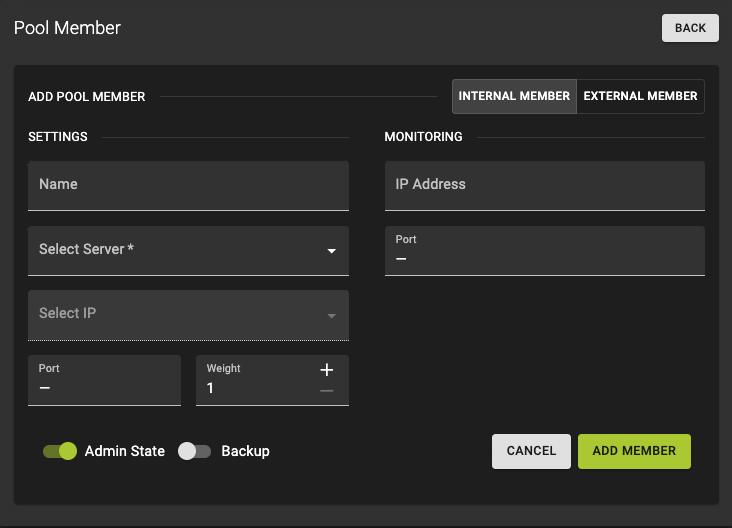

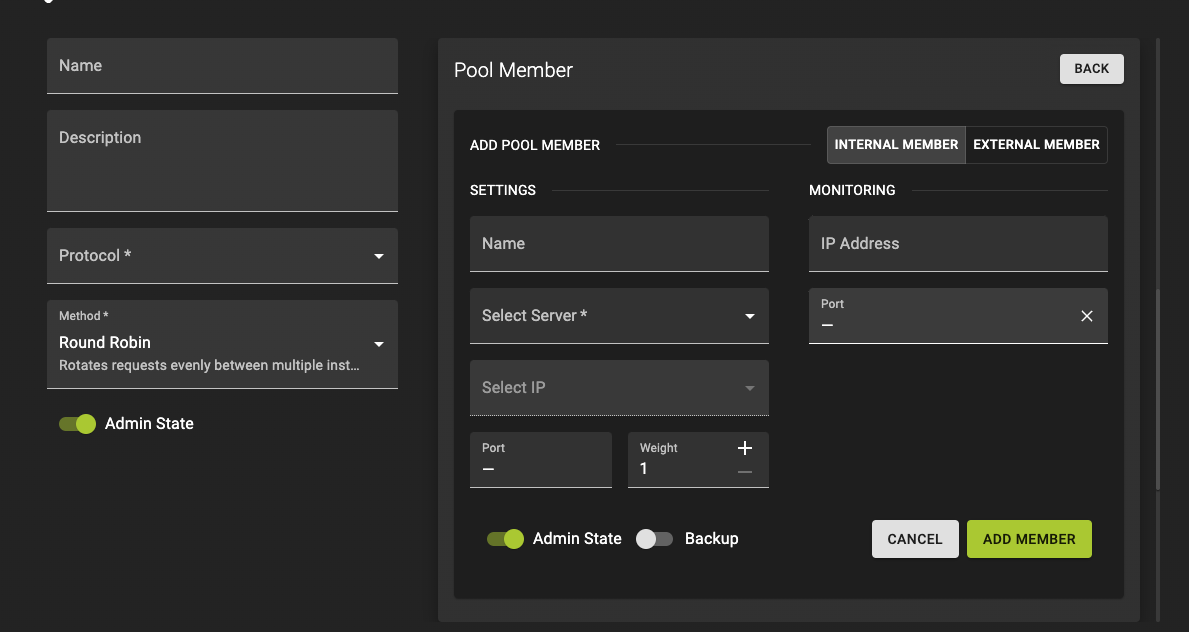

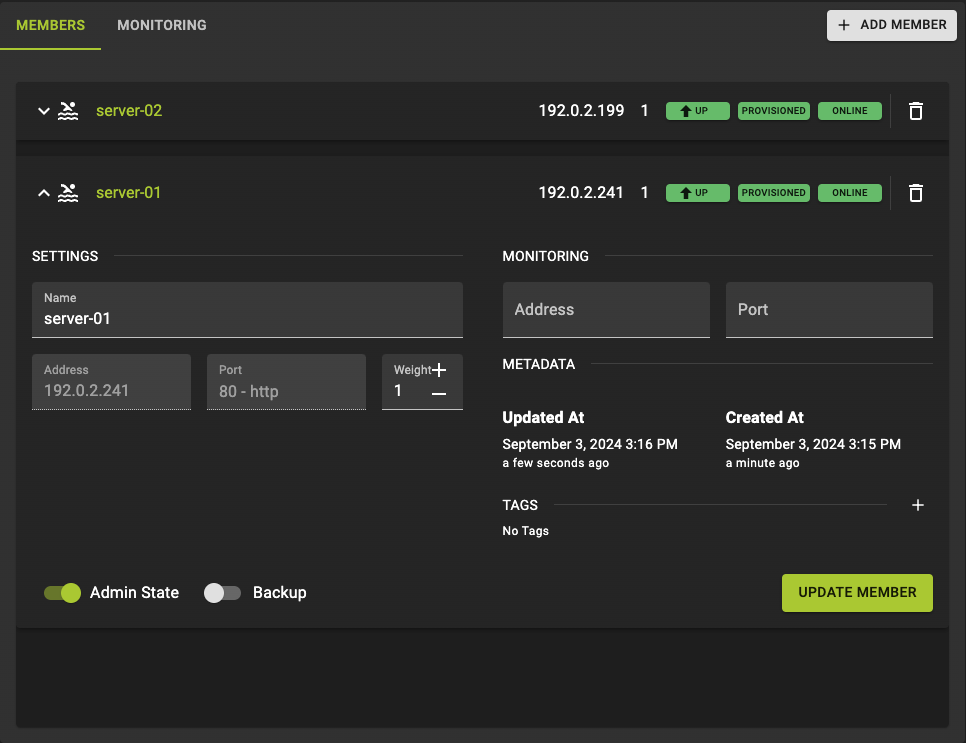

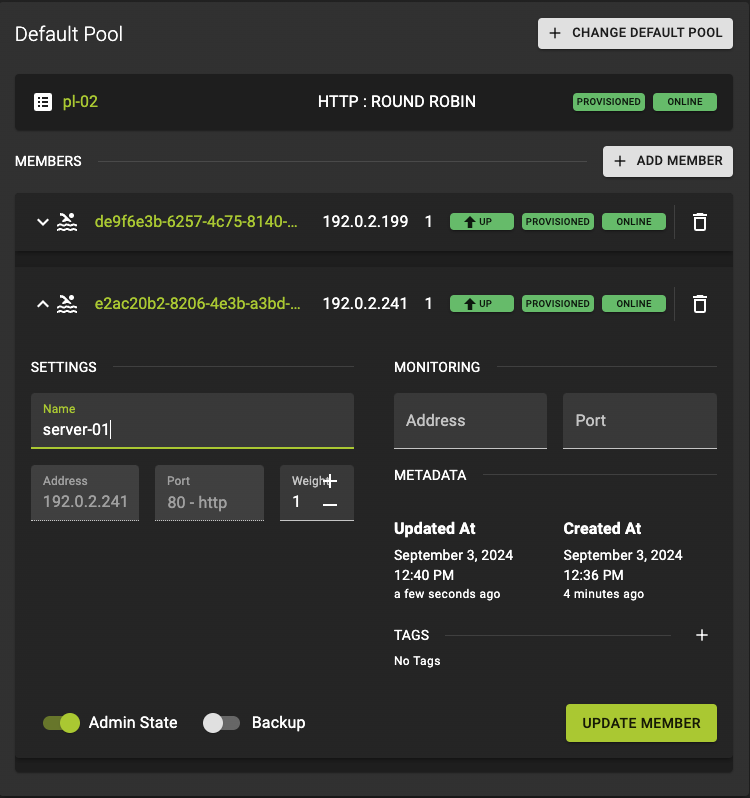

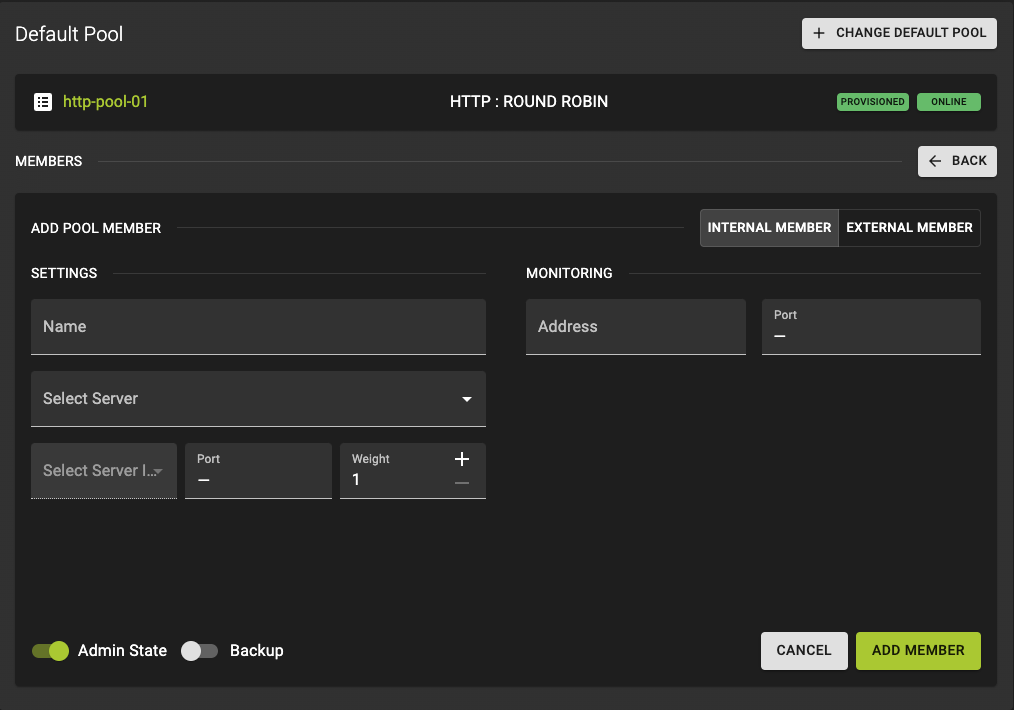

Pool Members Configurations
Pool Members are the servers the requests will be balanced between. To add a member to the pool click the Add Member button in the card title.
Settings:
-
Name and describe your Listener (optional).
-

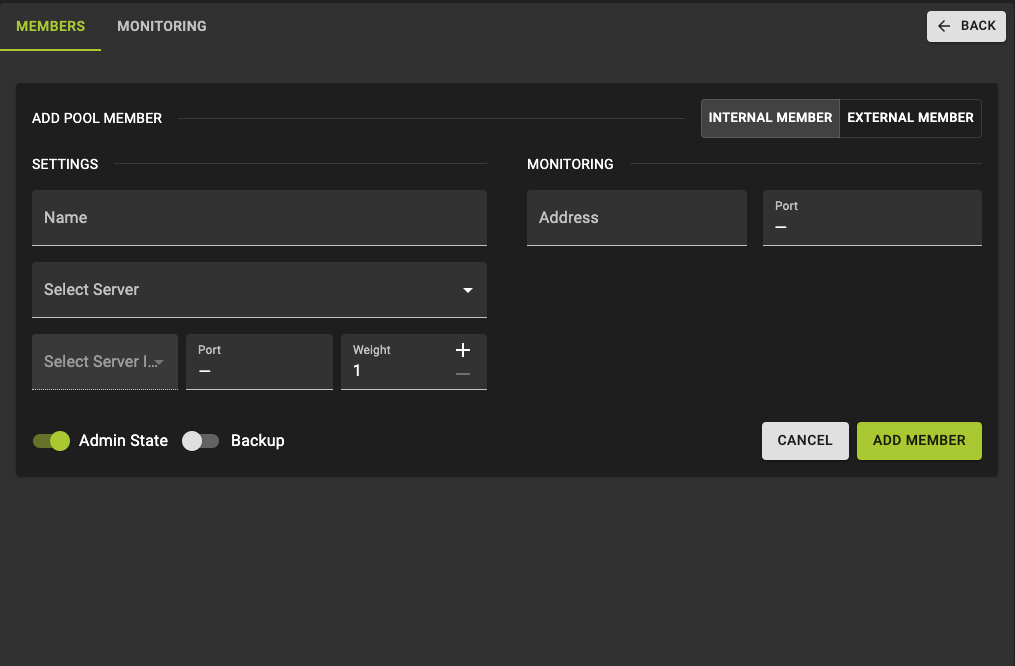

Select Server (required):
Select Server: Choose a server from the selector. If you do not have servers configured yet, you can do so here
-
Select Server IP (required)
- Choose a
From Server IPs
- Choose a
-
Select a
port(required) -
Choose
weight: A valid value is from 0 to 256. Default is 1.- The weight of a member determines the portion of requests or connections it services compared to the other members of the pool. A value of 0 means the member does not receive new connections but continues to seervice existing connections.
Monitoring:
IP-Address(Optional): An alternate IP address used for health monitoring a backend member. Default isnullwhich monitors the member address.Port(Optional): An alternate protocol port used for health monitoring a backend member. Default isnullwhich monitors the member protocol_port
Click Add Member button to confirm your configuration.

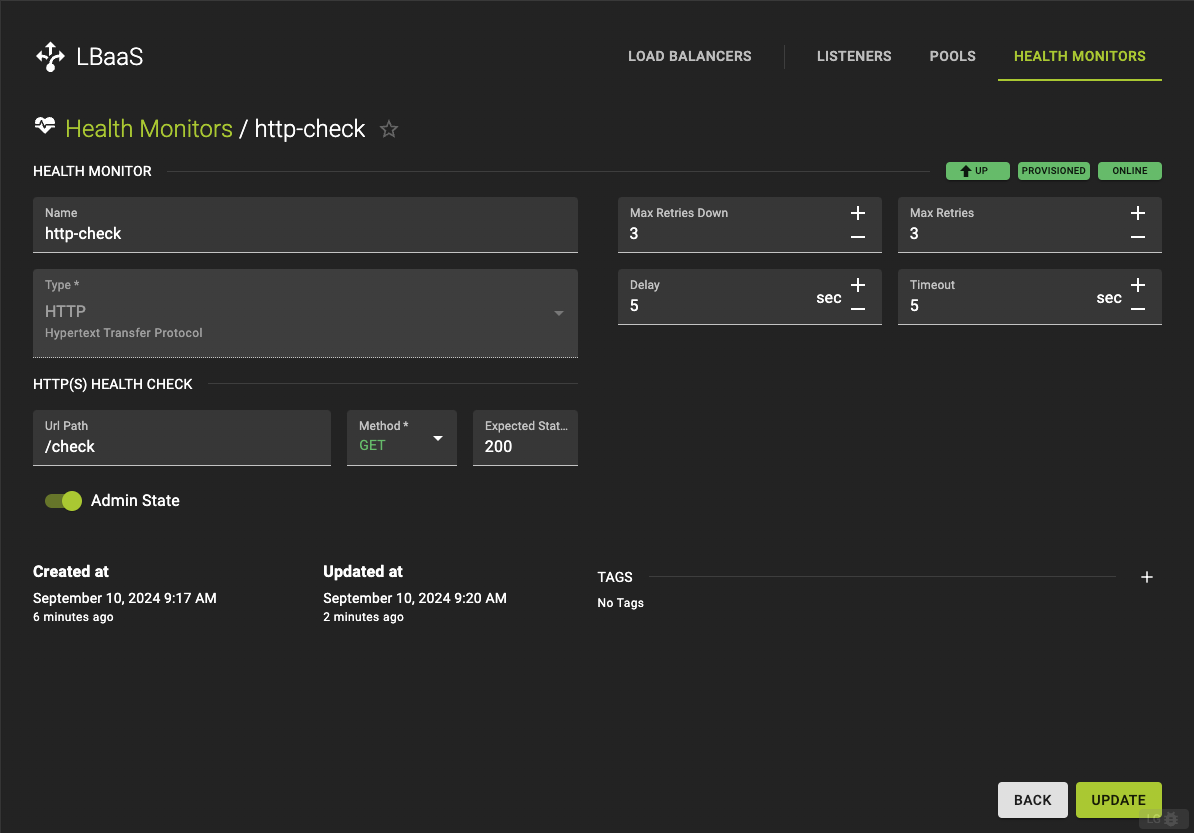

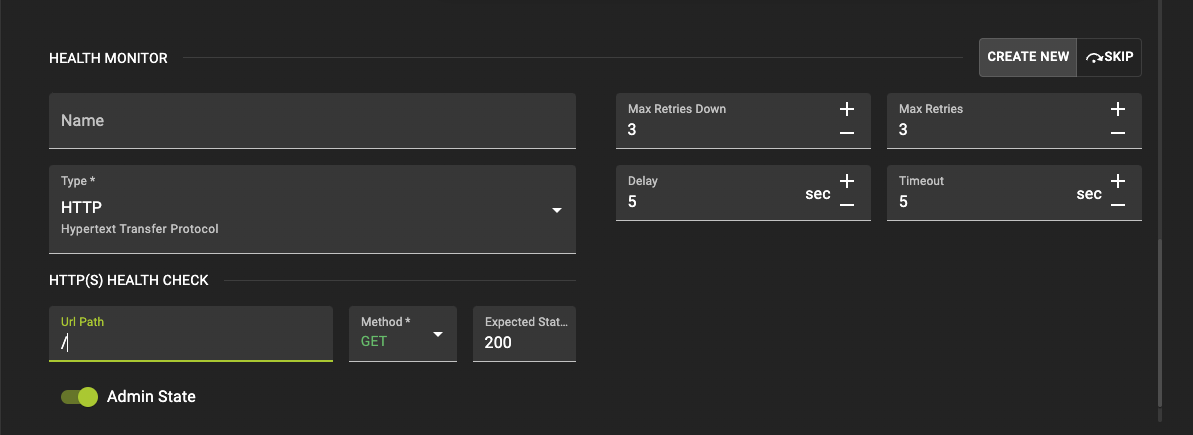

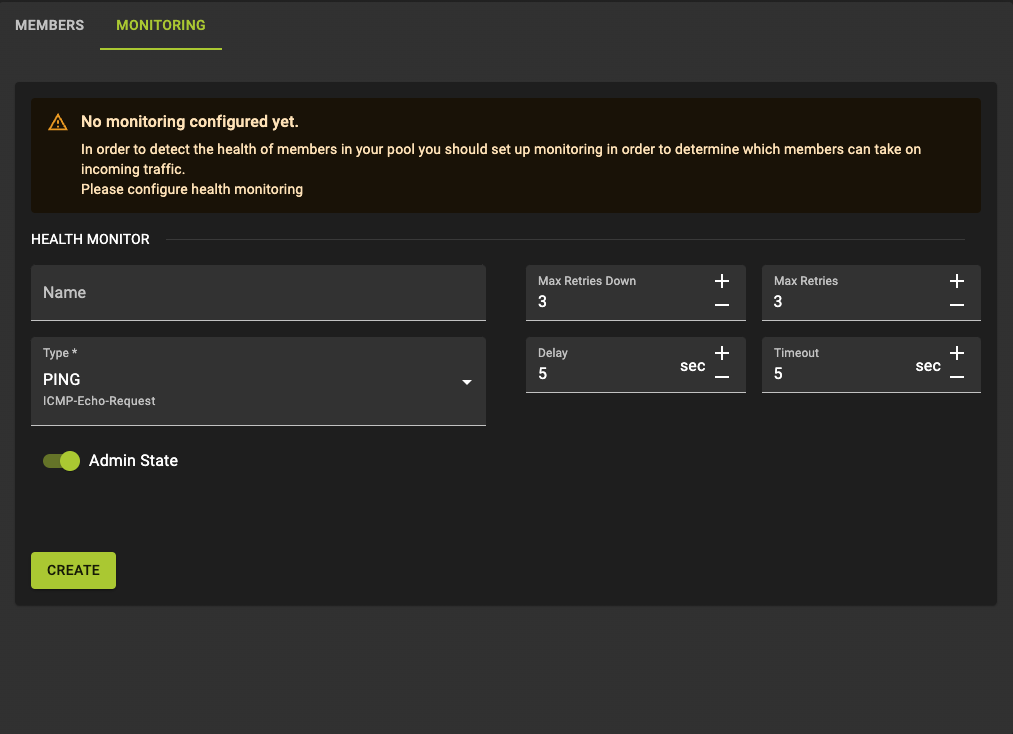

Health Monitor Configurations
Health monitors define how the load balancer monitors backend servers to determine if they are available to service requests. Health Monitor checks the health of the pool members by a certain type. You can Skip this step.
-
Name your Health Monitor (optional).
-
Type(required): Options are:HTTP,HTTPS,PING,TCPandTLS-HELLO.- When choosing
HTTPorHTTPS, you also have the choice of anULR-Path, aMethodand anExpected Statusto get back from the Health Check.
- When choosing
Click Add Load Balancer to trigger the creation of Load Balancer
Creation of Load Balancer with Listener, Pool, Poool Members and Health Monitoring
Usage
openstack loadbalancer create --name <LOADBALANCER_NAME> --vip-subnet-id <SUBNET_ID or SUBNET_NAME> --wait
openstack loadbalancer listener create --name <LISTENER_NAME> --protocol <PROTOCOL> --protocol-port <PORT> --wait <LOADBALANCER_NAME>
openstack loadbalancer pool create --name <POOL_NAME> --lb-algorithm <METHOD> --listener <LISTENER_NAME> --protocol <PROTOCOL> --wait
openstack loadbalancer healthmonitor create --delay <DELAY> --max-retries <MAX_RETRIES> --timeout <TIMEOUT> --type <TYPE> --url-path <URL_PATH> --wait <POOL_NAME>
openstack loadbalancer member create --subnet-id <SUBNET_ID or SUBNET_NAME> --address <ADDRESS> --protocol-port <PORT> --wait <POOL_NAME>
--name: The name you assign to your resources.--vip-subnet-id: The ID of the subnet where the virtual IP (VIP) of the load balancer will be created.--lb-algorithm: The load balancing method used (e.g., ROUND_ROBIN, LEAST_CONNECTIONS, SOURCE_IP).--protocol: The protocol used by the pool members (e.g., HTTP, HTTPS, TCP).--delay: The time in seconds between health checks.--max-retries: The number of failed health checks before a member is marked as unhealthy.--timeout: The maximum time in seconds that a health check is allowed to take.--type: The type of health check (e.g., HTTP, HTTPS, TCP).--url-path: The path that the health monitor will request (only for HTTP/HTTPS monitors).--address: The IP address of the pool member.--protocol-port: The port on which the pool member will accept traffic.--wait: awaits the creation of the prior resource in order to use it for creation of the next one.
Example
openstack loadbalancer create --name lb-02 --vip-subnet-id private-subnet-01 --wait
openstack loadbalancer listener create --name list-02 --protocol HTTP --protocol-port 80 --wait lb-02
openstack loadbalancer pool create --name pl-02 --lb-algorithm ROUND_ROBIN --listener list-02 --protocol HTTP --wait
openstack loadbalancer healthmonitor create --delay 10 --max-retries 3 --timeout 5 --type HTTP --url-path /healthcheck --wait pl-02
openstack loadbalancer member create --subnet-id private-subnet-01 --address 192.0.2.199 --protocol-port 80 --wait pl-02
openstack loadbalancer member create --subnet-id private-subnet-01 --address 192.0.2.241 --protocol-port 80 --wait pl-02
Output
+---------------------+--------------------------------------+
| Field | Value |
+---------------------+--------------------------------------+
| admin_state_up | True |
| availability_zone | None |
| created_at | 2024-08-21T11:50:59 |
| description | |
| flavor_id | None |
| id | ac65773e-dc13-4ab3-ab98-dd25f7dd692a |
| listeners | |
| name | lb-02 |
| operating_status | ONLINE |
| pools | |
| project_id | 0c12ce74a0084c0b8fef8e15d4a3377d |
| provider | amphorav2 |
| provisioning_status | ACTIVE |
| updated_at | 2024-08-21T11:52:21 |
| vip_address | 192.0.2.100 |
| vip_network_id | 245a6750-77c5-4701-8df3-4b4ac55295d3 |
| vip_port_id | 7dc23137-9053-4c80-927c-eec82f01e61e |
| vip_qos_policy_id | None |
| vip_subnet_id | a7d7e676-d668-4ec7-8b7d-3c28f68caab3 |
| vip_vnic_type | normal |
| tags | |
| additional_vips | |
+---------------------+--------------------------------------+
+-----------------------------+--------------------------------------+
| Field | Value |
+-----------------------------+--------------------------------------+
| admin_state_up | True |
| connection_limit | -1 |
| created_at | 2024-08-21T11:52:24 |
| default_pool_id | None |
| default_tls_container_ref | None |
| description | |
| id | 3e54033a-9a7e-4485-a93c-06d3770aed89 |
| insert_headers | None |
| l7policies | |
| loadbalancers | ac65773e-dc13-4ab3-ab98-dd25f7dd692a |
| name | list-02 |
| operating_status | OFFLINE |
| project_id | 0c12ce74a0084c0b8fef8e15d4a3377d |
| protocol | HTTP |
| protocol_port | 80 |
| provisioning_status | ACTIVE |
| sni_container_refs | [] |
| timeout_client_data | 50000 |
| timeout_member_connect | 5000 |
| timeout_member_data | 50000 |
| timeout_tcp_inspect | 0 |
| updated_at | 2024-08-21T11:52:27 |
| client_ca_tls_container_ref | None |
| client_authentication | NONE |
| client_crl_container_ref | None |
| allowed_cidrs | None |
| tls_ciphers | None |
| tls_versions | None |
| alpn_protocols | None |
| tags | |
| hsts_max_age | |
| hsts_include_subdomains | |
| hsts_preload | |
+-----------------------------+--------------------------------------+
+----------------------+--------------------------------------+
| Field | Value |
+----------------------+--------------------------------------+
| admin_state_up | True |
| created_at | 2024-08-21T11:52:28 |
| description | |
| healthmonitor_id | |
| id | 96baea90-9655-4c83-829e-9ce4603af087 |
| lb_algorithm | ROUND_ROBIN |
| listeners | 3e54033a-9a7e-4485-a93c-06d3770aed89 |
| loadbalancers | ac65773e-dc13-4ab3-ab98-dd25f7dd692a |
| members | |
| name | pl-02 |
| operating_status | ONLINE |
| project_id | 0c12ce74a0084c0b8fef8e15d4a3377d |
| protocol | HTTP |
| provisioning_status | ACTIVE |
| session_persistence | None |
| updated_at | 2024-08-21T11:52:30 |
| tls_container_ref | None |
| ca_tls_container_ref | None |
| crl_container_ref | None |
| tls_enabled | False |
| tls_ciphers | None |
| tls_versions | None |
| tags | |
| alpn_protocols | None |
+----------------------+--------------------------------------+
+---------------------+--------------------------------------+
| Field | Value |
+---------------------+--------------------------------------+
| project_id | 0c12ce74a0084c0b8fef8e15d4a3377d |
| name | |
| admin_state_up | True |
| pools | 96baea90-9655-4c83-829e-9ce4603af087 |
| created_at | 2024-08-21T11:52:33 |
| provisioning_status | ACTIVE |
| updated_at | 2024-08-21T11:52:34 |
| delay | 10 |
| expected_codes | 200 |
| max_retries | 3 |
| http_method | GET |
| timeout | 5 |
| max_retries_down | 3 |
| url_path | /healthcheck |
| type | HTTP |
| id | 822d63f0-eac5-4703-a914-0a9d9dd951b1 |
| operating_status | ONLINE |
| http_version | None |
| domain_name | None |
| tags | |
+---------------------+--------------------------------------+
+---------------------+--------------------------------------+
| Field | Value |
+---------------------+--------------------------------------+
| address | 192.0.2.199 |
| admin_state_up | True |
| created_at | 2024-08-21T11:52:39 |
| id | 7d29fa9d-e6f6-4f99-97ed-8463f4f0ae87 |
| name | |
| operating_status | ONLINE |
| project_id | 0c12ce74a0084c0b8fef8e15d4a3377d |
| protocol_port | 80 |
| provisioning_status | ACTIVE |
| subnet_id | a7d7e676-d668-4ec7-8b7d-3c28f68caab3 |
| updated_at | 2024-08-21T11:52:41 |
| weight | 1 |
| monitor_port | None |
| monitor_address | None |
| backup | False |
| tags | |
+---------------------+--------------------------------------+
+---------------------+--------------------------------------+
| Field | Value |
+---------------------+--------------------------------------+
| address | 192.0.2.241 |
| admin_state_up | True |
| created_at | 2024-08-21T11:52:44 |
| id | 7588e444-8c1a-4e95-a10c-7069fa5df27c |
| name | |
| operating_status | ONLINE |
| project_id | 0c12ce74a0084c0b8fef8e15d4a3377d |
| protocol_port | 80 |
| provisioning_status | ACTIVE |
| subnet_id | a7d7e676-d668-4ec7-8b7d-3c28f68caab3 |
| updated_at | 2024-08-21T11:52:47 |
| weight | 1 |
| monitor_port | None |
| monitor_address | None |
| backup | False |
| tags | |
+---------------------+--------------------------------------+
Single Load balancer Creation
Usage
openstack loadbalancer create --name my_loadbalancer --vip-subnet-id <SUBNET_ID>
Example
openstack loadbalancer create --name example-loadbalancer --vip-subnet-id a7d7e676-d668-4ec7-8b7d-3c28f68caab3
Output
openstack loadbalancer show example-loadbalancer
+---------------------+--------------------------------------+
| Field | Value |
+---------------------+--------------------------------------+
| admin_state_up | True |
| availability_zone | None |
| created_at | 2024-08-21T08:23:05 |
| description | |
| flavor_id | None |
| id | 4f7bb7f1-ba9b-4eee-b403-fd0024cb2f76 |
| listeners | |
| name | example-loadbalancer |
| operating_status | ONLINE |
| pools | |
| project_id | 0c12ce74a0084c0b8fef8e15d4a3377d |
| provider | amphorav2 |
| provisioning_status | ACTIVE |
| updated_at | 2024-08-21T08:24:27 |
| vip_address | 192.0.2.157 |
| vip_network_id | 245a6750-77c5-4701-8df3-4b4ac55295d3 |
| vip_port_id | 9242b952-30fd-48f9-bbda-9424b22c516d |
| vip_qos_policy_id | None |
| vip_subnet_id | a7d7e676-d668-4ec7-8b7d-3c28f68caab3 |
| vip_vnic_type | normal |
| tags | |
| additional_vips | |
+---------------------+--------------------------------------+
Example: Create complete Load Balancer
# Terraform Provider configuration
terraform {
required_providers {
openstack = {
source = "terraform-provider-openstack/openstack"
}
}
}
# Network configuration
data "openstack_networking_network_v2" "ext_net" {
name = "ext-net"
}
resource "openstack_networking_network_v2" "network" {
name = "net"
admin_state_up = "true"
}
resource "openstack_networking_subnet_v2" "network" {
name = "subnet"
network_id = openstack_networking_network_v2.network.id
cidr = "10.20.30.0/24"
ip_version = 4
enable_dhcp = "true"
dns_nameservers = ["1.1.1.1", "8.8.8.8"]
}
resource "openstack_networking_router_v2" "network" {
name = "router"
admin_state_up = "true"
external_network_id = data.openstack_networking_network_v2.ext_net.id
}
resource "openstack_networking_router_interface_v2" "network" {
router_id = openstack_networking_router_v2.network.id
subnet_id = openstack_networking_subnet_v2.network.id
}
# Create loadbalancer
resource "openstack_lb_loadbalancer_v2" "http" {
name = "lb1"
vip_subnet_id = openstack_networking_subnet_v2.network.id
}
# Create listener
resource "openstack_lb_listener_v2" "http" {
name = "lb-http-listener"
protocol = "TCP"
protocol_port = 80
loadbalancer_id = openstack_lb_loadbalancer_v2.http.id
}
# Create pool
resource "openstack_lb_pool_v2" "http" {
name = "lb-http-pool"
protocol = "TCP"
lb_method = "ROUND_ROBIN"
listener_id = openstack_lb_listener_v2.http.id
}
# Create health monitor
resource "openstack_lb_monitor_v2" "monitor" {
pool_id = openstack_lb_pool_v2.http.id
type = "HTTP"
delay = 20
timeout = 10
max_retries = 3
}
# Get floating IP
resource "openstack_networking_floatingip_v2" "floatingip_1" {
pool = "ext-net"
}
# Associate floating IP to LoadBalancer
resource "openstack_networking_floatingip_associate_v2" "floatip_1" {
floating_ip = openstack_networking_floatingip_v2.floatingip_1.address
port_id = openstack_lb_loadbalancer_v2.http.vip_port_id
}
Example: Create only Load Balancer
# Terraform Provider configuration
terraform {
required_providers {
openstack = {
source = "terraform-provider-openstack/openstack"
}
}
}
# Network configuration
data "openstack_networking_network_v2" "ext_net" {
name = "ext-net"
}
resource "openstack_networking_network_v2" "network" {
name = "net"
admin_state_up = "true"
}
resource "openstack_networking_subnet_v2" "network" {
name = "subnet"
network_id = openstack_networking_network_v2.network.id
cidr = "10.20.30.0/24"
ip_version = 4
enable_dhcp = "true"
dns_nameservers = ["1.1.1.1", "8.8.8.8"]
}
resource "openstack_networking_router_v2" "network" {
name = "router"
admin_state_up = "true"
external_network_id = data.openstack_networking_network_v2.ext_net.id
}
resource "openstack_networking_router_interface_v2" "network" {
router_id = openstack_networking_router_v2.network.id
subnet_id = openstack_networking_subnet_v2.network.id
}
# Create loadbalancer
resource "openstack_lb_loadbalancer_v2" "http" {
name = "lb1"
vip_subnet_id = openstack_networking_subnet_v2.network.id
}
Update Load Balancer

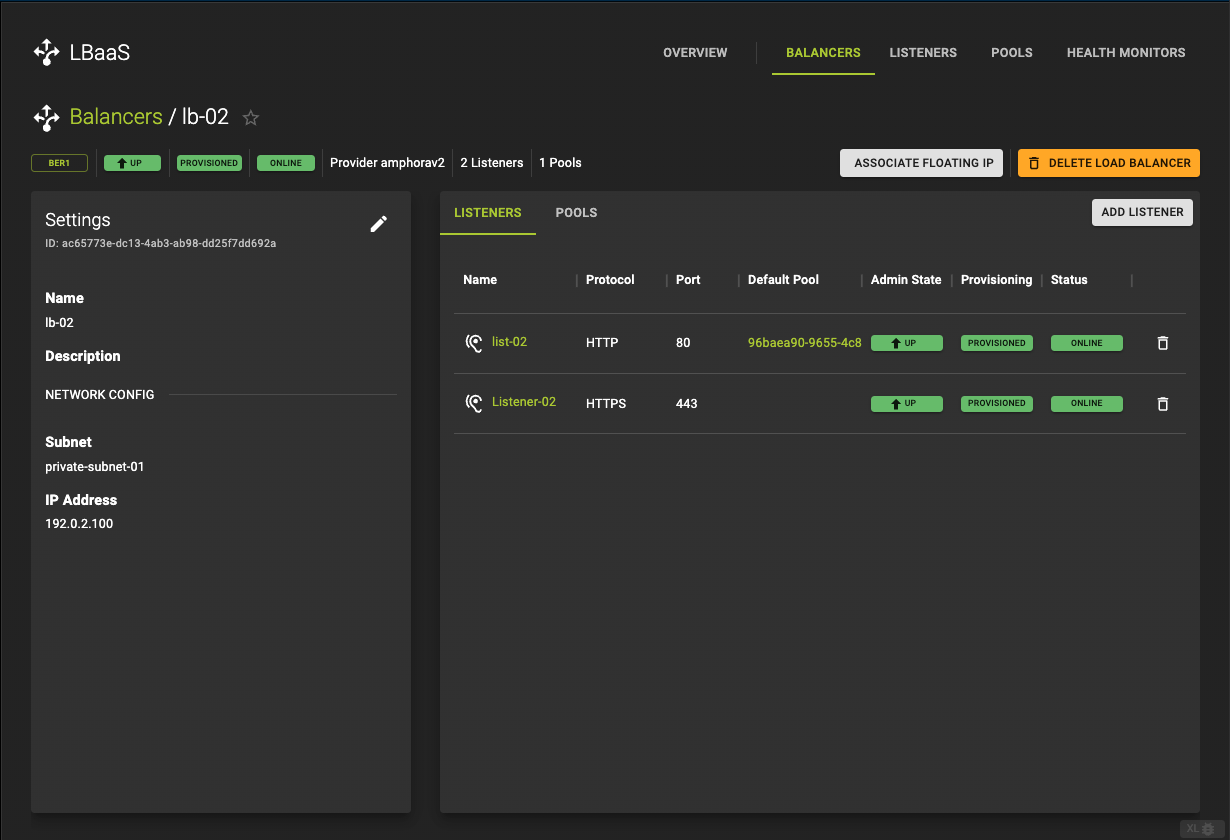

To update a load balancer go to detail view by clicking the in the Load Balancer list or card view.
In the detail view you find basic information in the settings card and information about Listeners and Pools under the Listener and Pools tabs in the resource card.

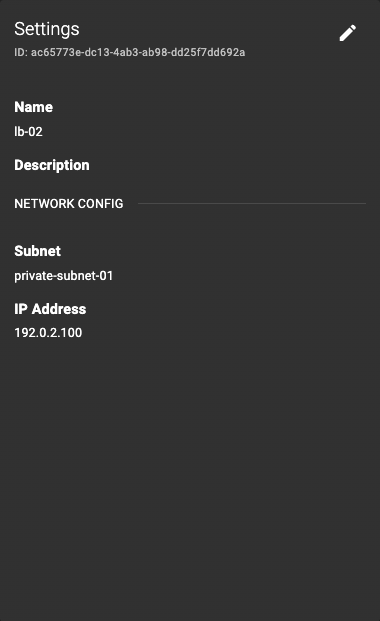

Settings Card

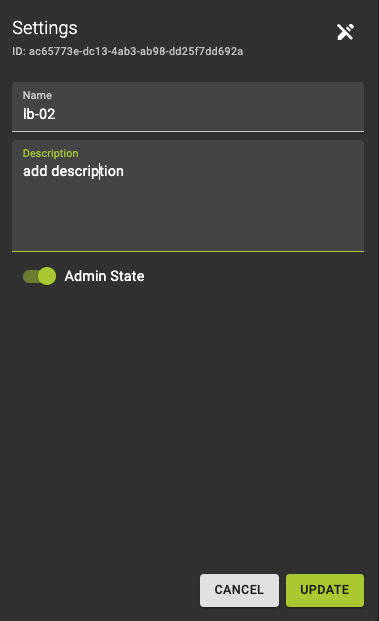

Enter edit mode by clicking the button.
Now you are able to change the
Name and Description of your load balancer as well as toggle the admin state
Confirm changes by clicking Update
Listeners Tab
The listener directs incoming requests to a pool of backend servers.

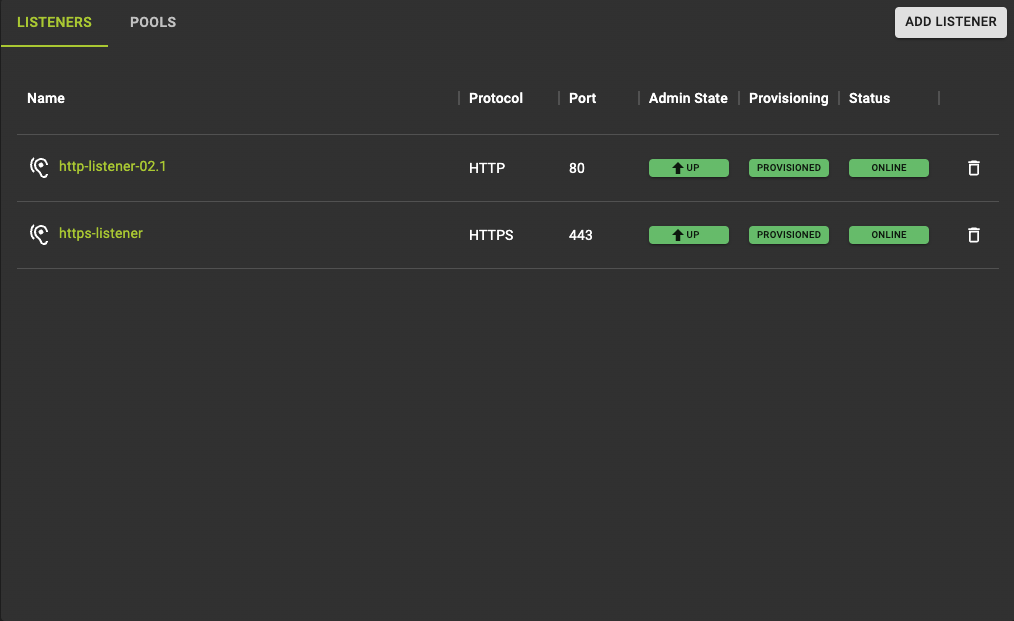

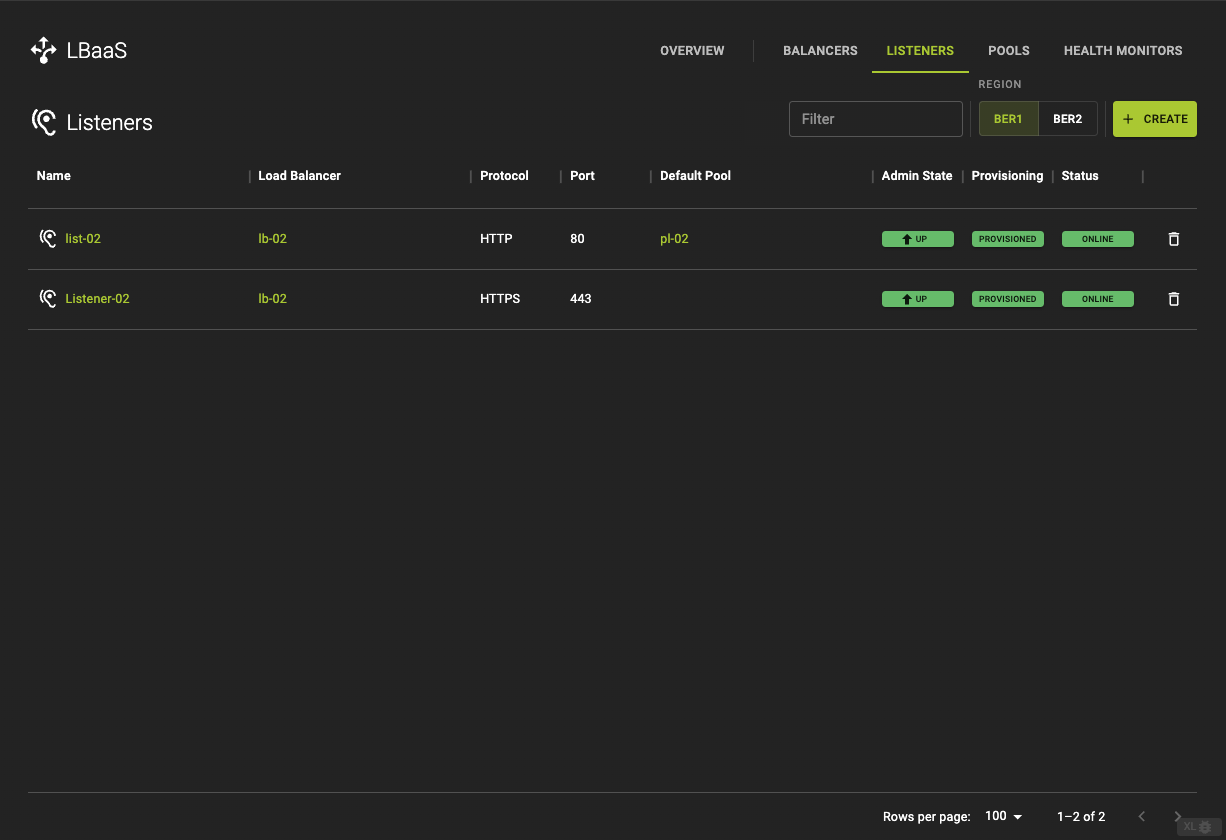

The listeners tab lists all listeners connected to your load balancer. You also find information such as:
- The
protocol, - The
portit is listening on - The
stateit currently is in.
By clicking Add Listener you will reach the listener creation form with the loadbalancer you are currently editing preselected.

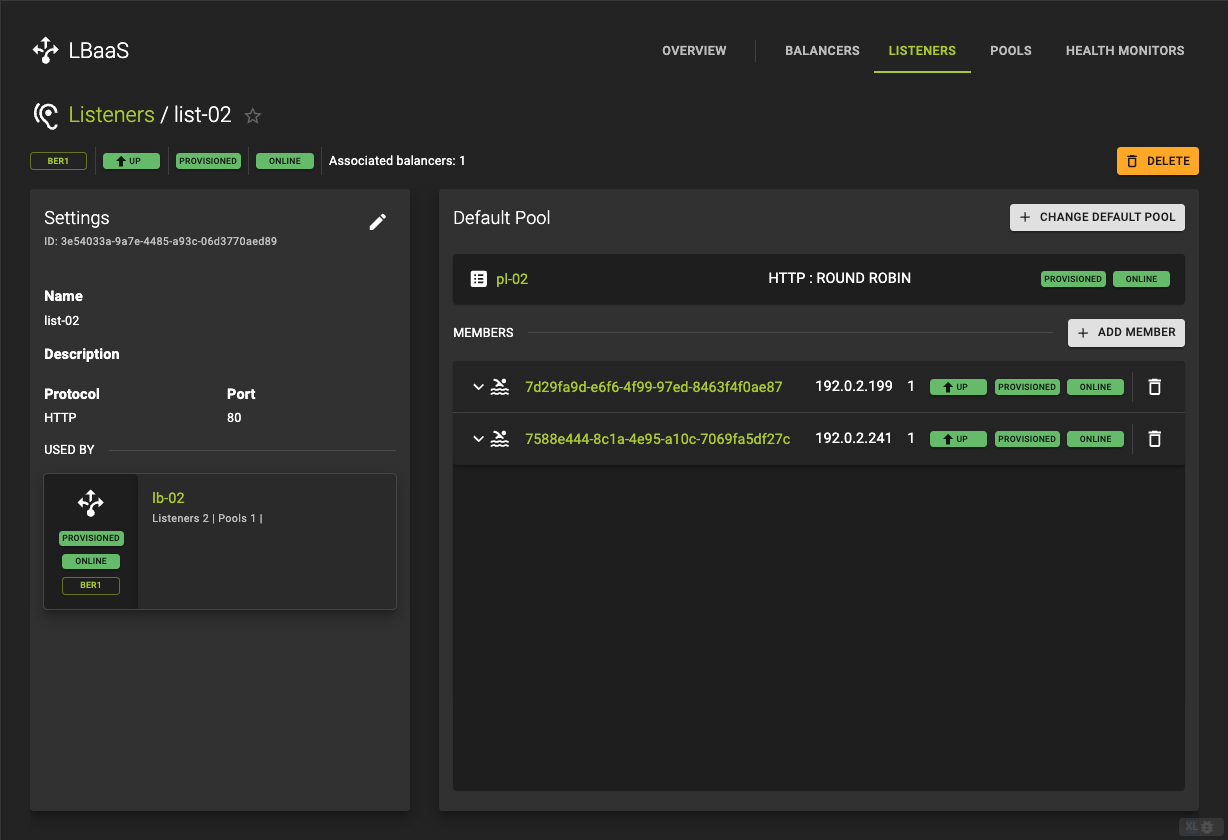

If you click the listener name you reach the listener details view where you can make changes to the listener itself.

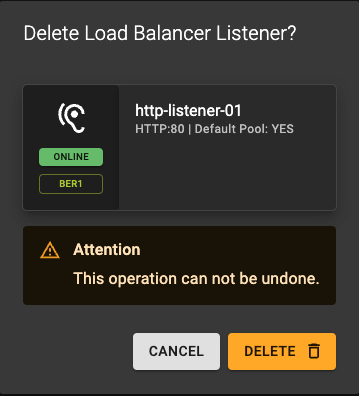

If you want to delete your listener click the icon in the end of each row. If you want to delete your listener click the icon in the end of each row.
Pools Tab

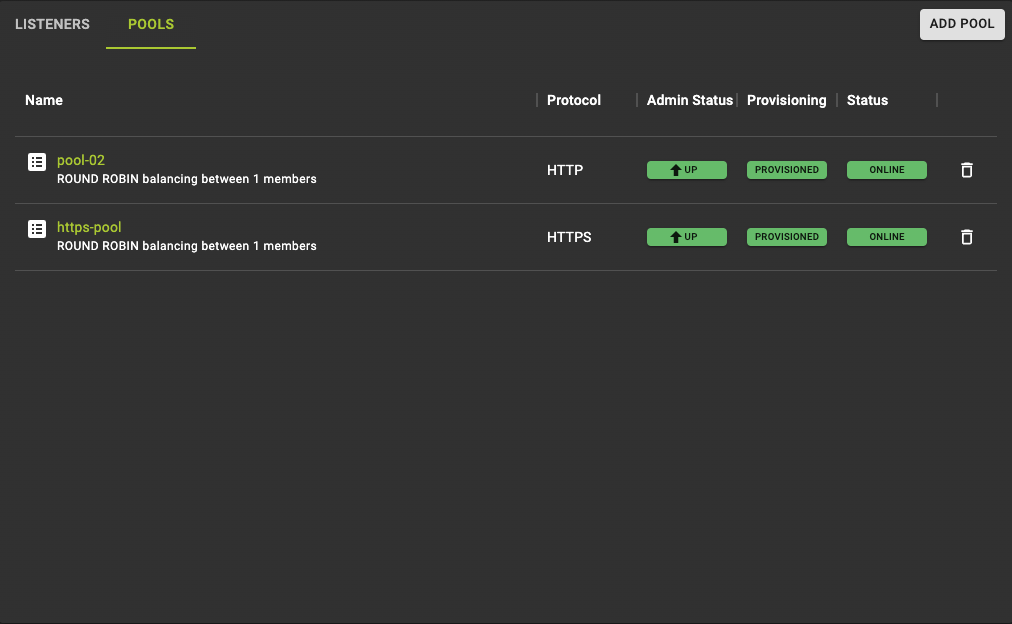

The pool consists of multiple servers that the load balancer distributes traffic to.

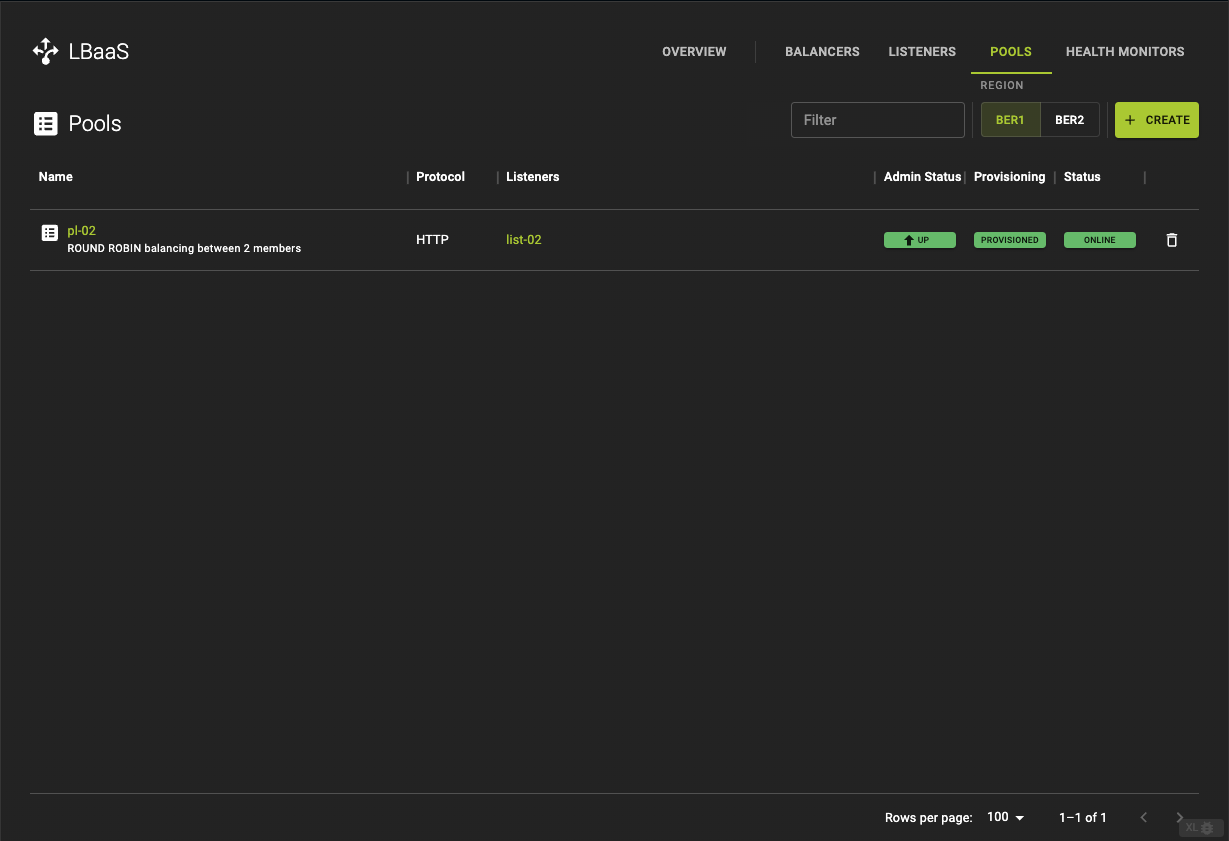

The pools tab lists all pools connected to your load balancer. Each pool is connected to one listener. You also find information such as:
- The
protocol, - The
statethe pool currently is in.
By clicking Add Pool you will reach the pool creation form with the option to either choose a load balancer or to choose a listener if there is a llistener without a default pool.
If you click the pool name you reach the pool details view where you can make changes to the pool itself.
If you want to delete your pool click the icon in the end of each row.
You can update the values of the loadbalancer object by adding a --flag with the key name. In the example we change the load balancers name. You could add more than one flag.
Configure CLI Usage
openstack loadbalancer set <LOADBALANCER_ID or LOADBALANCER_NAME> --name <NAME>
Example
+--------------------------------------+-------------+----------------------------------+-------------+---------------------+------------------+-----------+
| id | name | project_id | vip_address | provisioning_status | operating_status | provider |
+--------------------------------------+-------------+----------------------------------+-------------+---------------------+------------------+-----------+
| 9a444163-db45-426c-ab04-cc006e6374ff | balancer-02 | 0c12ce74a0084c0b8fef8e15d4a3377d | 20.0.0.58 | ACTIVE | ONLINE | amphorav2 |
+--------------------------------------+-------------+----------------------------------+-------------+---------------------+------------------+-----------+
openstack loadbalancer set 9a444163-db45-426c-ab04-cc006e6374ff --name balancer-02_updated
Output
openstack loadbalancer list
+--------------------------------------+---------------------+----------------------------------+-------------+---------------------+------------------+-----------+
| id | name | project_id | vip_address | provisioning_status | operating_status | provider |
+--------------------------------------+---------------------+----------------------------------+-------------+---------------------+------------------+-----------+
| 9a444163-db45-426c-ab04-cc006e6374ff | balancer-02_updated | 0c12ce74a0084c0b8fef8e15d4a3377d | 20.0.0.58 | ACTIVE | ONLINE | amphorav2 |
+--------------------------------------+---------------------+----------------------------------+-------------+---------------------+------------------+-----------+
Example
# Terraform Provider configuration
terraform {
required_providers {
openstack = {
source = "terraform-provider-openstack/openstack"
}
}
}
# Network configuration
data "openstack_networking_network_v2" "ext_net" {
name = "ext-net"
}
resource "openstack_networking_network_v2" "network" {
name = "net"
admin_state_up = "true"
}
resource "openstack_networking_subnet_v2" "network" {
name = "subnet"
network_id = openstack_networking_network_v2.network.id
cidr = "10.20.30.0/24"
ip_version = 4
enable_dhcp = "true"
dns_nameservers = ["1.1.1.1", "8.8.8.8"]
}
resource "openstack_networking_router_v2" "network" {
name = "router"
admin_state_up = "true"
external_network_id = data.openstack_networking_network_v2.ext_net.id
}
resource "openstack_networking_router_interface_v2" "network" {
router_id = openstack_networking_router_v2.network.id
subnet_id = openstack_networking_subnet_v2.network.id
}
# Create loadbalancer
resource "openstack_lb_loadbalancer_v2" "http" {
name = "lb1"
vip_subnet_id = openstack_networking_subnet_v2.network.id
}
# Create listener
resource "openstack_lb_listener_v2" "http" {
name = "lb-http-listener"
protocol = "TCP"
protocol_port = 80
loadbalancer_id = openstack_lb_loadbalancer_v2.http.id
}
# Create pool
resource "openstack_lb_pool_v2" "http" {
name = "lb-http-pool"
protocol = "TCP"
lb_method = "ROUND_ROBIN"
listener_id = openstack_lb_listener_v2.http.id
}
# Create health monitor
resource "openstack_lb_monitor_v2" "monitor" {
pool_id = openstack_lb_pool_v2.http.id
type = "HTTP"
delay = 20
timeout = 10
max_retries = 3
}
# Get floating IP
resource "openstack_networking_floatingip_v2" "floatingip_1" {
pool = "ext-net"
}
# Associate floating IP to LoadBalancer
resource "openstack_networking_floatingip_associate_v2" "floatip_1" {
floating_ip = openstack_networking_floatingip_v2.floatingip_1.address
port_id = openstack_lb_loadbalancer_v2.http.vip_port_id
}
Delete Load Balancer

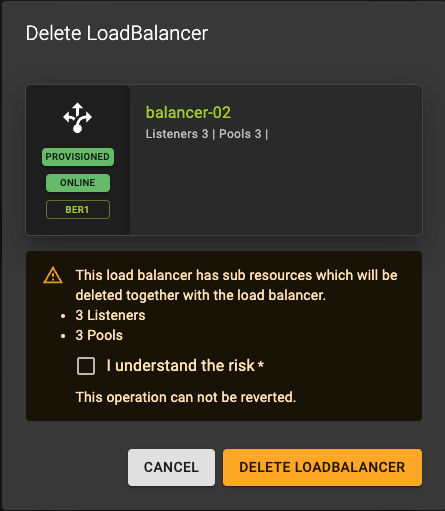

You can delete a Load Balancers in two ways:
- From the list view click the icon.
- From the details view click the DELETE option at the top of the page.
Check the checkbox and click Delete Loadbalancer
Usage
openstack loadbalancer delete <LOADBALANCER_ID or LOADBALANCER_NAME>
Example
openstack loadbalancer list
+--------------------------------------+-------------+----------------------------------+-------------+---------------------+------------------+-----------+
| id | name | project_id | vip_address | provisioning_status | operating_status | provider |
+--------------------------------------+-------------+----------------------------------+-------------+---------------------+------------------+-----------+
| 9f9102c6-9506-4c77-9fd3-82abbffe654d | balancer-01 | 0c12ce74a0084c0b8fef8e15d4a3377d | 192.0.2.54 | ACTIVE | ONLINE | amphorav2 |
| 9a444163-db45-426c-ab04-cc006e6374ff | balancer-02 | 0c12ce74a0084c0b8fef8e15d4a3377d | 20.0.0.58 | ACTIVE | ONLINE | amphorav2 |
| a2080e5f-f393-4cc9-95ba-e859bbb1c8e5 | balancer-03 | 0c12ce74a0084c0b8fef8e15d4a3377d | 20.0.0.170 | ACTIVE | ONLINE | amphorav2 |
| 3fa3312f-b07b-4b32-a407-d85cb48fd94c | balancer-04 | 0c12ce74a0084c0b8fef8e15d4a3377d | 100.0.0.11 | ACTIVE | ONLINE | amphorav2 |
+--------------------------------------+-------------+----------------------------------+-------------+---------------------+------------------+-----------+
openstack loadbalancer delete a2080e5f-f393-4cc9-95ba-e859bbb1c8e5
Output
openstack loadbalancer list
+--------------------------------------+-------------+----------------------------------+-------------+---------------------+------------------+-----------+
| id | name | project_id | vip_address | provisioning_status | operating_status | provider |
+--------------------------------------+-------------+----------------------------------+-------------+---------------------+------------------+-----------+
| 9f9102c6-9506-4c77-9fd3-82abbffe654d | balancer-01 | 0c12ce74a0084c0b8fef8e15d4a3377d | 192.0.2.54 | ACTIVE | ONLINE | amphorav2 |
| 9a444163-db45-426c-ab04-cc006e6374ff | balancer-02 | 0c12ce74a0084c0b8fef8e15d4a3377d | 20.0.0.58 | ACTIVE | ONLINE | amphorav2 |
| 3fa3312f-b07b-4b32-a407-d85cb48fd94c | balancer-04 | 0c12ce74a0084c0b8fef8e15d4a3377d | 100.0.0.11 | ACTIVE | ONLINE | amphorav2 |
+--------------------------------------+-------------+----------------------------------+-------------+---------------------+------------------+-----------+
Example
Log forwarding
Logs from Load Balancers can be forwarded to Provisioned Observability. Log forwarding can be enabled by setting the tag sys11_provisioned_logs on the Load Balancer resource.
Configure CLI Usage
openstack loadbalancer set --tag sys11_provisioned_logs

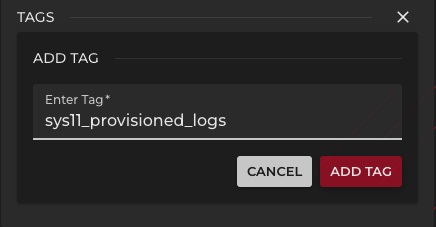

To create a new tag click the plus button and enter sys11_provisioned_logs as tag name. Click Add Tag to add the tag to the Load Balancer and activate the log forwarding
BETA
Log forwarding is currently in BETA state and subject to further changes.
Manage Listeners
List Listeners
The get a list of all listeners click the LISTENERS in the title bar
Configure CLI Usage
openstack loadbalancer list
Output
+--------------------------------------+-------------+----------------------------------+-------------+---------------------+------------------+-----------+
| id | name | project_id | vip_address | provisioning_status | operating_status | provider |
+--------------------------------------+-------------+----------------------------------+-------------+---------------------+------------------+-----------+
| 9f9102c6-9506-4c77-9fd3-82abbffe654d | balancer-01 | 0c12ce74a0084c0b8fef8e15d4a3377d | 192.0.2.54 | ACTIVE | ONLINE | amphorav2 |
| 9a444163-db45-426c-ab04-cc006e6374ff | balancer-02 | 0c12ce74a0084c0b8fef8e15d4a3377d | 20.0.0.58 | ACTIVE | ONLINE | amphorav2 |
+--------------------------------------+-------------+----------------------------------+-------------+---------------------+------------------+-----------+
Create Listener
A listener is a configuration that specifies the protocol and port on which the load balancer will listen for incoming requests. For instance, you can create a listener that listens on port 80 for HTTP traffic or on port 443 for HTTPS traffic. The listener is responsible for receiving traffic and passing it to the appropriate backend pool based on the load balancing rules.
To create a Listener navigate to the Listeners Tab and click the Create button in the titlebar.
-
Name and describe your Listener (optional).
-
Protocol (required):
- Choose a
Protocol. Options areTCP,HTTPandHTTPs
- Choose a
-
Port (required)
- Define a
Port
- Define a
Expert Settings
The expert settings allow you to define
-
Client Data Timeout -
TCP Inspection Timeout -
Member Connection Timeout -
Member Data Timeout -
Connection Limit
If you choose HTTP or HTTPs as protocols you also have the option to define Insert Headers such as
-
X-Forwarded-For -
X-Forwarded-Port -
X-Forwarded-Porto
Skip the next steps by clicking Skip in order to only create a Listener.
Click Create Listener to trigger the creation of a Listener
Configure CLI Usage
openstack loadbalancer listener create --name <LISTENER_NAME> --protocol <PROTOCOL> --protocol-port 80 <LOADBALANCER_NAME or LOADBALANCER_ID>
--name: The name of the listener.--protocol: The protocol used by the listener (e.g., HTTP, HTTPS, TCP).--protocol-port: The port on which the listener will accept traffic.--loadbalancer: The name or ID of the load balancer to which this listener will be attached.
Example
openstack loadbalancer listener create --name example-listener --protocol HTTP --protocol-port 80 example-lb
Output
openstack loadbalancer listener show example-listener
+-----------------------------+--------------------------------------+
| Field | Value |
+-----------------------------+--------------------------------------+
| admin_state_up | True |
| connection_limit | -1 |
| created_at | 2024-08-21T08:08:35 |
| default_pool_id | None |
| default_tls_container_ref | None |
| description | |
| id | 9257cf12-3a6c-4e2a-a486-ea45a43888c0 |
| insert_headers | None |
| l7policies | |
| loadbalancers | 3ae8541d-76e7-4b15-aaaa-ef749db5f761 |
| name | example-listener |
| operating_status | ONLINE |
| project_id | 0c12ce74a0084c0b8fef8e15d4a3377d |
| protocol | HTTP |
| protocol_port | 80 |
| provisioning_status | ACTIVE |
| sni_container_refs | [] |
| timeout_client_data | 50000 |
| timeout_member_connect | 5000 |
| timeout_member_data | 50000 |
| timeout_tcp_inspect | 0 |
| updated_at | 2024-08-21T08:08:40 |
| client_ca_tls_container_ref | None |
| client_authentication | NONE |
| client_crl_container_ref | None |
| allowed_cidrs | None |
| tls_ciphers | None |
| tls_versions | None |
| alpn_protocols | None |
| tags | |
| hsts_max_age | |
| hsts_include_subdomains | |
| hsts_preload | |
+-----------------------------+--------------------------------------+
Example
# Terraform Provider configuration
terraform {
required_providers {
openstack = {
source = "terraform-provider-openstack/openstack"
}
}
}
# Network configuration
data "openstack_networking_network_v2" "ext_net" {
name = "ext-net"
}
resource "openstack_networking_network_v2" "network" {
name = "net"
admin_state_up = "true"
}
resource "openstack_networking_subnet_v2" "network" {
name = "subnet"
network_id = openstack_networking_network_v2.network.id
cidr = "10.20.30.0/24"
ip_version = 4
enable_dhcp = "true"
dns_nameservers = ["1.1.1.1", "8.8.8.8"]
}
resource "openstack_networking_router_v2" "network" {
name = "router"
admin_state_up = "true"
external_network_id = data.openstack_networking_network_v2.ext_net.id
}
resource "openstack_networking_router_interface_v2" "network" {
router_id = openstack_networking_router_v2.network.id
subnet_id = openstack_networking_subnet_v2.network.id
}
# Create loadbalancer
resource "openstack_lb_loadbalancer_v2" "http" {
name = "lb1"
vip_subnet_id = openstack_networking_subnet_v2.network.id
}
# Create listener
resource "openstack_lb_listener_v2" "http" {
name = "lb-http-listener"
protocol = "TCP"
protocol_port = 80
loadbalancer_id = openstack_lb_loadbalancer_v2.http.id
}
Update Listeners

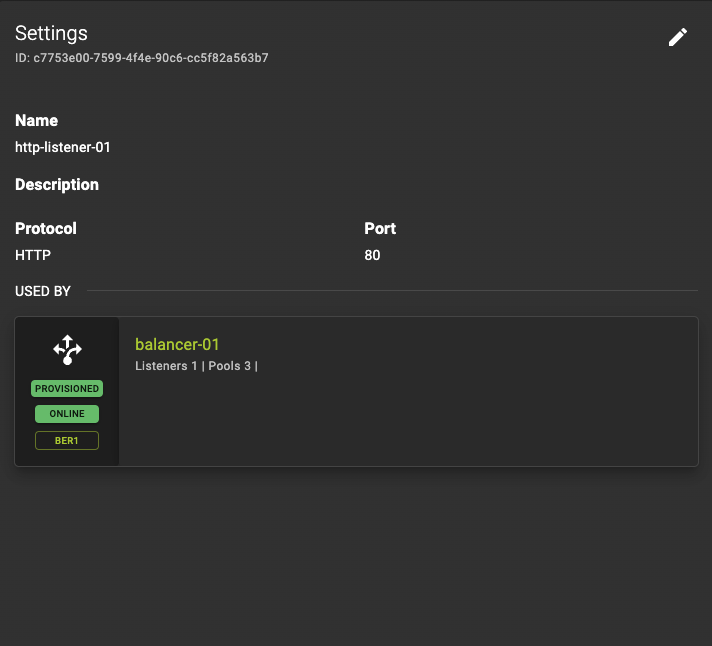

In the listeners detail view you find basic information in the settings card and information about Pools and Pool Members in the default pool card.
Settings Card
Enter edit mode by clicking the button.
Now you are able to change the
Name and Description of your listener as well as toggle the admin state
Confirm changes by clicking Update
Default Pool Card

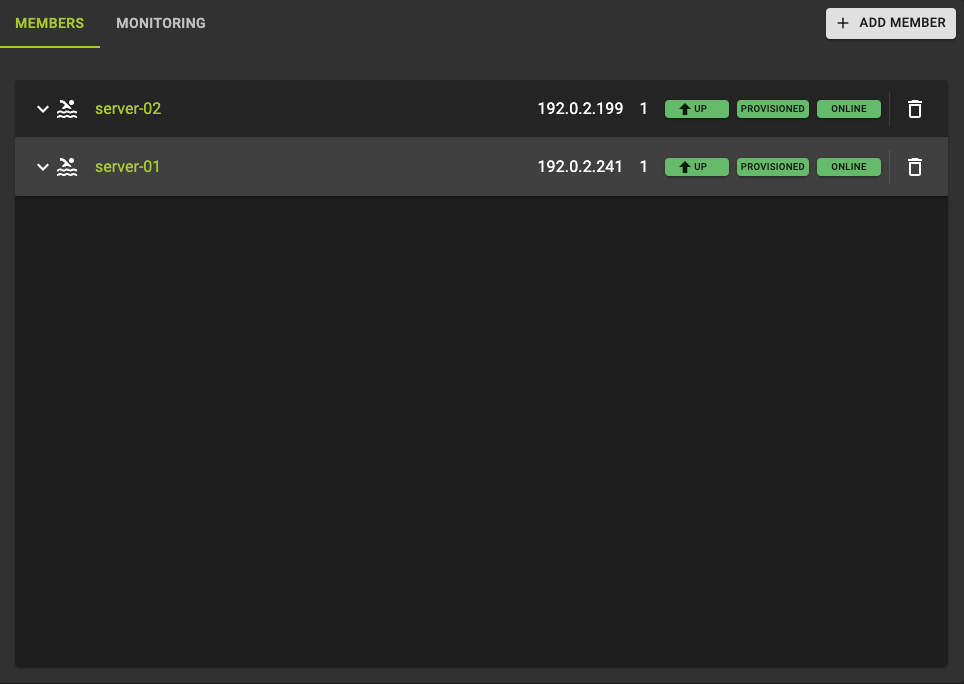

The members row can be extended by clicking it. There you can update:
- The members
name - The
weightthe member should balance compared to other members IP-addressandportthe member should be monitored on
Submit your changes by clicking Update Member
Add Pool
Click the Change Default Pool Button to open the add pool form in the default pool card.
For detailed instructions see how to create a pool
Add Pool Member
Click the Add Member Button to open the add member form in the default pool card.
For detailed instructions see how to create add pool members
You can update the values of the loadbalancer object by adding a --flag with the key name you would like to update. In the example we change the listeners allowed cidr range. You could add more than one flag.
Usage
openstack loadbalancer listener set <LISTENER_ID or LISTENER_NAME> --allowed-cidr <CIDR>
Example
openstack loadbalancer listener set 4e335933-e84a-4c56-a8f1-7d0bb5c1a7a4 --allowed-cidr 100.0.0.0/24
Output
openstack loadbalancer listener show 4e335933-e84a-4c56-a8f1-7d0bb5c1a7a4
+-----------------------------+--------------------------------------+
| Field | Value |
+-----------------------------+--------------------------------------+
| admin_state_up | True |
| connection_limit | -1 |
| created_at | 2024-09-03T13:00:33 |
| default_pool_id | None |
| default_tls_container_ref | None |
| description | |
| id | 4e335933-e84a-4c56-a8f1-7d0bb5c1a7a4 |
| insert_headers | None |
| l7policies | |
| loadbalancers | 9f9102c6-9506-4c77-9fd3-82abbffe654d |
| name | |
| operating_status | ONLINE |
| project_id | 0c12ce74a0084c0b8fef8e15d4a3377d |
| protocol | HTTPS |
| protocol_port | 443 |
| provisioning_status | ACTIVE |
| sni_container_refs | [] |
| timeout_client_data | 50000 |
| timeout_member_connect | 5000 |
| timeout_member_data | 50000 |
| timeout_tcp_inspect | 0 |
| updated_at | 2024-09-03T13:11:32 |
| client_ca_tls_container_ref | None |
| client_authentication | NONE |
| client_crl_container_ref | None |
| allowed_cidrs | 100.0.0.0/24 |
| tls_ciphers | None |
| tls_versions | None |
| alpn_protocols | None |
| tags | |
| hsts_max_age | |
| hsts_include_subdomains | |
| hsts_preload | |
+-----------------------------+--------------------------------------+
# Terraform Provider configuration
terraform {
required_providers {
openstack = {
source = "terraform-provider-openstack/openstack"
}
}
}
# Network configuration
data "openstack_networking_network_v2" "ext_net" {
name = "ext-net"
}
resource "openstack_networking_network_v2" "network" {
name = "net"
admin_state_up = "true"
}
resource "openstack_networking_subnet_v2" "network" {
name = "subnet"
network_id = openstack_networking_network_v2.network.id
cidr = "10.20.30.0/24"
ip_version = 4
enable_dhcp = "true"
dns_nameservers = ["1.1.1.1", "8.8.8.8"]
}
resource "openstack_networking_router_v2" "network" {
name = "router"
admin_state_up = "true"
external_network_id = data.openstack_networking_network_v2.ext_net.id
}
resource "openstack_networking_router_interface_v2" "network" {
router_id = openstack_networking_router_v2.network.id
subnet_id = openstack_networking_subnet_v2.network.id
}
# Create loadbalancer
resource "openstack_lb_loadbalancer_v2" "http" {
name = "lb1"
vip_subnet_id = openstack_networking_subnet_v2.network.id
}
# Create listener
resource "openstack_lb_listener_v2" "http" {
name = "lb-http-listener"
protocol = "TCP"
protocol_port = 80
loadbalancer_id = openstack_lb_loadbalancer_v2.http.id
}
# Create pool
resource "openstack_lb_pool_v2" "http" {
name = "lb-http-pool"
protocol = "TCP"
lb_method = "ROUND_ROBIN"
listener_id = openstack_lb_listener_v2.http.id
}
# Create health monitor
resource "openstack_lb_monitor_v2" "monitor" {
pool_id = openstack_lb_pool_v2.http.id
type = "HTTP"
delay = 20
timeout = 10
max_retries = 3
}
# Get floating IP
resource "openstack_networking_floatingip_v2" "floatingip_1" {
pool = "ext-net"
}
# Associate floating IP to LoadBalancer
resource "openstack_networking_floatingip_associate_v2" "floatip_1" {
floating_ip = openstack_networking_floatingip_v2.floatingip_1.address
port_id = openstack_lb_loadbalancer_v2.http.vip_port_id
}
Delete Listeners
You can delete a listeners in two ways:
from the list view click the icon.
from the details view click the DELETE option at the top of the page.
Configure CLI Usage
openstack loadbalancer listener delete <LISTENER_ID or LISTENER_NAME>
Example
openstack loadbalancer listener list --loadbalancer 9f9102c6-9506-4c77-9fd3-82abbffe654d
+--------------------------------------+--------------------------------------+---------+----------------------------------+----------+---------------+----------------+
| id | default_pool_id | name | project_id | protocol | protocol_port | admin_state_up |
+--------------------------------------+--------------------------------------+---------+----------------------------------+----------+---------------+----------------+
| c7753e00-7599-4f4e-90c6-cc5f82a563b7 | 26fac6b8-4ba2-443d-bdd4-3e9da41f2f44 | list-02 | 0c12ce74a0084c0b8fef8e15d4a3377d | HTTP | 80 | True |
| 4e335933-e84a-4c56-a8f1-7d0bb5c1a7a4 | None | list-01 | 0c12ce74a0084c0b8fef8e15d4a3377d | HTTPS | 443 | True |
+--------------------------------------+--------------------------------------+---------+----------------------------------+----------+---------------+----------------+
openstack loadbalancer listener delete list-01
Output
openstack loadbalancer listener list --loadbalancer 9f9102c6-9506-4c77-9fd3-82abbffe654d
+--------------------------------------+--------------------------------------+---------+----------------------------------+----------+---------------+----------------+
| id | default_pool_id | name | project_id | protocol | protocol_port | admin_state_up |
+--------------------------------------+--------------------------------------+---------+----------------------------------+----------+---------------+----------------+
| c7753e00-7599-4f4e-90c6-cc5f82a563b7 | 26fac6b8-4ba2-443d-bdd4-3e9da41f2f44 | list-02 | 0c12ce74a0084c0b8fef8e15d4a3377d | HTTP | 80 | True |
+--------------------------------------+--------------------------------------+---------+----------------------------------+----------+---------------+----------------+
Example
# Terraform Provider configuration
terraform {
required_providers {
openstack = {
source = "terraform-provider-openstack/openstack"
}
}
}
# Network configuration
data "openstack_networking_network_v2" "ext_net" {
name = "ext-net"
}
resource "openstack_networking_network_v2" "network" {
name = "net"
admin_state_up = "true"
}
resource "openstack_networking_subnet_v2" "network" {
name = "subnet"
network_id = openstack_networking_network_v2.network.id
cidr = "10.20.30.0/24"
ip_version = 4
enable_dhcp = "true"
dns_nameservers = ["1.1.1.1", "8.8.8.8"]
}
resource "openstack_networking_router_v2" "network" {
name = "router"
admin_state_up = "true"
external_network_id = data.openstack_networking_network_v2.ext_net.id
}
resource "openstack_networking_router_interface_v2" "network" {
router_id = openstack_networking_router_v2.network.id
subnet_id = openstack_networking_subnet_v2.network.id
}
# Create loadbalancer
resource "openstack_lb_loadbalancer_v2" "http" {
name = "lb1"
vip_subnet_id = openstack_networking_subnet_v2.network.id
}
# Create listener
resource "openstack_lb_listener_v2" "http" {
name = "lb-http-listener"
protocol = "TCP"
protocol_port = 80
loadbalancer_id = openstack_lb_loadbalancer_v2.http.id
}
# Create pool
resource "openstack_lb_pool_v2" "http" {
name = "lb-http-pool"
protocol = "TCP"
lb_method = "ROUND_ROBIN"
listener_id = openstack_lb_listener_v2.http.id
}
# Create health monitor
resource "openstack_lb_monitor_v2" "monitor" {
pool_id = openstack_lb_pool_v2.http.id
type = "HTTP"
delay = 20
timeout = 10
max_retries = 3
}
# Get floating IP
resource "openstack_networking_floatingip_v2" "floatingip_1" {
pool = "ext-net"
}
# Associate floating IP to LoadBalancer
resource "openstack_networking_floatingip_associate_v2" "floatip_1" {
floating_ip = openstack_networking_floatingip_v2.floatingip_1.address
port_id = openstack_lb_loadbalancer_v2.http.vip_port_id
}
Manage Pools
List Pools
The get a list of all pools click the POOLS in the title bar
Usage
openstack loadbalancer pool create --protocol <PROTOCOL> --lb-algorithm <METHOD> --listener <LISTENER_ID or LISTENER_NAME> or --loadbalancer <LOADBALANCER_ID or LOADBALANCER_NAME>
Example
openstack loadbalancer listener list
+--------------------------------------+--------------------------------------+---------------------+----------------------------------+----------+---------------+----------------+
| id | default_pool_id | name | project_id | protocol | protocol_port | admin_state_up |
+--------------------------------------+--------------------------------------+---------------------+----------------------------------+----------+---------------+----------------+
| c7753e00-7599-4f4e-90c6-cc5f82a563b7 | 26fac6b8-4ba2-443d-bdd4-3e9da41f2f44 | list-02 | 0c12ce74a0084c0b8fef8e15d4a3377d | HTTP | 80 | True |
| f3a3d712-01dd-43af-b3ac-4d35ad819ba3 | 85da1112-2416-47fa-b501-9bae20337092 | http-listener-02.1 | 0c12ce74a0084c0b8fef8e15d4a3377d | HTTP | 80 | True |
| 8aef0f51-63fd-42dc-aad6-9b1172e198cd | 3e2a9f6f-15ff-48f5-9de2-01b0e048747d | https-listener | 0c12ce74a0084c0b8fef8e15d4a3377d | HTTPS | 443 | True |
| eb58c03a-ced5-4bac-9dff-854cf08b72de | None | tcp-listener | 0c12ce74a0084c0b8fef8e15d4a3377d | TCP | 1 | True |
+--------------------------------------+--------------------------------------+---------------------+----------------------------------+----------+---------------+----------------+
openstack loadbalancer pool create --protocol tcp --lb-algorithm round_robin --listener eb58c03a-ced5-4bac-9dff-854cf08b72de
Output
+----------------------+--------------------------------------+
| Field | Value |
+----------------------+--------------------------------------+
| admin_state_up | True |
| created_at | 2024-09-03T14:05:03 |
| description | |
| healthmonitor_id | |
| id | 14bd6fc6-bf5b-4717-a2af-1cbe2e4fed7f |
| lb_algorithm | ROUND_ROBIN |
| listeners | eb58c03a-ced5-4bac-9dff-854cf08b72de |
| loadbalancers | 9a444163-db45-426c-ab04-cc006e6374ff |
| members | |
| name | |
| operating_status | OFFLINE |
| project_id | 0c12ce74a0084c0b8fef8e15d4a3377d |
| protocol | TCP |
| provisioning_status | PENDING_CREATE |
| session_persistence | None |
| updated_at | None |
| tls_container_ref | None |
| ca_tls_container_ref | None |
| crl_container_ref | None |
| tls_enabled | False |
| tls_ciphers | None |
| tls_versions | None |
| tags | |
| alpn_protocols | None |
+----------------------+--------------------------------------+
openstack loadbalancer listener list
+--------------------------------------+--------------------------------------+---------------------+----------------------------------+----------+---------------+----------------+
| id | default_pool_id | name | project_id | protocol | protocol_port | admin_state_up |
+--------------------------------------+--------------------------------------+---------------------+----------------------------------+----------+---------------+----------------+
| c7753e00-7599-4f4e-90c6-cc5f82a563b7 | 26fac6b8-4ba2-443d-bdd4-3e9da41f2f44 | list-02 | 0c12ce74a0084c0b8fef8e15d4a3377d | HTTP | 80 | True |
| f3a3d712-01dd-43af-b3ac-4d35ad819ba3 | 85da1112-2416-47fa-b501-9bae20337092 | http-listener-02.1 | 0c12ce74a0084c0b8fef8e15d4a3377d | HTTP | 80 | True |
| 8aef0f51-63fd-42dc-aad6-9b1172e198cd | 3e2a9f6f-15ff-48f5-9de2-01b0e048747d | https-listener | 0c12ce74a0084c0b8fef8e15d4a3377d | HTTPS | 443 | True |
| eb58c03a-ced5-4bac-9dff-854cf08b72de | 14bd6fc6-bf5b-4717-a2af-1cbe2e4fed7f | tcp-listener | 0c12ce74a0084c0b8fef8e15d4a3377d | TCP | 1 | True |
+--------------------------------------+--------------------------------------+---------------------+----------------------------------+----------+---------------+----------------+
Example
Create Pool
A pool is a group of servers (pool members) that will handle the traffic forwarded by the listener.

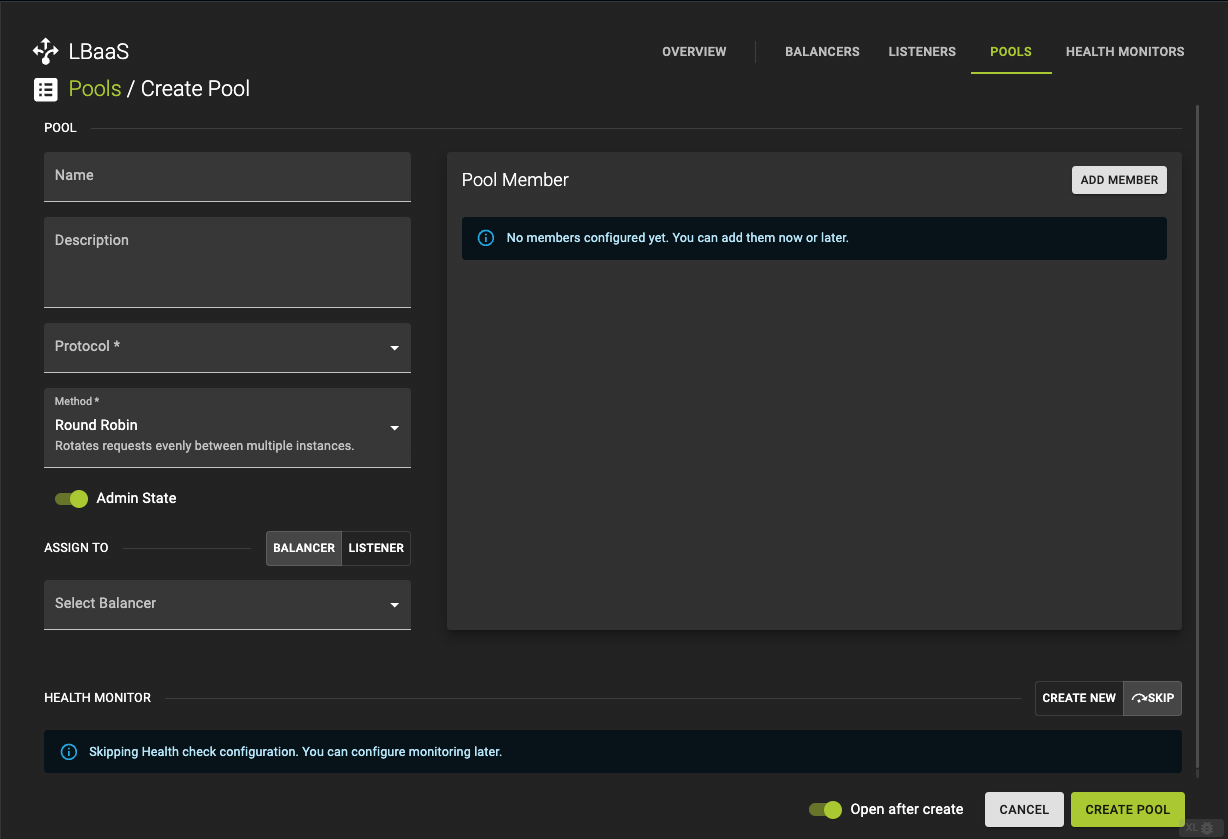

To create a Listener navigate to the Pools Tab and click the Create button in the titlebar.
Configures the pool which contains the server Instances which the data requests are distributed to. You can create an new Pool or use Use Existing pool
-
Name and describe your Listener (optional).
-
Protocol (required):
- Choose a
Protocol. Options areTCP,HTTPandHTTPs
- Choose a
-
Method (required)
-
Choose a
Methodafter which the Requests are distributed between pool members. Options are: -
Source IP -
Round Robin -
Least Connections
-
Skip the next steps by clicking Skip in order to only create a Pool.
Click Create Pool to trigger the creation of a Pool
Configure CLI Usage
openstack loadbalancer pool create --name <POOL_NAME> --lb-algorithm <METHOD> --listener <LISTENER_NAME or LISTENER_ID> --protocol <PROTOCOL>
--name: The name of the pool.--lb-algorithm: The load balancing method used (e.g., ROUND_ROBIN, LEAST_CONNECTIONS, SOURCE_IP).--listener: The name or ID of the listener associated with this pool.--protocol: The protocol used by the pool members (e.g., HTTP, HTTPS, TCP).
Example
openstack loadbalancer pool create --name example-pool --lb-algorithm ROUND_ROBIN --listener example-listener --protocol HTTP
Output
openstack loadbalancer pool show example-pool
+----------------------+--------------------------------------+
| Field | Value |
+----------------------+--------------------------------------+
| admin_state_up | True |
| created_at | 2024-08-21T08:12:58 |
| description | |
| healthmonitor_id | |
| id | ff8c8186-2b06-49a4-b737-c8b1d8b9a149 |
| lb_algorithm | ROUND_ROBIN |
| listeners | 9257cf12-3a6c-4e2a-a486-ea45a43888c0 |
| loadbalancers | 3ae8541d-76e7-4b15-aaaa-ef749db5f761 |
| members | |
| name | example-pool |
| operating_status | ONLINE |
| project_id | 0c12ce74a0084c0b8fef8e15d4a3377d |
| protocol | HTTP |
| provisioning_status | ACTIVE |
| session_persistence | None |
| updated_at | 2024-08-21T08:13:01 |
| tls_container_ref | None |
| ca_tls_container_ref | None |
| crl_container_ref | None |
| tls_enabled | False |
| tls_ciphers | None |
| tls_versions | None |
| tags | |
| alpn_protocols | None |
+----------------------+--------------------------------------+
Example
# Terraform Provider configuration
terraform {
required_providers {
openstack = {
source = "terraform-provider-openstack/openstack"
}
}
}
# Network configuration
data "openstack_networking_network_v2" "ext_net" {
name = "ext-net"
}
resource "openstack_networking_network_v2" "network" {
name = "net"
admin_state_up = "true"
}
resource "openstack_networking_subnet_v2" "network" {
name = "subnet"
network_id = openstack_networking_network_v2.network.id
cidr = "10.20.30.0/24"
ip_version = 4
enable_dhcp = "true"
dns_nameservers = ["1.1.1.1", "8.8.8.8"]
}
resource "openstack_networking_router_v2" "network" {
name = "router"
admin_state_up = "true"
external_network_id = data.openstack_networking_network_v2.ext_net.id
}
resource "openstack_networking_router_interface_v2" "network" {
router_id = openstack_networking_router_v2.network.id
subnet_id = openstack_networking_subnet_v2.network.id
}
# Create loadbalancer
resource "openstack_lb_loadbalancer_v2" "http" {
name = "lb1"
vip_subnet_id = openstack_networking_subnet_v2.network.id
}
# Create listener
resource "openstack_lb_listener_v2" "http" {
name = "lb-http-listener"
protocol = "TCP"
protocol_port = 80
loadbalancer_id = openstack_lb_loadbalancer_v2.http.id
}
# Create pool
resource "openstack_lb_pool_v2" "http" {
name = "lb-http-pool"
protocol = "TCP"
lb_method = "ROUND_ROBIN"
listener_id = openstack_lb_listener_v2.http.id
}
Update Pools

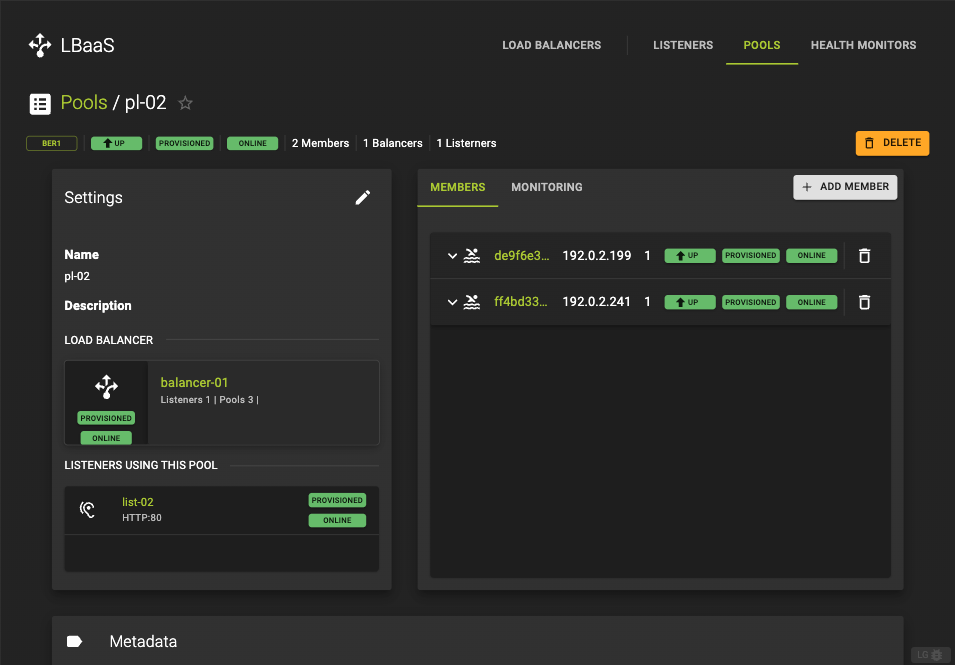

In the pool detail view, you can find basic information in the settings card, along with details about Pool Members and Monitoring in the respective members and monitoring tabs.
Settings Card
To enter the edit mode, click the button.

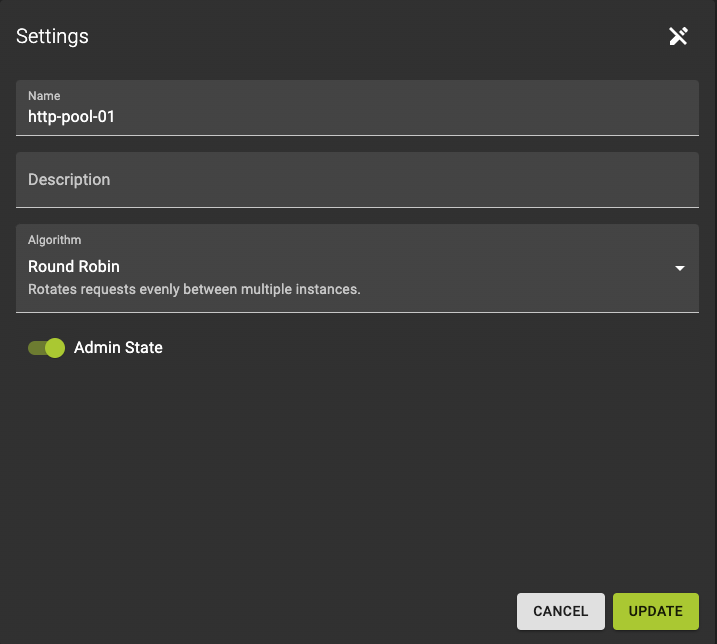

Now you can change the Name, Description, and Method of your pool, as well as toggle the admin state.
Confirm your changes by clicking Update

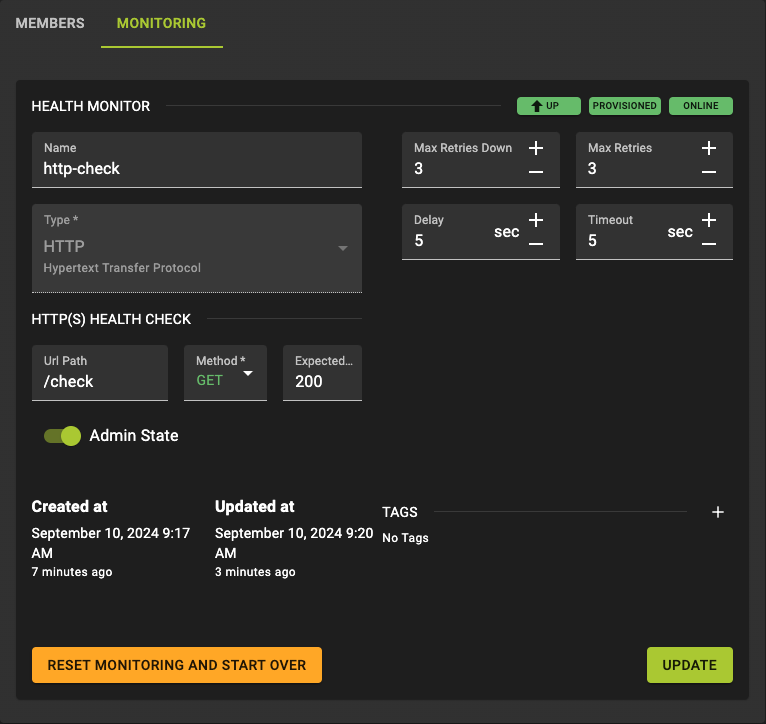

Members and Monitoring Card
The members and monitoring Card displays the members of a pool and the monitoring options to check the health of the members
Click on a member to expand the section, which will display more information and allow you to update the member's details.
- Change the members
name - Change the
weight - Change the
IP-AddressandPortthe health monitor should check on.
Click Update Member to submit your changes
You can add members by clicking Add Members
For detailed instructions see how to add pool members

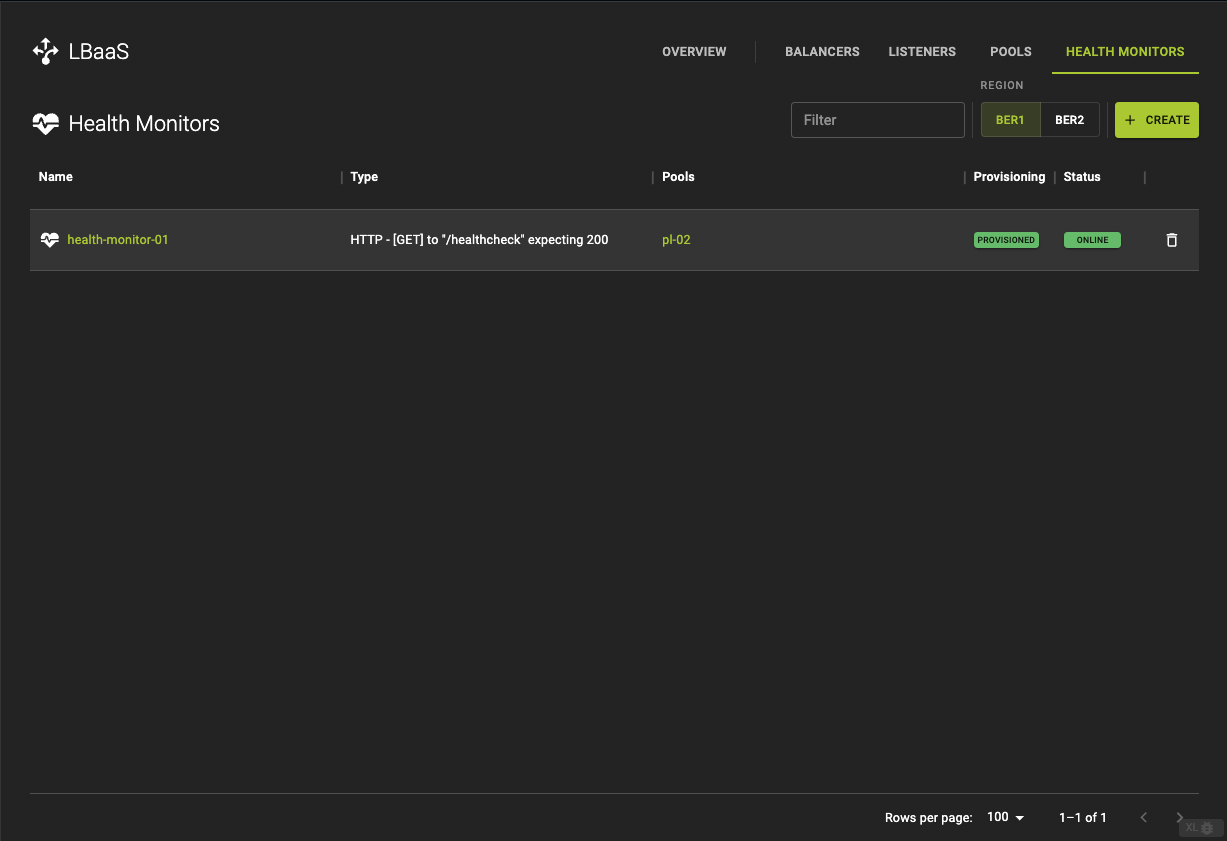

You can create Health Monitoring for the pool by clicking on MONITORING
For detailed instructions see how to add health monitoring
You can update the values of the loadbalancer object by adding a --flag with the key name you would like to update. You could add more than one flag.
In the example we change the pools loadbalancer algorithm from round obin to least connections.
Configure CLI Usage
openstack loadbalancer pool set <POOL_ID or POOL_NAME> --lb-algorithm <METHOD>
Example
openstack loadbalancer pool show 14bd6fc6-bf5b-4717-a2af-1cbe2e4fed7f
+----------------------+--------------------------------------+
| Field | Value |
+----------------------+--------------------------------------+
| admin_state_up | True |
| created_at | 2024-09-03T14:05:03 |
| description | |
| healthmonitor_id | |
| id | 14bd6fc6-bf5b-4717-a2af-1cbe2e4fed7f |
| lb_algorithm | ROUND_ROBIN |
| listeners | eb58c03a-ced5-4bac-9dff-854cf08b72de |
| loadbalancers | 9a444163-db45-426c-ab04-cc006e6374ff |
| members | |
| name | |
| operating_status | ONLINE |
| project_id | 0c12ce74a0084c0b8fef8e15d4a3377d |
| protocol | TCP |
| provisioning_status | ACTIVE |
| session_persistence | None |
| updated_at | 2024-09-03T14:05:11 |
| tls_container_ref | None |
| ca_tls_container_ref | None |
| crl_container_ref | None |
| tls_enabled | False |
| tls_ciphers | None |
| tls_versions | None |
| tags | |
| alpn_protocols | None |
+----------------------+--------------------------------------+
openstack loadbalancer pool set 14bd6fc6-bf5b-4717-a2af-1cbe2e4fed7f --lb-algorithm LEAST_CONNECTIONS
Output
openstack loadbalancer pool show 14bd6fc6-bf5b-4717-a2af-1cbe2e4fed7f
+----------------------+--------------------------------------+
| Field | Value |
+----------------------+--------------------------------------+
| admin_state_up | True |
| created_at | 2024-09-03T14:05:03 |
| description | |
| healthmonitor_id | |
| id | 14bd6fc6-bf5b-4717-a2af-1cbe2e4fed7f |
| lb_algorithm | LEAST_CONNECTIONS |
| listeners | eb58c03a-ced5-4bac-9dff-854cf08b72de |
| loadbalancers | 9a444163-db45-426c-ab04-cc006e6374ff |
| members | |
| name | |
| operating_status | ONLINE |
| project_id | 0c12ce74a0084c0b8fef8e15d4a3377d |
| protocol | TCP |
| provisioning_status | ACTIVE |
| session_persistence | None |
| updated_at | 2024-09-03T14:16:55 |
| tls_container_ref | None |
| ca_tls_container_ref | None |
| crl_container_ref | None |
| tls_enabled | False |
| tls_ciphers | None |
| tls_versions | None |
| tags | |
| alpn_protocols | None |
+----------------------+--------------------------------------+
Example
Delete Pools

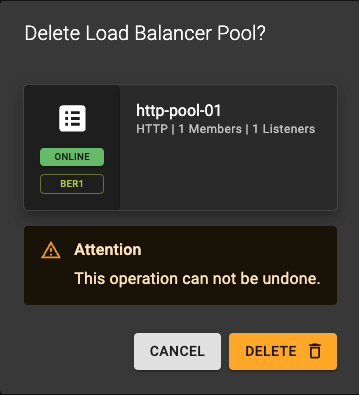

You can delete a pools in two ways:
- from the list view click the icon.
- from the details view click the DELETE option at the top of the page.
Usage
openstack loadbalancer pool delete <POOL_ID or POOL_NAME>
Example
openstack loadbalancer pool list
+--------------------------------------+-------------+----------------------------------+---------------------+----------+-------------------+----------------+
| id | name | project_id | provisioning_status | protocol | lb_algorithm | admin_state_up |
+--------------------------------------+-------------+----------------------------------+---------------------+----------+-------------------+----------------+
| 26fac6b8-4ba2-443d-bdd4-3e9da41f2f44 | pl-02 | 0c12ce74a0084c0b8fef8e15d4a3377d | ACTIVE | HTTP | ROUND_ROBIN | True |
| 6cd8373e-f2a5-4660-bc1f-92ef6aff0640 | tcp-pool | 0c12ce74a0084c0b8fef8e15d4a3377d | ACTIVE | TCP | ROUND_ROBIN | True |
| 85da1112-2416-47fa-b501-9bae20337092 | pool-02 | 0c12ce74a0084c0b8fef8e15d4a3377d | ACTIVE | HTTP | ROUND_ROBIN | True |
| 3e2a9f6f-15ff-48f5-9de2-01b0e048747d | https-pool | 0c12ce74a0084c0b8fef8e15d4a3377d | ACTIVE | HTTPS | ROUND_ROBIN | True |
| 14bd6fc6-bf5b-4717-a2af-1cbe2e4fed7f | tcp-pool-lc | 0c12ce74a0084c0b8fef8e15d4a3377d | ACTIVE | TCP | LEAST_CONNECTIONS | True |
+--------------------------------------+-------------+----------------------------------+---------------------+----------+-------------------+----------------+
openstack loadbalancer pool delete pl-02
Output
openstack loadbalancer pool list
+--------------------------------------+-------------+----------------------------------+---------------------+----------+-------------------+----------------+
| id | name | project_id | provisioning_status | protocol | lb_algorithm | admin_state_up |
+--------------------------------------+-------------+----------------------------------+---------------------+----------+-------------------+----------------+
| 6cd8373e-f2a5-4660-bc1f-92ef6aff0640 | tcp-pool | 0c12ce74a0084c0b8fef8e15d4a3377d | ACTIVE | TCP | ROUND_ROBIN | True |
| 85da1112-2416-47fa-b501-9bae20337092 | pool-02 | 0c12ce74a0084c0b8fef8e15d4a3377d | ACTIVE | HTTP | ROUND_ROBIN | True |
| 3e2a9f6f-15ff-48f5-9de2-01b0e048747d | https-pool | 0c12ce74a0084c0b8fef8e15d4a3377d | ACTIVE | HTTPS | ROUND_ROBIN | True |
| 14bd6fc6-bf5b-4717-a2af-1cbe2e4fed7f | tcp-pool-lc | 0c12ce74a0084c0b8fef8e15d4a3377d | ACTIVE | TCP | LEAST_CONNECTIONS | True |
+--------------------------------------+-------------+----------------------------------+---------------------+----------+-------------------+----------------+
Example
Manage Pool Members
List Pool Members
You can get a list of pool members of one pool by going to the detail view of one pool. In the Pool Card you will find a list of pool members.
Create Pool Members
Pool members are the individual backend servers that will handle the requests. Each member must be in the same subnet as the load balancer.
To add a member to the pool click the Add Member button in the card title of the Pools tab.
You can choose to add an external members instead of an internal member by clicking the External member button in the card title. This will navigate you to a dialog where you can enter the IP-Address of your external member
Settings:
-
Name and describe your Listener (optional).
-
Select Server (required):
Select Server: Choose a server from the selector. If you do not have servers configured yet, you can do so here
-
Select Server IP (required)
- Choose an IP from
Server IPs
- Choose an IP from
-
Select a
port(required) -
Choose
weight: A valid value is from 0 to 256. Default is 1.- The weight of a member determines the portion of requests or connections it services compared to the other members of the pool. A value of 0 means the member does not receive new connections but continues to seervice existing connections.
Monitoring:
IP-Address(Optional): An alternate IP address used for health monitoring a backend member. Default isnullwhich monitors the member address.Port(Optional): An alternate protocol port used for health monitoring a backend member. Default isnullwhich monitors the member protocol_port
Click Add Member button to confirm your configuration.
Usage
openstack loadbalancer member create --subnet-id <SUBNET_ID> --address <SERVER_IP> --protocol-port <PORT> --name <MEMBER_NAME> <POOL_NAME or POOL_ID>
--subnet-id: The subnet ID where the pool member resides.--address: The IP address of the pool member.--protocol-port: The port on which the pool member will accept traffic.--name: The name of the pool member.
Example
openstack loadbalancer member create --subnet-id a7d7e676-d668-4ec7-8b7d-3c28f68caab3 --address 192.0.2.199 --protocol-port 80 --name server-01 example-pool
Output
openstack loadbalancer member show server-01
+---------------------+--------------------------------------+
| Field | Value |
+---------------------+--------------------------------------+
| address | 192.0.2.199 |
| admin_state_up | True |
| created_at | 2024-08-21T08:31:55 |
| id | 1b16e91d-3c1f-45f8-ba62-40693fbce13e |
| name | server-01 |
| operating_status | NO_MONITOR |
| project_id | 0c12ce74a0084c0b8fef8e15d4a3377d |
| protocol_port | 80 |
| provisioning_status | ACTIVE |
| subnet_id | a7d7e676-d668-4ec7-8b7d-3c28f68caab3 |
| updated_at | 2024-08-21T08:31:58 |
| weight | 1 |
| monitor_port | None |
| monitor_address | None |
| backup | False |
| tags | |
+---------------------+--------------------------------------+
Example
# Terraform Provider configuration
terraform {
required_providers {
openstack = {
source = "terraform-provider-openstack/openstack"
}
}
}
# Network configuration
data "openstack_networking_network_v2" "ext_net" {
name = "ext-net"
}
resource "openstack_networking_network_v2" "network" {
name = "net"
admin_state_up = "true"
}
# Select latest OpenStack Ubuntu 24.04 Image
data "openstack_images_image_v2" "image" {
most_recent = true
visibility = "public"
properties = {
os_distro = "ubuntu"
os_version = "24.04"
}
}
# Upload SSH key (please change this to your local public key file)
resource "openstack_compute_keypair_v2" "ssh_key" {
name = "ssh-public-key"
public_key = file("~/.ssh/id_rsa.pub")
}
resource "openstack_networking_subnet_v2" "network" {
name = "subnet"
network_id = openstack_networking_network_v2.network.id
cidr = "10.20.30.0/24"
ip_version = 4
enable_dhcp = "true"
dns_nameservers = ["1.1.1.1", "8.8.8.8"]
}
resource "openstack_networking_port_v2" "os_server_port" {
name = "os_server_port"
admin_state_up = "true"
network_id = openstack_networking_network_v2.network.id
fixed_ip {
subnet_id = openstack_networking_subnet_v2.network.id
}
}
resource "openstack_networking_router_v2" "network" {
name = "router"
admin_state_up = "true"
external_network_id = data.openstack_networking_network_v2.ext_net.id
}
resource "openstack_networking_router_interface_v2" "network" {
router_id = openstack_networking_router_v2.network.id
subnet_id = openstack_networking_subnet_v2.network.id
}
# Create an OpenStack VM
resource "openstack_compute_instance_v2" "os_server" {
name = "webserver"
image_name = data.openstack_images_image_v2.image.name
flavor_name = "m1.small"
key_pair = openstack_compute_keypair_v2.ssh_key.name
network {
uuid = openstack_networking_network_v2.network.id
port = openstack_networking_port_v2.os_server_port.id
}
lifecycle {
create_before_destroy = true
ignore_changes = [flavor_name, image_name]
}
}
# Create loadbalancer
resource "openstack_lb_loadbalancer_v2" "http" {
name = "lb1"
vip_subnet_id = openstack_networking_subnet_v2.network.id
}
# Create listener
resource "openstack_lb_listener_v2" "http" {
name = "lb-http-listener"
protocol = "TCP"
protocol_port = 80
loadbalancer_id = openstack_lb_loadbalancer_v2.http.id
}
# Create pool
resource "openstack_lb_pool_v2" "http" {
name = "lb-http-pool"
protocol = "TCP"
lb_method = "ROUND_ROBIN"
listener_id = openstack_lb_listener_v2.http.id
}
resource "openstack_lb_member_v2" "http" {
name = "webserver"
pool_id = openstack_lb_pool_v2.http.id
address = openstack_compute_instance_v2.os_server.access_ip_v4
protocol_port = 80
}
# Get floating IP
resource "openstack_networking_floatingip_v2" "floatingip_1" {
pool = "ext-net"
}
# Associate floating IP to LoadBalancer
resource "openstack_networking_floatingip_associate_v2" "floatip_1" {
floating_ip = openstack_networking_floatingip_v2.floatingip_1.address
port_id = openstack_lb_loadbalancer_v2.http.vip_port_id
}
Update Pool Members
By clicking the pool members accordions you find further information about the members status. You can also edit the name and weight of the member or add IP-Address nad port for monitoring.
You can update the values of the members object by adding a --flag with the key name you would like to update. You could add more than one flag.
In the example we change the m,embers name from server-01 to member-01.
Usage
openstack loadbalancer member set
--name <name>
--disable-backup | --enable-backup
--weight <weight>
--monitor-port <monitor_port>
--monitor-address <monitor_address>
--enable | --disable
--tag <tag> --no-tag
<MEMBER_ID or MEMBER_NAME> <POOL_ID or POOL_NAME>
Example
openstack loadbalancer member list 1b16e91d-3c1f-45f8-ba62-40693fbce13e
+--------------------------------------+-----------+----------------------------------+---------------------+-------------+---------------+------------------+--------+
| id | name | project_id | provisioning_status | address | protocol_port | operating_status | weight |
+--------------------------------------+-----------+----------------------------------+---------------------+-------------+---------------+------------------+--------+
| 1b16e91d-3c1f-45f8-ba62-40693fbce13e | server-01 | 0c12ce74a0084c0b8fef8e15d4a3377d | ACTIVE | 192.0.2.114 | 80 | NO_MONITOR | 1 |
+--------------------------------------+-----------+----------------------------------+---------------------+-------------+---------------+------------------+--------+
openstack loadbalancer member set --name member-01 example-pool ea06a63e-3824-4293-9d12-0ae89b350802
Output
openstack loadbalancer member show example-pool member-01
+---------------------+--------------------------------------+
| Field | Value |
+---------------------+--------------------------------------+
| address | 192.0.2.114 |
| admin_state_up | True |
| created_at | 2024-09-09T16:16:14 |
| id | 1b16e91d-3c1f-45f8-ba62-40693fbce13e |
| name | member-01 |
| operating_status | NO_MONITOR |
| project_id | 0c12ce74a0084c0b8fef8e15d4a3377d |
| protocol_port | 80 |
| provisioning_status | ACTIVE |
| subnet_id | None |
| updated_at | 2024-09-09T16:18:33 |
| weight | 1 |
| monitor_port | None |
| monitor_address | None |
| backup | False |
| tags | |
+---------------------+--------------------------------------+
Example
Delete Pool Members

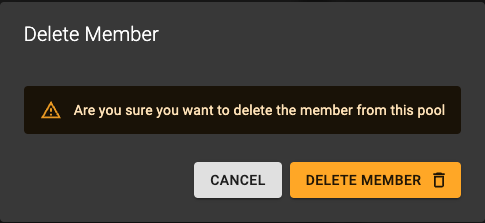

You can delete pool members by clicking the icon in the list.
In the confirmation dialog, click the DELETE button to confirm the deletion of the pool members. Please note that this action will not delete the server.
Usage
openstack loadbalancer member delete <POOL_ID or POOL_NAME> <MEMBER_ID or MEMBER_NAME>
Example
openstack loadbalancer member list example-pool
+--------------------------------------+-----------+----------------------------------+---------------------+-------------+---------------+------------------+--------+
| id | name | project_id | provisioning_status | address | protocol_port | operating_status | weight |
+--------------------------------------+-----------+----------------------------------+---------------------+-------------+---------------+------------------+--------+
| 6c8595aa-f089-465f-93b6-ffd6d38d5199 | | 0c12ce74a0084c0b8fef8e15d4a3377d | ACTIVE | 192.0.2.241 | 80 | NO_MONITOR | 1 |
| 1b16e91d-3c1f-45f8-ba62-40693fbce13e | server-01 | 0c12ce74a0084c0b8fef8e15d4a3377d | ACTIVE | 192.0.2.114 | 80 | NO_MONITOR | 1 |
+--------------------------------------+-----------+----------------------------------+---------------------+-------------+---------------+------------------+--------+
openstack loadbalancer member delete example-pool 6c8595aa-f089-465f-93b6-ffd6d38d5199
Output
openstack loadbalancer member list example-pool
+--------------------------------------+-----------+----------------------------------+---------------------+-------------+---------------+------------------+--------+
| id | name | project_id | provisioning_status | address | protocol_port | operating_status | weight |
+--------------------------------------+-----------+----------------------------------+---------------------+-------------+---------------+------------------+--------+
| 1b16e91d-3c1f-45f8-ba62-40693fbce13e | server-01 | 0c12ce74a0084c0b8fef8e15d4a3377d | ACTIVE | 192.0.2.114 | 80 | NO_MONITOR | 1 |
+--------------------------------------+-----------+----------------------------------+---------------------+-------------+---------------+------------------+--------+
Example
Manage Health Monitoring
List Health Monitoring

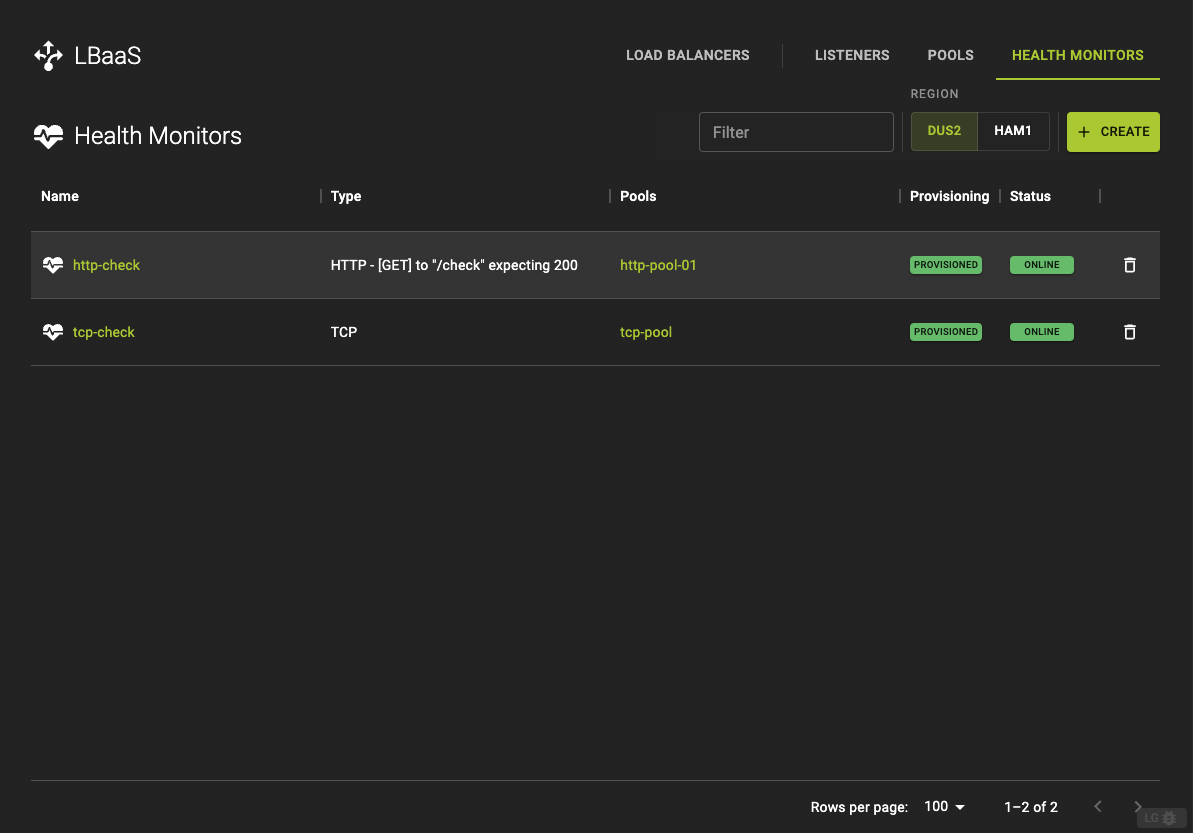

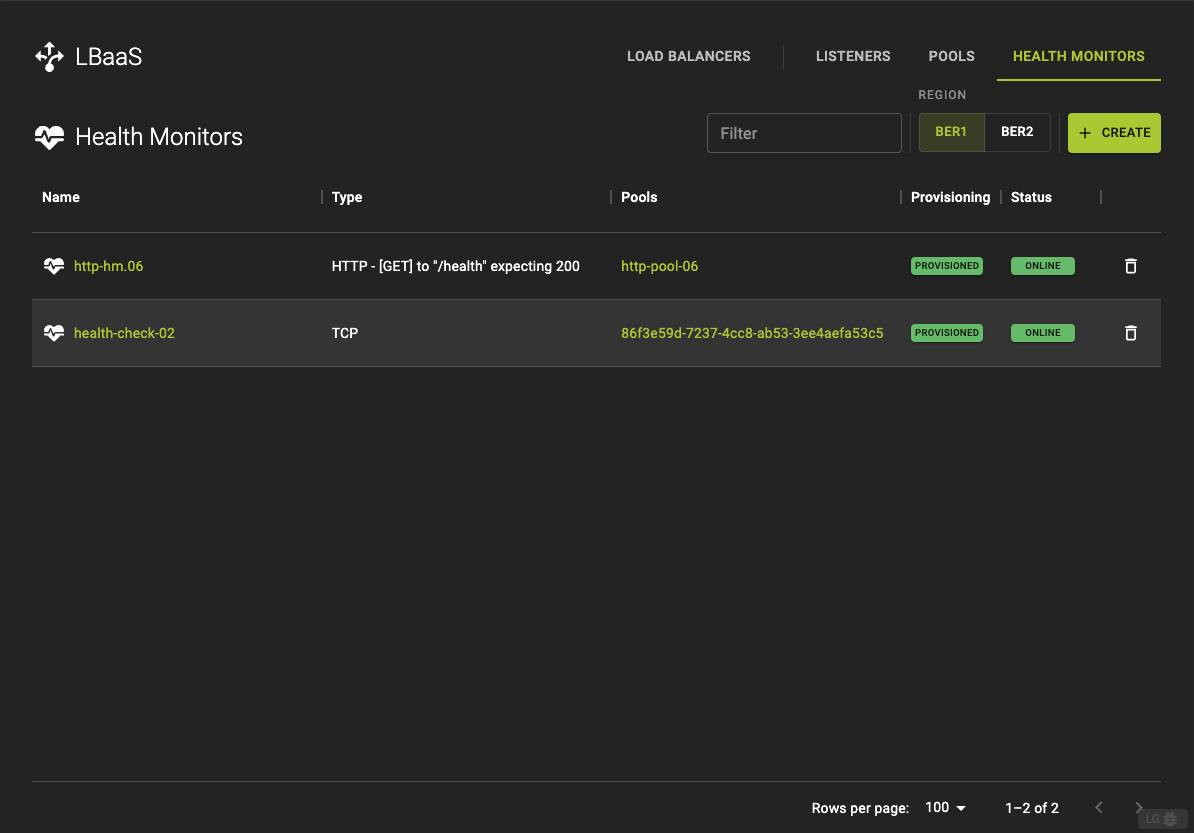

The get a list of all health monitors click the HEALTH MONITORS in the title bar
Usage
openstack loadbalancer healthmonitor list
Example
openstack loadbalancer healthmonitor list
Output
+--------------------------------------+-----------------+----------------------------------+------+----------------+
| id | name | project_id | type | admin_state_up |
+--------------------------------------+-----------------+----------------------------------+------+----------------+
| d7f87967-ab10-40d7-8e0a-ee3cb21faea2 | http-hm.06 | 0c12ce74a0084c0b8fef8e15d4a3377d | HTTP | True |
| 2eb908d4-7b92-4771-8b40-43956e232479 | health-check-02 | 0c12ce74a0084c0b8fef8e15d4a3377d | TCP | True |
+--------------------------------------+-----------------+----------------------------------+------+----------------+
Example
Create Health Monitoring
A Health Monitor checks the health of pool members and ensures that traffic is only routed to healthy servers.
To create Health Monitoring navigate to the Health Monitors Tab and click the Create button in the titlebar.
-
Name your Health Monitor (optional).
-
Type(required): Options are:HTTP,HTTPS,PING,TCPandTLS-HELLO.- When choosing
HTTPorHTTPS, you also have the choice of anULR-Path, aMethodand anExpected Statusto get back from the Health Check.
- When choosing
Click Create Monitoring to trigger the creation of Load Balancer
Usage
openstack loadbalancer healthmonitor create --name <HEALTHMONITOR_NAME> --delay <DELAY> --timeout <TIMEOUT> --max-retries <MAX_RETRIES> --type <TYPE> --url-path <URL_PATH> <POOL_NAME>
--name: The name of the health monitor.--delay: The time in seconds between health checks.--timeout: The maximum time in seconds that a health check is allowed to take.--max-retries: The number of failed health checks before a member is marked as unhealthy.--max-retries-down: The number of allowed check failures before changing the operating status of the member to ERROR. A valid value is from 1 to 10. The default is 3.--type: The type of health check (e.g., HTTP, HTTPS, TCP).--pool: The name or ID of the pool to which this health monitor is associated.--url-path: The path that the health monitor will request (only for HTTP/HTTPS monitors).
Example
openstack loadbalancer healthmonitor create --name example-healthmonitor --delay 5 --timeout 3 --max-retries 3 --type HTTP --url-path /healthcheck example-pool
Output
openstack loadbalancer healthmonitor show example-healthmonitor
+---------------------+--------------------------------------+
| Field | Value |
+---------------------+--------------------------------------+
| project_id | 0c12ce74a0084c0b8fef8e15d4a3377d |
| name | example-healthmonitor |
| admin_state_up | True |
| pools | ff8c8186-2b06-49a4-b737-c8b1d8b9a149 |
| created_at | 2024-08-21T08:40:11 |
| provisioning_status | ACTIVE |
| updated_at | 2024-08-21T08:40:12 |
| delay | 5 |
| expected_codes | 200 |
| max_retries | 3 |
| http_method | GET |
| timeout | 3 |
| max_retries_down | 3 |
| url_path | /healthcheck |
| type | HTTP |
| id | 9655c388-41b3-4c24-8902-822e3d007f3b |
| operating_status | ONLINE |
| http_version | None |
| domain_name | None |
| tags | |
+---------------------+--------------------------------------+
Example
# Terraform Provider configuration
terraform {
required_providers {
openstack = {
source = "terraform-provider-openstack/openstack"
}
}
}
# Network configuration
data "openstack_networking_network_v2" "ext_net" {
name = "ext-net"
}
resource "openstack_networking_network_v2" "network" {
name = "net"
admin_state_up = "true"
}
resource "openstack_networking_subnet_v2" "network" {
name = "subnet"
network_id = openstack_networking_network_v2.network.id
cidr = "10.20.30.0/24"
ip_version = 4
enable_dhcp = "true"
dns_nameservers = ["1.1.1.1", "8.8.8.8"]
}
resource "openstack_networking_router_v2" "network" {
name = "router"
admin_state_up = "true"
external_network_id = data.openstack_networking_network_v2.ext_net.id
}
resource "openstack_networking_router_interface_v2" "network" {
router_id = openstack_networking_router_v2.network.id
subnet_id = openstack_networking_subnet_v2.network.id
}
# Create loadbalancer
resource "openstack_lb_loadbalancer_v2" "http" {
name = "lb1"
vip_subnet_id = openstack_networking_subnet_v2.network.id
}
# Create listener
resource "openstack_lb_listener_v2" "http" {
name = "lb-http-listener"
protocol = "TCP"
protocol_port = 80
loadbalancer_id = openstack_lb_loadbalancer_v2.http.id
}
# Create pool
resource "openstack_lb_pool_v2" "http" {
name = "lb-http-pool"
protocol = "TCP"
lb_method = "ROUND_ROBIN"
listener_id = openstack_lb_listener_v2.http.id
}
# Create health monitor
resource "openstack_lb_monitor_v2" "monitor" {
pool_id = openstack_lb_pool_v2.http.id
type = "HTTP"
delay = 20
timeout = 10
max_retries = 3
}
# Get floating IP
resource "openstack_networking_floatingip_v2" "floatingip_1" {
pool = "ext-net"
}
# Associate floating IP to LoadBalancer
resource "openstack_networking_floatingip_associate_v2" "floatip_1" {
floating_ip = openstack_networking_floatingip_v2.floatingip_1.address
port_id = openstack_lb_loadbalancer_v2.http.vip_port_id
}
Update Health Monitoring
There are two ways to update the members: 1. Go to Health Monitor List by clicking the HEALTH MONITORS tab in the title bar Choose the Health Monitor you want to update and click the Name to enter detail view. Here you have the option to update:
You can also update the policy, which is bound to a pool, from the pool detail view. If you click on the Monitoring tab in the card bar you will end up in the same view where you can update:
--name: The name of the health monitor.--delay: The time in seconds between health checks.--timeout: The maximum time in seconds that a health check is allowed to take.--max-retries: The number of failed health checks before a member is marked as unhealthy.--max-retries-down: The number of allowed check failures before changing the operating status of the member to ERROR. A valid value is from 1 to 10. The default is 3.
Click UPDATE to confirm your changes.
You can update the values of the health monitor object by adding a --flag with the key name you would like to update. You could add more than one flag.
In the example we are changing the url-path the monitor uses to check the pool members health and add a tag
Usage
openstack loadbalancer healthmonitor set <HEALTHMONITOR_NAME or HEALTHMONITOR_ID>
--name <name>
--delay <delay>
--domain-name <domain_name> HTTP Version must be specified
--expected-codes <codes>
--http-method {GET,POST,DELETE,PUT,HEAD,OPTIONS,PATCH,CONNECT,TRACE}
--http-version <http_version>
--timeout <timeout>
--max-retries <max_retries>
--max-retries-down <max_retries_down>
--url-path <url_path> When type HTTP or HTTPS. Has to start with "/"
--enable | --disable
--tag <tag> | --no-tag
Example
openstack loadbalancer healthmonitor show http-hm.06
+---------------------+--------------------------------------+
| Field | Value |
+---------------------+--------------------------------------+
| project_id | 0c12ce74a0084c0b8fef8e15d4a3377d |
| name | http-hm.06 |
| admin_state_up | True |
| pools | c61cc981-0b8f-4d84-a81a-80a4208803fe |
| created_at | 2024-09-10T07:44:08 |
| provisioning_status | ACTIVE |
| updated_at | 2024-09-10T07:45:33 |
| delay | 5 |
| expected_codes | 200 |
| max_retries | 3 |
| http_method | GET |
| timeout | 5 |
| max_retries_down | 3 |
| url_path | /health |
| type | HTTP |
| id | d7f87967-ab10-40d7-8e0a-ee3cb21faea2 |
| operating_status | ONLINE |
| http_version | None |
| domain_name | None |
| tags | |
+---------------------+--------------------------------------+
openstack loadbalancer healthmonitor set http-hm.06 --url-path /health-checks --tag http-pool-06
Output
openstack loadbalancer healthmonitor show http-hm.06
+---------------------+--------------------------------------+
| Field | Value |
+---------------------+--------------------------------------+
| project_id | 0c12ce74a0084c0b8fef8e15d4a3377d |
| name | http-hm.06 |
| admin_state_up | True |
| pools | c61cc981-0b8f-4d84-a81a-80a4208803fe |
| created_at | 2024-09-10T07:44:08 |
| provisioning_status | ACTIVE |
| updated_at | 2024-09-10T14:00:15 |
| delay | 5 |
| expected_codes | 200 |
| max_retries | 3 |
| http_method | GET |
| timeout | 5 |
| max_retries_down | 3 |
| url_path | /health-checks |
| type | HTTP |
| id | d7f87967-ab10-40d7-8e0a-ee3cb21faea2 |
| operating_status | ONLINE |
| http_version | None |
| domain_name | None |
| tags | |
+---------------------+--------------------------------------+
Example
Delete Health Monitoring
You can delete a health monitor directly from the Monitoring Tab in the pools detail view by clicking Reset Monitoring and Start over
You can also delete monitors by clicking the icon in the Health Monitor list
You can delete a health monitor directly from the Monitoring Tab in the pools detail view by clicking Reset Monitoring and Start over
You can also delete monitors by clicking the icon in the Health Monitor list
Usage
openstack loadbalancer healthmonitor delete <HEALTHMONITOR_ID or HEALTHMONITOR_NAME>
openstack loadbalancer healthmonitor delete <HEALTHMONITOR_ID or HEALTHMONITOR_NAME>
Example
openstack loadbalancer healthmonitor list
+--------------------------------------+------------+----------------------------------+------+----------------+
| id | name | project_id | type | admin_state_up |
+--------------------------------------+------------+----------------------------------+------+----------------+
| d7f87967-ab10-40d7-8e0a-ee3cb21faea2 | http-hm.06 | 0c12ce74a0084c0b8fef8e15d4a3377d | HTTP | True |
| bc00e8f6-e8b0-4467-97ac-834ea3d6edc9 | | 0c12ce74a0084c0b8fef8e15d4a3377d | PING | True |
+--------------------------------------+------------+----------------------------------+------+----------------+
openstack loadbalancer healthmonitor delete bc00e8f6-e8b0-4467-97ac-834ea3d6edc9
openstack loadbalancer healthmonitor list
+--------------------------------------+------------+----------------------------------+------+----------------+
| id | name | project_id | type | admin_state_up |
+--------------------------------------+------------+----------------------------------+------+----------------+
| d7f87967-ab10-40d7-8e0a-ee3cb21faea2 | http-hm.06 | 0c12ce74a0084c0b8fef8e15d4a3377d | HTTP | True |
| bc00e8f6-e8b0-4467-97ac-834ea3d6edc9 | | 0c12ce74a0084c0b8fef8e15d4a3377d | PING | True |
+--------------------------------------+------------+----------------------------------+------+----------------+
openstack loadbalancer healthmonitor delete bc00e8f6-e8b0-4467-97ac-834ea3d6edc9
Output
openstack loadbalancer healthmonitor list
+--------------------------------------+------------+----------------------------------+------+----------------+
| id | name | project_id | type | admin_state_up |
+--------------------------------------+------------+----------------------------------+------+----------------+
| d7f87967-ab10-40d7-8e0a-ee3cb21faea2 | http-hm.06 | 0c12ce74a0084c0b8fef8e15d4a3377d | HTTP | True |
+--------------------------------------+------------+----------------------------------+------+----------------+
openstack loadbalancer healthmonitor list
+--------------------------------------+------------+----------------------------------+------+----------------+
| id | name | project_id | type | admin_state_up |
+--------------------------------------+------------+----------------------------------+------+----------------+
| d7f87967-ab10-40d7-8e0a-ee3cb21faea2 | http-hm.06 | 0c12ce74a0084c0b8fef8e15d4a3377d | HTTP | True |
+--------------------------------------+------------+----------------------------------+------+----------------+
Example
States
Status
activeThe entity was provisioned successfully
activeThe entity was provisioned successfully
deleteThe entity has been successfully deleted
errorProvisioning failed
pending_createThe entity is being created
pending_updateThe entity is being updated
pending_delete
The entity is being deleted.
Resource States (Provisioning)
activeThe entity was provisioned successfully
activeThe entity was provisioned successfully.
deleteThe entity has been successfully deleted.
errorProvisioning failed.
pending_createThe entity is being created.
pending_updateThe entity is being updated.
pending_deleteThe entity is being deleted.
